  9. Exhaust Fan, 12 In, 1286 CFM
Shop All Exhaust and Supply Fan Accessories
Dayton

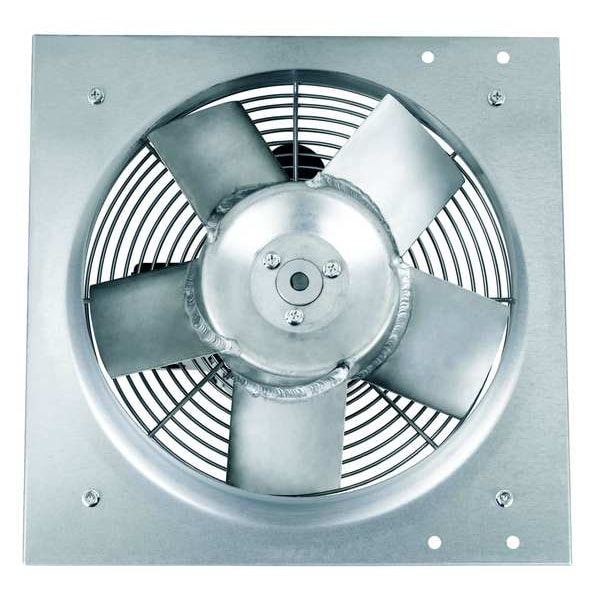

Exhaust Fan, 12 In, 1286 CFM

product price: $485.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Phase 1
  • Type Heavy Duty Direct Drive
  • Watts 186 W
  • CFM @ 0.375-In. SP 1,049 cfm
  • For Use With General Ventilation Applications
See all product information

Product Information

Dimensions

Flange Width (In.) 1 in
Outside Dia. (In.) 16 in
Dimension D (In.) 12 1/4 in
Blade Dia. 12 in
Venturi Depth (In.) 2 1/2 in
Inside Dia. (In.) 12 3/8 in
Width (In.) 16 in
Dimension B (In.) 7 in
Height (In.) 16 in
Dimension A (In.) 16 in
Dimension C (In.) 2 1/2 in
Max. Depth (In.) 9 1/2 in
Venturi Clearance Dia. (In.) 12 3/8 in
Overall Width 16 in
Overall Height 16 in
Venturi Depth 2 1/2 in
Flange Width 1 in
For Cut-Out Diameter 12 1/2 in
Overall Depth 9 1/2 in
Venturi Diameter 12 1/2 in
Duct Diameter 12 1/4 in
Blade Diameter 12 in
Overall Diameter 16 in

Details

Item Exhaust Fan
Phase 1
Type Heavy Duty Direct Drive
Watts 186 W
CFM @ 0.375-In. SP 1,049 cfm
For Use With General Ventilation Applications
Propeller Material Aluminum
Motor Insulation Class B
Frame Material Steel
CFM @ 0.000-In. SP 1,450 cfm
CFM @ 0.250-In. SP 1,219 cfm
Aluminum Wall Shutter No. 4C556
Motor RPM 1,772 RPM
Motor Enclosure Totally Enclosed Air Over
Drive Package Included No
Voltage 115/230
Number of Blades 5
Frame Finish Galvanized
Bearing Type Ball
Wire Guard Finish Zinc Plated
Sones @ 0.000-In. SP @ 5 Ft. 11.7
Speed Control No
Full Load Amps 2.8/1.5
Guard Material Steel
Fan Voltage 115/230V AC
CFM @ 0.125-In. SP 1,346 cfm
Max. Ambient Temp. (F) 104 Degrees F
Sones @ 0.125-In. SP @ 5 Ft. 11.6
Exhaust/Supply Fan Motor HP 1/4 hp
Exhaust/Supply Fan Item Exhaust Fan
Fiberglass Wall Shutter No. 5C211
CFM @ 0.500-In. SP 555 cfm
Galvanized Wall Shutter No. 1C742
Mounting Position Vertical
Agency Compliance UL and cUL Listed, AMCA
Hz 60
Standards AMCA, UL and cUL Listed
Exhaust Airflow @ 0.000 in SP 1,450 cfm
Method of Construction Stamped
Motor Speed 1,772 RPM
Maximum Ambient Operating Temperature 104 Degrees F
Nameplate Voltage 115/230V AC
Ventilation Type Exhaust
Fan Style Panel
Assembled Assembled
Includes Motor Yes
Noise Level @ 0.125 in SP @ 5 ft 12 sones
Exhaust Airflow @ 0.500 in SP 555 cfm
Exhaust Airflow @ 0.250 in SP 1,219 cfm
Noise Level @ 0.000 in SP @ 5 ft 11.7 sones
Guard Finish Zinc Plated
Electrical Connection Hardwired
Number of Speeds 1
Duct Shape Round
Exhaust Airflow @ 0.100 in SP 1,346 cfm
Maximum Noise Level 11.7 sones
Includes Dehumidistat No
Blade Material Aluminum
Guard Type Intake
Wattage 190 W, 200 W
Motor Horsepower 1/4 hp
Drive Type Direct Drive
Speed Controllable No
Vent Design Ductless
Exhaust Airflow @ 0.375 in SP 1,049 cfm
Exhaust Airflow @ 0.125 in SP 1,346 cfm

Description

Exhaust Fan, Assembled Assembled, Blade Diameter 12 in, Blade Material Aluminum, Drive Type Direct Drive, Duct Diameter 12 1/4 in, Exhaust Airflow @ 0.000 in SP 1,450 cfm, Frame Finish Galvanized, Frame Material Steel, Guard Finish Zinc Plated, Guard Material Steel, Guard Type Intake, Includes Dehumidistat No, Maximum Noise Level 11.7 sones
