  6. Floor Drill Press, Belt Drive, 1 hp, 115V AC V, 15 3/4 in Swing, 16 Speed

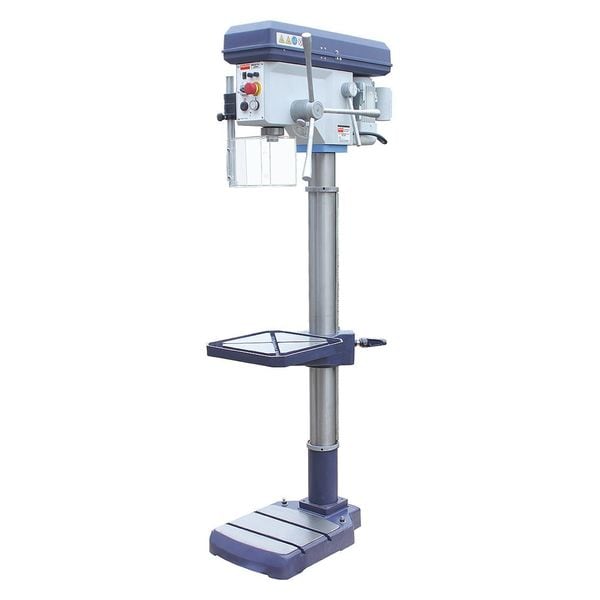

Dayton Floor Drill Press, Belt Drive, 1 hp, 115V AC V, 15 3/4 in Swing, 16 Speed 53UG98 - main

Floor Drill Press, Belt Drive, 1 hp, 115V AC V, 15 3/4 in Swing, 16 Speed

  • Mfr # 53UG98

  • Zoro # G9536095

product price:  $3,787.99
/ea
Item requires special delivery charges. A $370.00 per item surcharge will be applied.

Key Features

Drive Type
Belt
Swing
15 3/4 in
Voltage
115V AC
Motor HP
1 hp
Chuck Size
5/8 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
53UG98
Zoro #
G9536095
UPC #
00194484303860
Country of Origin
China

Dimensions

Chuck Size
5/8 in
Table Slot Size
1/2 in
Quill Dia.
2 in
Overall Depth
27 1/2 in
Base Size
12-1/2 in x 12-1/2 in
Overall Width
17 3/4 in
Overall Height
67 3/4 in
Column Dia.
3 3/8 in
Base Height
4 in
Base Length
12 1/2 in
Maximum Spindle-to-Table Height
33 7/8 in
Maximum Overall Height
67 3/4 in
Maximum Spindle-to-Base Height
50 1/4 in
Table Length
14 1/8 in
Column Diameter
3 5/8 in
Table Width
13 3/4 in
Quill Diameter
2 in

Details

Item
Floor Drill Press
Drive Type
Belt
Swing
15 3/4 in
Voltage
115V AC
Motor HP
1 hp
Number of Speeds
16
Capacity Steel
1 in
Spindle Speed
145 to 4800 rpm
Drilling Capacity Wood
Not Specified
Spindle Taper
3MT
Tilting Angle
Non-Tilting
Max. Spindle To Base
50 1/4 in
Includes
Chuck and Arbor, Forward and Reverse Switch, Halogen Work Light, Safety Drill Guard, Tool Ejector
Table Work Surface
12-9/16 in x 12-9/16 in
Corded/Cordless
Corded
Number of T-Slots
4
Spindle to Table
33 3/4 in
Power Down Feed Included
No
Capacity Cast Iron
1 1/2 in
Amps AC
15.0
Spindle Travel
4 1/4 in
Phase
Single-Phase
Corded/Banded
Corded
Hz
60
Application
Production Drill Press
Drill Press Type
Floor Stand
Number of Spindle Speeds
16
Reversible
Yes
Table Shape
Rectangular
Minimum Spindle Speed
262 RPM
Chuck Capacity
5/8 in
Speed Adjustment
Step Pulley
Table Slot
Yes
Chuck Style
Keyed
Number of Pieces
8
Spindle-to-Column Distance
7 7/8 in
Horsepower
1 hp
Current
10 A
Speed Range
262 to 4075 RPM
Power Source
Corded
Coolant System
No
Drill Press Application
Boring, Countersinking, Drilling, Reaming, Tapping
Drilling Capacity in Steel
1 in
Speed Control
Fixed
Guard Included
Yes
Maximum Spindle Speed
4,075 RPM
Primary Material Application
Metal

Description

Floor Drill Press, Primary Material Application Metal, Power Down Feed Included No, Drill Press Type Floor Stand, Drill Press Application Boring, Countersinking, Drilling, Reaming, Tapping, Speed Control Fixed, Speed Adjustment Step Pulley, Swing 15 3/4 in, Spindle-to-Column Distance 7 7/8 in, Horsepower 1 hp, Voltage 120V AC, Spindle Taper JT3, Number of Speeds 16, Chuck Size 5/8 in, Chuck Style Keyed, Guard Included Yes, Coolant System No, Quill Diameter 2 in, Drilling Capacity in Steel 1 in
