  9. Flowmeter, Mechanical, 32 GPM, 1 In FNPT

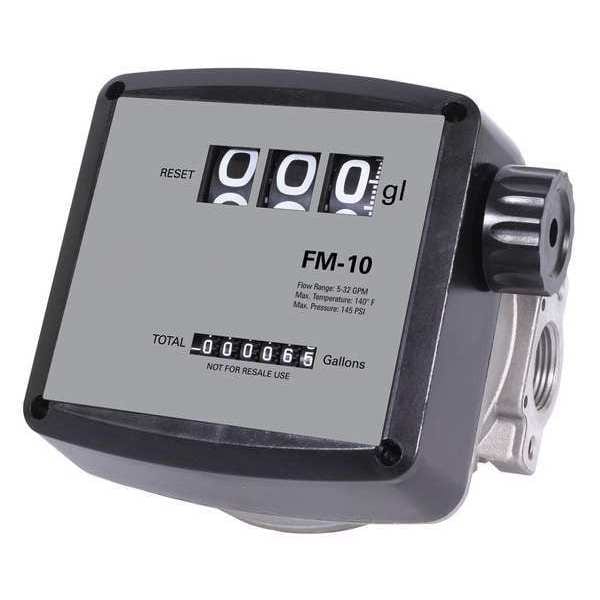

Dayton Flowmeter, Mechanical, 32 GPM, 1 In FNPT 12F730 - main

Flowmeter, Mechanical, 32 GPM, 1 In FNPT

  • Mfr # 12F730

  • Zoro # G4962937

product price: $376.99
/ea
Free Shipping & Returns

Key Features

Type
Mechanical
Housing Material
Aluminum
For Pipe Size
1 in
Flow Material
Biodiesel, Diesel, Low to Medium Viscosity Oils
Connection Size
1 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
12F730
Zoro #
G4962937
UPC #
190735114704
Country of Origin
India

Dimensions

For Pipe Size
1 in
Connection Size
1 in
Connection Size (In.)
1 FNPT
Length
7 in
Height (In.)
5-1/8
Width (In.)
6"
Manufacturers Warranty Length
1 yr
Length (In.)
7"
Height
5 1/8 in
Width
6 in
Overall Width
6 in
Manufacturer Warranty Length
1 yr
Overall Length
7 in
Overall Height
5.1 in

Details

Item
Mechanical Flowmeter
Type
Mechanical
Housing Material
Aluminum
Flow Material
Biodiesel, Diesel, Low to Medium Viscosity Oils
Connection Type
FNPT
Max. Pressure
145 psi
Max. Viscosity
9,400 SUS
Wetted Materials
Aluminum, Buthil Teraphathalate, Nitirle Rubber
Flow Range
5 to 32 gpm
Fluid Temp. Range
-10 Degrees to 140 Degrees F
Fitting
1 in FNPT
GPM Max.
32 gpm
Max. Viscosity (SSU)
9400
Application
For use with Diesel , Bio Diesel & light oils in gravity feed applications or use with Electric Fuel Pumps
Resetable Cumulative Totalizer
99.9 gal in 1/10 gal Increments
Master Totalizer
99,999.9 gal
Display
Mechanical Register with Large Easy-to-read Numbers
Temp.
140 Degrees F
Accuracy (%)
+/-1
Seal Material
Buna-N
Max. Temp. (F)
140
Flow Range (LPM)
20 to 120
Pressure Drop - 100% Flow (PSI)
3.0 psi
Flow Range (GPM)
5 to 32
Max. Pressure (PSI)
145
Thread
1 in FNPT
Chamber Material
Buthil Tereftalat
Display Type
Mechanical
Product Type
Mechanical Flowmeter
Accuracy
+/-1%
Compatible Flow Material
Diesel, Oils
Flow Rate - Minimum
5 gpm
Media Temperature - Minimum
-10 Degrees F
Wetted Material
Aluminum, PBT, Buna-N
Viscosity - Maximum
9,400 SUS
Media Temperature - Maximum
140 Degrees F
Flow Rate - Maximum
32 gpm
Operating Pressure - Maximum
145 psi

Description

Mechanical Flowmeter, Product Type Mechanical Flowmeter, Accuracy +/-1 Percent, Connection Size 1 in, Connection Type FNPT, Compatible Flow Material Diesel, Oils, Media Temperature - Maximum 140 Degrees F, Media Temperature - Minimum -10 Degrees F, Viscosity - Maximum 9,400 SUS, Housing Material Aluminum, Seal Material Buna-N, Wetted Material Aluminum, PBT, Buna-N, Display Type Mechanical, Flow Rate - Maximum 32 gpm, Flow Rate - Minimum 5 gpm, Operating Pressure - Maximum 145 psi

Restrictions

WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
