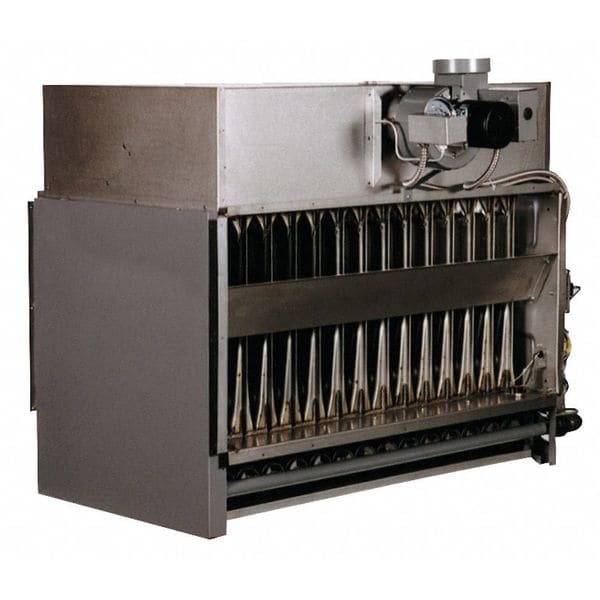

Gas-Fired Duct Furnace, Natural Gas, Power Vent Type, Fan Forced

  • Mfr # 6RJX8

  • Zoro # G3328775

product price:
$
4,758.99
/ea
Additional $200.00 delivery surcharge applies per item.
See details

Key Features

Gas Type
NG
BtuH Input
400,000
BtuH Output
320,000
Ignition Type
Direct Spark
Air Flow
9877 cfm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
6RJX8
Zoro #
G3328775
UPC #
190735371282
Country of Origin
United States

Dimensions

Height
37 3/4 in
Width
48 1/8 in
Depth
37 in
Burner Air Inlet Size
6 in
Manufacturers Warranty Length
1 yr
Indoor Air Discharge Height
19 in
Indoor Air Discharge Width
45 3/4 in
Installation Height
8 ft
Flue Dia.
6 in
Overall Height
37 3/4 in
Overall Width
48 1/8 in
Gas Connection Size
3/4 in
Mounting Height
8 ft
Overall Depth
37 in
Flue Diameter
6 in

Details

Item
Gas-Fired Duct Furnace
Gas Type
NG
BtuH Input
400,000
BtuH Output
320,000
Ignition Type
Direct Spark
Air Flow
9877 cfm
Heater Voltage
115 V AC
Max. External SP
0.9" WC
Service Access Location
Side
CFM @ 65(F) Rise
4,500 cfm
CFM @ 80(F) Rise
3,600 cfm
Standards
ETL Certified
Hz
60
Ignition System
Direct Spark
Gas Connection
3/4 in
Full Load Amps
1.9 A
Air Temp. Rise
30 Degrees F
Primary Heat Exchanger Material
409 Stainless Steel
Vent Type
Power
Includes
Additional Safety Features of Fan Time Delay, Air Flow Prove Switch, and Terminal Block Wiring
Features
Clamshell Style Heat Exchanger
Furnace Type
Power Vented
Gas Connection Type
Male NPT
Heating Method
Fan Forced
Required Air Flow
3,704 cfm
Air Flow @ 80(F) Rise
3,600 cfm
Thermostat Included
Thermostat Not Included
Heating Capacity Input
400,000 BtuH
Combustion Type
Open Combustion
Furnace Type, Primary Heat Exchanger Material
Power Vented, 409 Stainless Steel
Venting
Vented
Air Flow @ 65(F) Rise
4,500 cfm
Frequency
60 Hz
Fuel Type
Natural Gas
Heating Capacity Output
320,000 BtuH
Maximum Amperage
1.9 A
Air Temperature Rise
30 Degrees F
Heat Exchanger Gauge
20 ga

Description

Gas-Fired Duct Furnace, Furnace Type Power Vented, Heating Capacity Input 400,000 BtuH, Heating Capacity Output 320,000 BtuH, Air Temperature Rise 30 Degrees F, Required Air Flow 3,704 cfm, Service Access Location Side, Overall Height 37 3/4 in, Overall Width 48 1/8 in, Overall Depth 37 in, Gas Connection Size 3/4 in, Gas Connection Type Male NPT, Air Flow 9877 cfm, Air Flow @ 65(F) Rise 4,500 cfm, Air Flow @ 80(F) Rise 3,600 cfm, Burner Air Inlet Size 6 in, Combustion Type Open Combustion
