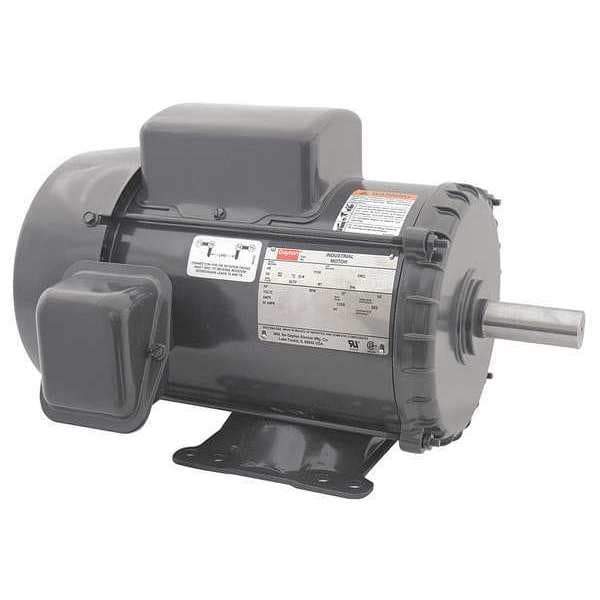

GP Mtr, CSCR, TEFC, 5 HP, 3540 rpm, 184T
  • Zoro #: G0252463
  • Mfr #: 6K146
$871.68
  • Motor Bearings: Ball
  • Manufacturers Warranty Length: 1 yr.
  • Shaft Length: 2-7/8"
See full product details
This item ships free.

Dayton #6K146 Specifications

  • Zoro #: G0252463
  • Mfr #: 6K146
Motor Bearings: Ball Manufacturers Warranty Length: 1 yr.
Shaft Length: 2-7/8" Motor Frame Material: Steel
Nameplate RPM: 3540 Motor Mounting Position: All Angle
Nominal Efficiency: 82.2% Ins. Class: F
Length Less Shaft: 14-1/2" Shaft Dia.: 1-1/8"
Standards: UL Recognized (E47479), CSA Certified (258525) Motor Enclosure Design: Totally Enclosed Fan-Cooled
Motor Shaft Rotation: CW/CCW Motor Application: General Application
Overall Length: 17-11/32" HP: 5
RPM Range: 3001-3600 Footnotes: 24
Duty: Continuous Phase: 1
No. of Speeds: 1 Item: General Purpose Motor
Hz: 60 Voltage: 230
RPM Group: 3001-3600 Motor Service Factor: 1.15
Motor Design: Capacitor-Start/Run Voltage Compatibility: 230, 240, 115/230, 120/240
Frame Material: Steel Frame: 184T
Max. Ambient Temp.: 40 Degrees C Full Load Amps: 19.6
Motor Shaft Design: Keyed Motor Thermal Protection: None
Motor Efficiency Group: Energy Efficient Motor Mounting Type: Rigid Base
Country of Origin (subject to change): Multiple
Feedback Help us improve our product information

Description

General Purpose Motor, Capacitor-Start/Run, Totally Enclosed Fan-Cooled, 5 HP, Nameplate RPM 3540, 184T Frame, Voltage 230, 60 Hz, 1 Phase, 19.6 Full Load Amps, No. of Speeds 1, Motor Mounting Type Rigid Base, Motor Mounting Position All Angle, Motor Thermal Protection None, Ins. Class F, 1.15 Motor Service Factor, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Overall Length 17-11/32 In., Motor Shaft Design Keyed
