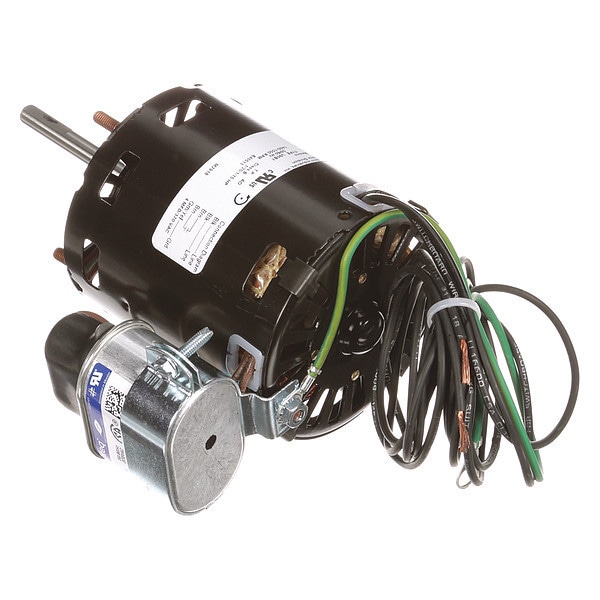

Motor, 1/20, 1/15 HP, OEM Replacement Brand: Heatcraft Replacement For: 25309101

  • Mfr # D1123

  • Zoro # G4334499

product price:  $147.99
/ea
Free Shipping & Returns

Key Features

Frame
3.3
HP
1/20, 1/15 HP
Motor Application
OEM Replacement
Motor Design
Permanent Split Capacitor
Motor Enclosure Design
Open Air-Over
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
D1123
Zoro #
G4334499
UPC #
815585028413
Country of Origin
Mexico

Dimensions

Shaft Dia.
0.313"
Shaft Length
2.64"
Length Less Shaft
4 1/16 in
Bolt Circle Dia.
2-13/16"
Body Dia.
3.3"
Manufacturers Warranty Length
1 yr
Overall Length
6.7"
Stud Size
#10-32
Frame Size
3.3
Mounting Stud Thread Size
#10-32
Bolt Circle Diameter
2 13/16 in
Shaft Diameter
5/16 in
Body Diameter
3.4 in
Wire Rope Length
6 11/16 in

Details

Frame
3.3
HP
1/20, 1/15 HP
Item
Motor
Motor Application
OEM Replacement
Motor Design
Permanent Split Capacitor
Motor Enclosure Design
Open Air-Over
Motor Mounting Type
Extended Studs
Motor Shaft Rotation
Counterclockwise Shaft End
Motor Sub Application
Condenser Fan Motor
Motor Thermal Protection
Automatic
Nameplate RPM
1550/1400 rpm
No. of Speeds
1
Number of Shafts
1
OEM Replacement Brand
Heatcraft
Phase
1
RPM Range
1301-1400
Voltage
208-230V
Motor Bearings
Sleeve
Replacement For
25309101
Ins. Class
B
Max. Ambient Temp.
40 Degrees C
Duty
Air Over
Full Load Amps
0.4/0.5A
Capacitor Required
Included
Standards
UL Recognized
Motor Shaft Design
Flat
Hz
60 Hz
Motor Service Factor
1.00
Application
Fans and Blowers
Mounting Stud Pattern
4 in x 4 in
Voltage Compatibility
115/208-230V AC, 208-230V AC, 208-240V AC
Usable @ 200V
Not Usable at 200V
Weight
4 lb
Usable @ 208V
Usable at 208V
Motor Frame Material
Steel
Number of Speeds
1
Bearing Type
Sleeve
Product Type
Condenser Fan Motor
Insulation Class
B
Full Load Current @ 60 Hz
0.40/0.50 A
Ambient Temperature - Maximum
40 Degrees C
Frame Material
Steel
Compatible Brand
Heatcraft
Nameplate Service Factor @ 60 Hz
1
Motor Enclosure Type
Open Air Over
Compatible Manufacturer Part Number
25309101
Shaft Design
Flat
Sub Application
Condenser Fan

Description

Condenser Fan Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/15 hp, 1/20 hp HP, Nameplate RPM 1,550/1,400 RPM, No. of Speeds 1, Voltage 208-230V AC, Full Load Amps 0.40/0.50 A, 3.3 Frame, OEM Replacement Brand Heatcraft, Replacement For 25309101, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60/50 Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CCWSE
