Dayton

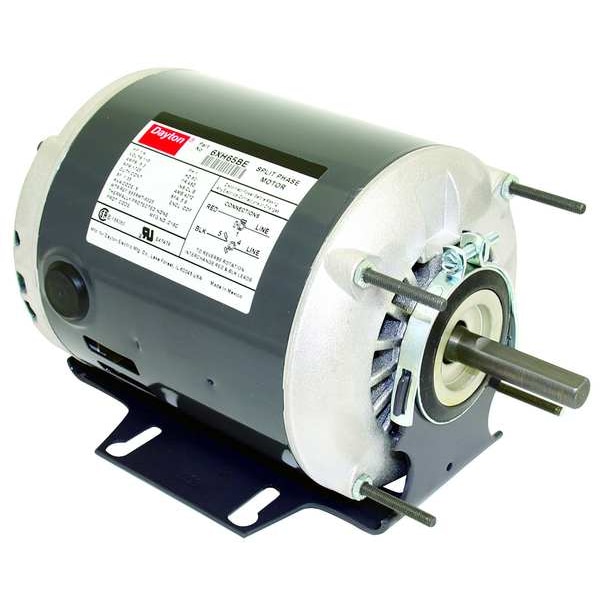

GP Mtr, Split Ph, 1/4 HP, 1725 rpm, 48Z

product price: $164.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Voltage 115V AC
  • Overall Length 9 13/16 in
  • Shaft Dia. 1/2 in
  • Motor Service Factor 1.35
  • No. of Speeds 1
See all product information

Product Information

Dimensions

Overall Length 9 13/16 in
Shaft Dia. 1/2 in
Shaft Length 1 7/8 in
Length Less Shaft 7 15/16 in
Manufacturers Warranty Length 1 yr

Details

Voltage 115V AC
Motor Service Factor 1.35
No. of Speeds 1
Motor Shaft Design Flat
Motor Enclosure Design Open Dripproof
RPM Group 1701-1800
Motor Mounting Type Cradle Base
Full Load Amps 5.3 A
Standards CSA (258501), UL (E47479)
Ins. Class B
Duty Continuous
Motor Bearings Ball
Motor Application General Application
Motor Design Split-Phase
Motor Thermal Protection None
Nominal Efficiency 52 %
RPM Range 1,701-1,800
Voltage Compatibility 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Footnotes 39
HP 1/4
Phase Single
Motor Shaft Rotation CW/CCW
Nameplate RPM 1,725
Frame Material Rolled steel
Frame 48Z
Max. Ambient Temp. 104 Degrees F
Hz 60 Hz
Item General Purpose Motor
Motor Frame Material Rolled Steel
Motor Efficiency Group Standard Efficient
Duty Cycle Continuous

Description

General Purpose Motor, Single Phase, Motor Design Split-Phase, 1/4 HP, Nameplate RPM 1,725, No. of Speeds 1, Voltage 115V AC, Full Load Amps 5.3 A, 48Z Frame, Hz 60 Hz, Motor Service Factor 1.35, Max. Ambient Temp. 104 Degrees F, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Open Dripproof, Motor Shaft Rotation CW/CCW, Motor Mounting Type Cradle Base, Motor Shaft Design Flat, Motor Frame Material Rolled Steel
