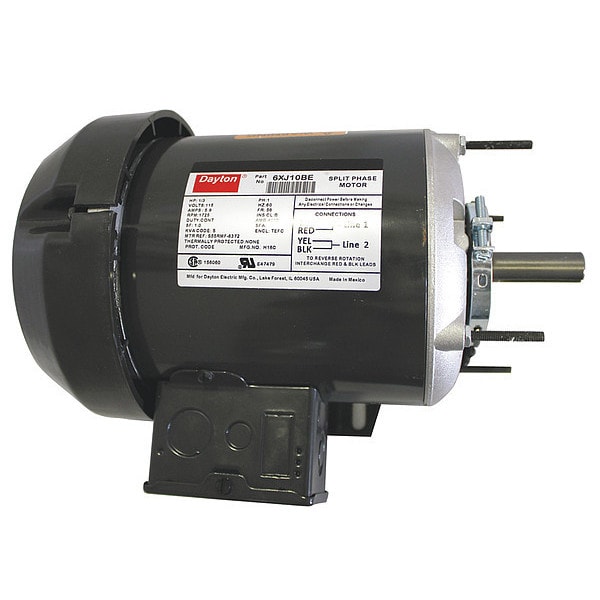

GP Mtr, Split Ph, TEFC, 1/3 HP, 1725 rpm, 56

DAYTON| Zoro #: G1755135| Mfr #: 6XJ10

$152.83 /ea

This item ships free. Details.Standard ground shipping.
Details:
Ins. Class: B
Voltage: 115
Motor Mounting Type: Cradle Base
Save 15%. Sign up for Z-mail.

Specifications

Zoro #: G1755135 Mfr #: 6XJ10
Ins. Class: BVoltage: 115
Motor Mounting Type: Cradle BaseVoltage Compatibility: 115, 120, 115/208-230, 115/230, 120/240
Frame: 56Phase: 1
Motor Thermal Protection: NoneRPM Group: 1701-1800
Motor Application: General ApplicationHP: 1/3
Item: General Purpose MotorMotor Shaft Rotation: CW/CCW
Motor Shaft Design: KeyedManufacturers Warranty Length: 1 yr.
Nameplate RPM: 1725Footnotes: 40
No. of Speeds: 1Frame Material: Rolled steel
Includes: Conduit BoxOverall Length: 11"
Duty: ContinuousMotor Service Factor: 1.00
Motor Enclosure Design: Totally Enclosed Fan-CooledMax. Ambient Temp.: 40 Degrees C
RPM Range: 1701-1800Hz: 60
Motor Bearings: BallShaft Dia.: 5/8"
Shaft Length: 1-7/8"Nominal Efficiency: 63.9%
Length Less Shaft: 9"Motor Design: Split-Phase
Motor Efficiency Group: Full Load Amps: 5.9
Standards: UL (E47479), CSA (156060)Country of Origin (subject to change): Mexico

Description

General Purpose Motor, Split-Phase, Totally Enclosed Fan-Cooled, 1/3 HP, Nameplate RPM 1725, 56 Frame, Voltage 115, 60 Hz, 1 Phase, 5.9 Full Load Amps, No. of Speeds 1, Motor Mounting Type Cradle Base, Motor Thermal Protection None, Ins. Class B, 1.00 Motor Service Factor, Ball Motor Bearings, Frame Material Rolled Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Overall Length 11 In., Motor Shaft Design Keyed
