Dayton

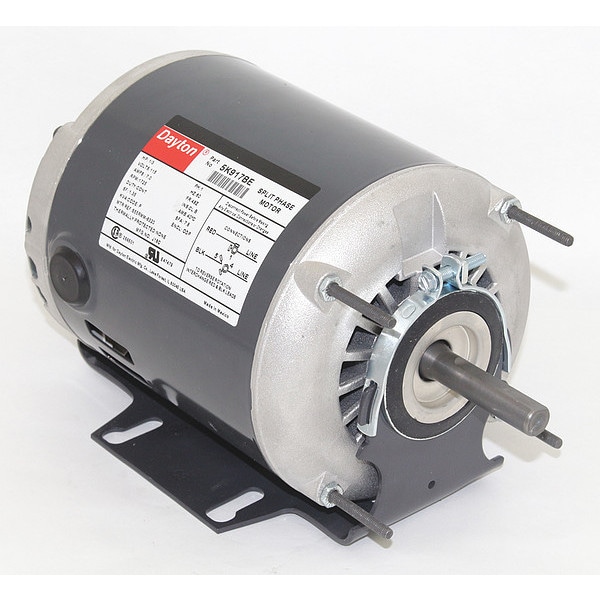

GP Mtr, Split Ph, ODP, 1/3 HP, 1725 rpm, 48

product price: $160.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Manufacturers Warranty Length 1 yr
  • RPM Range 1,701-1,800
  • Motor Service Factor 1.35
  • Motor Design Split-Phase
  • Ins. Class B
See all product information

Product Information

Dimensions

Manufacturers Warranty Length 1 yr
Overall Length 9 13/16 in
Length Less Shaft 9 15/16 in
Shaft Length 1 7/8 in
Shaft Dia. 1/2 in

Details

RPM Range 1,701-1,800
Motor Service Factor 1.35
Motor Design Split-Phase
Ins. Class B
No. of Speeds 1
Motor Shaft Design Flat
Full Load Amps 7.0 A
Voltage Compatibility 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
HP 1/3
Motor Bearings Ball
Frame Material Rolled steel
Phase Single
Max. Ambient Temp. 104 Degrees F
Motor Enclosure Design Open Dripproof
Frame 48Z
Hz 60 Hz
RPM Group 1701-1800
Nameplate RPM 1,725
Item General Purpose Motor
Motor Efficiency Group Standard Efficient
Motor Frame Material Rolled Steel
Motor Thermal Protection None
Motor Shaft Rotation CW/CCW
Motor Mounting Type Cradle Base
Nominal Efficiency 54.3 %
Duty Continuous
Motor Application General Application
Standards CSA (258501), UL (E47479)
Voltage 115V AC
Duty Cycle Continuous

Description

General Purpose Motor, Single Phase, Motor Design Split-Phase, 1/3 HP, Nameplate RPM 1,725, No. of Speeds 1, Voltage 115V AC, Full Load Amps 7.0 A, 48Z Frame, Hz 60 Hz, Motor Service Factor 1.35, Max. Ambient Temp. 104 Degrees F, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Open Dripproof, Motor Shaft Rotation CW/CCW, Motor Mounting Type Cradle Base, Motor Shaft Design Flat, Motor Frame Material Rolled Steel
