Dayton

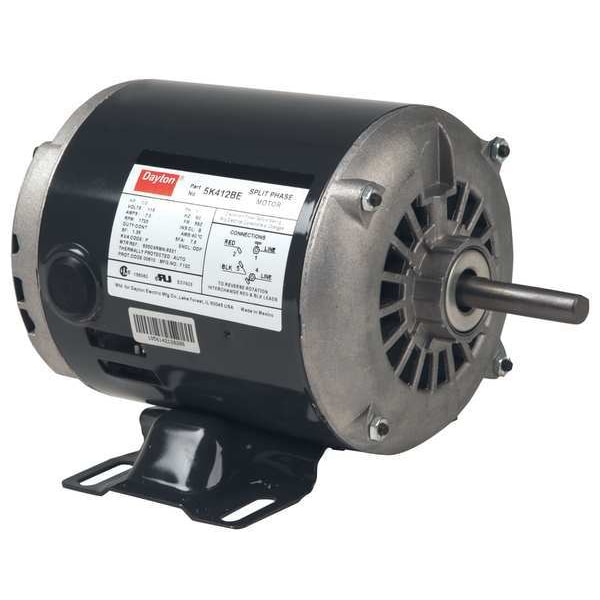

GP Mtr, Split Ph, ODP, 1/4 HP, 1725 rpm, 56Z

product price: $181.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Nameplate RPM 1,725
  • Hz 60 Hz
  • Frame Material Rolled steel
  • Overall Length 9 1/2 in
  • Standards CSA (156060), UL (E47479)
See all product information

Product Information

Dimensions

Overall Length 9 1/2 in
Length Less Shaft 7 1/2 in
Manufacturers Warranty Length 1 yr
Shaft Length 1 7/8 in
Shaft Dia. 1/2 in

Details

Nameplate RPM 1,725
Hz 60 Hz
Frame Material Rolled steel
Standards CSA (156060), UL (E47479)
Motor Shaft Design Flat
Motor Design Split-Phase
Item General Purpose Motor
Motor Mounting Type Rigid Base
Max. Ambient Temp. 104 Degrees F
Motor Enclosure Design Open Dripproof
Motor Thermal Protection None
Voltage Compatibility 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Frame 56Z
Full Load Amps 5.9 A
Voltage 115V AC
RPM Range 1,701-1,800
Motor Shaft Rotation CW/CCW
Phase Single
HP 1/4
Motor Service Factor 1.35
No. of Speeds 1
Motor Application General Application
Motor Efficiency Group Standard Efficient
Ins. Class B
Motor Frame Material Rolled Steel
RPM Group 1701-1800
Nominal Efficiency 52 %
Footnotes 31
Duty Continuous
Motor Bearings Ball
Duty Cycle Continuous

Description

General Purpose Motor, Single Phase, Motor Design Split-Phase, 1/4 HP, Nameplate RPM 1,725, No. of Speeds 1, Voltage 115V AC, Full Load Amps 5.9 A, 56Z Frame, Hz 60 Hz, Motor Service Factor 1.35, Max. Ambient Temp. 104 Degrees F, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Open Dripproof, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base, Motor Shaft Design Flat, Motor Frame Material Rolled Steel
