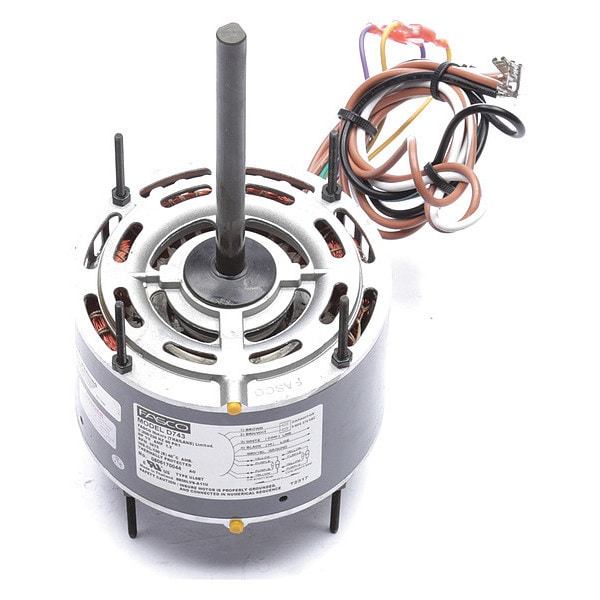

Condenser Fan Motor, 1/5 hp

  • Mfr # D743
  • Zoro # G6422775
product price:
$
176.99
/ea
Free Shipping & Returns

Key Features

Stud Quantity
4
Overall Length
11 1/4 in
Lead Length
27 in
Voltage
208V AC to 230V AC
Voltage Compatibility
115V AC, 208V AC to 230V AC, 200V AC to 230V AC, 208V AC to 220V AC, 440V AC, 208V AC to 230V AC, 277V AC, 208V AC to 230V AC, 440V AC, 208V AC to 230V AC, 460V AC, 208V AC to 230V AC, 208V AC to 240V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
D743
Zoro #
G6422775
UPC #
818508021317
Country of Origin
Thailand

Dimensions

Overall Length
11 1/4 in
Lead Length
27 in
Shaft Dia.
1/2 in
Manufacturers Warranty Length
1 yr
Length Less Shaft
3 3/4 in
Stud Size
#8-32
Body Dia.
5 5/8 in
Bolt Circle Dia.
5 1/4 in
Shaft Length
6 in
Body Diameter
5.6 in
Bolt Circle Diameter
5 1/4 in
Shaft Diameter
1/2 in
Mounting Stud Thread Size
#8-32
Frame Size
48
Wire Rope Length
11 1/4 in
Length
11 1/4 in

Details

Stud Quantity
4
Item
Condenser Fan Motor
Voltage
208V AC to 230V AC
Voltage Compatibility
115V AC, 208V AC to 230V AC, 200V AC to 230V AC, 208V AC to 220V AC, 440V AC, 208V AC to 230V AC, 277V AC, 208V AC to 230V AC, 440V AC, 208V AC to 230V AC, 460V AC, 208V AC to 230V AC, 208V AC to 240V AC
Ins. Class
B
Hz
60 Hz
Full Load Amps
1.2 A
Motor Enclosure Design
Open Dripproof
Phase
Single
Duty
Continuous
Motor Shaft Design
Double-Flat
Motor Mounting Position
All Angle
Motor Thermal Protection
Auto
Mounting Stud Pattern
3 11/16 in x 3 11/16 in
Features
Belly Band, Extended Studs Shaft End and Lead End, Thermally Protected
Motor Service Factor
1
Max. Ambient Temp.
40 Degrees C
Motor Bearings
Sleeve
Frame
48
No. of Speeds
1
HP
1/5
Motor Mounting Type
Stud
Standards
CSA Certified, UL Recognized
Application
Condenser Fan
RPM Range
1,001-1,100
Capacitor Required
Capacitor Not Included
Motor Design
Permanent Split Capacitor
Motor Shaft Rotation
CW/CCW
Motor Application
HVAC/R
Nominal Efficiency
62 %
Nameplate RPM
1,075
Motor Sub Application
Condenser Fan
Duty Cycle
Continuous
Weight
10 lb
Usable @ 208V
Usable at 208V
Usable @ 200V
Not Usable at 200V
Removable Base
Yes
Motor Frame Material
Steel
Output Watts
150 W
Includes
Removable Base
Motor Enclosure Type
Open Drip Proof
Frequency
60 Hz
Mounting Position
All Angle
Frame Material
Steel
Full Load Current @ 60 Hz
1.2 A
Number of Speeds
1
Drive Type
Direct Drive
Wattage
150 W
Nameplate Service Factor @ 60 Hz
1
Sub Application
Condenser Fan
Insulation Class
B
Shaft Design
Double Flat
Manufacturers Warranty
1 yr
Bearing Type
Sleeve
Product Type
Condenser Fan Motor
Ambient Temperature - Maximum
40 Degrees C

Description

Condenser Fan Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/5 hp HP, Nameplate RPM 1,075 RPM, No. of Speeds 1, Voltage 208-230V AC, 1.2 A Full Load Amps, 48 Frame, Output Watts 150 W, 60 Hz Hz, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Drip Proof, Motor Mounting Type Stud
