Dayton

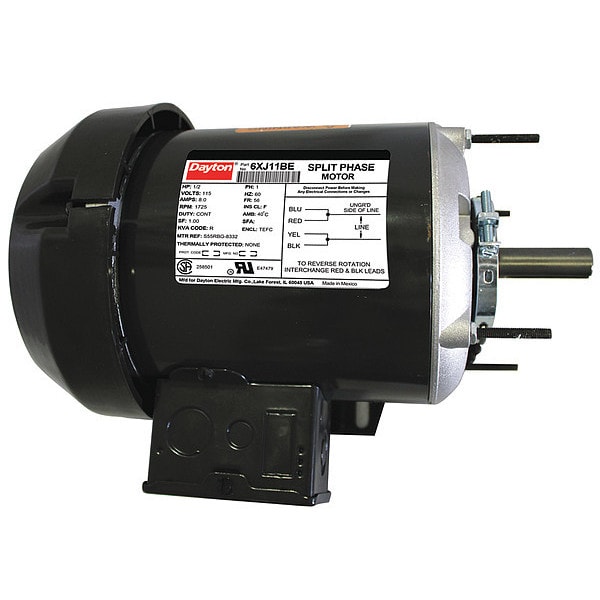

GP Mtr, Split Ph, TEFC, 1/2 HP, 1725 rpm, 56

product price: $255.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Manufacturers Warranty Length 1 yr
  • Hz 60 Hz
  • Standards CSA (156060), UL (E47479)
  • No. of Speeds 1
  • Duty Continuous
See all product information

Product Information

Dimensions

Manufacturers Warranty Length 1 yr
Length Less Shaft 9 1/2 in
Shaft Length 1 7/8 in
Overall Length 11 1/2 in
Shaft Dia. 5/8 in

Details

Hz 60 Hz
Standards CSA (156060), UL (E47479)
No. of Speeds 1
Duty Continuous
Motor Shaft Rotation CW/CCW
Frame Material Rolled steel
Motor Mounting Type Cradle Base
Max. Ambient Temp. 104 Degrees F
Ins. Class F
Motor Frame Material Rolled Steel
Phase Single
RPM Range 1,701-1,800
Includes Conduit Box
Motor Bearings Ball
Motor Thermal Protection None
Footnotes 40
Motor Shaft Design Keyed
Item General Purpose Motor
HP 1/2
Motor Application General Application
Nameplate RPM 1,725
Voltage 115V AC
Motor Efficiency Group Standard Efficient
Full Load Amps 8.0 A
Motor Service Factor 1
Motor Enclosure Design Totally Enclosed Fan-Cooled
Frame 56
Motor Design Split-Phase
Voltage Compatibility 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
RPM Group 1701-1800
Nominal Efficiency 63.9 %
Duty Cycle Continuous

Description

General Purpose Motor, Single Phase, Motor Design Split-Phase, 1/2 HP, Nameplate RPM 1,725, No. of Speeds 1, Voltage 115V AC, Full Load Amps 8.0 A, 56 Frame, Hz 60 Hz, Motor Service Factor 1, Max. Ambient Temp. 104 Degrees F, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Cradle Base, Motor Shaft Design Keyed, Motor Frame Material Rolled Steel
