  9. Hand Drum Pump, Cast Iron, 3/4In FNPT
Shop All Hand Drum Pumps
Dayton

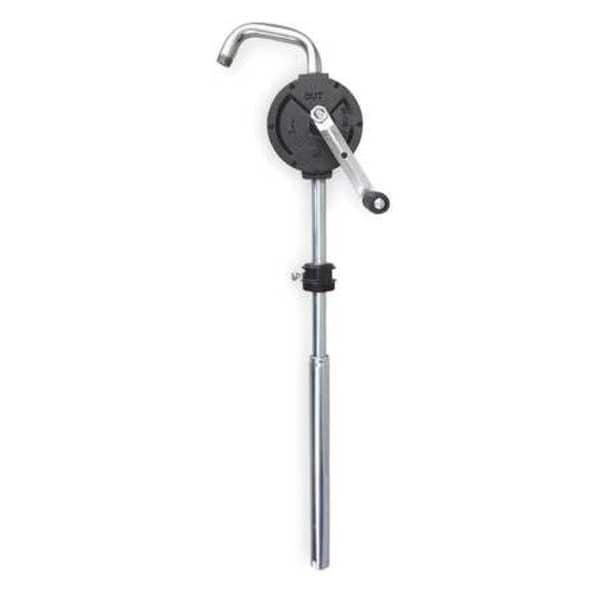

Hand Drum Pump, Cast Iron, 3/4In FNPT

product price: $148.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Suction Tube Length 18-3/16 in to 34-1/2 in
  • Action Type Rotary
  • For Media Type Automatic Transmission Fluid, Biodiesel, Brake Fluid, Diesel Fuel, Kerosene, Motor Oil
  • For Container Size 15 gal, 30 gal, 55 gal
  • Max. Flow Rate 10 gal per 120 strokes
See all product information

Product Information

Dimensions

Suction Tube Length 18-3/16 in to 34-1/2 in
For Container Size 15 gal, 30 gal, 55 gal
Discharge Tube Outlet ID Size 55/64"
Adapter Dia. 2"
Outlet Size 3/4" FNPT
Discharge Tube Outlet OD Size 1-3/64"
Overall Length 10-7/8"
Inlet Size 3/4" FNPT
Height 9-1/2"
Discharge Tube Length 7-31/64"
Suction Tube Outlet O.D. Size 1"
Bung Connection Dia. 2 in

Details

Action Type Rotary
For Media Type Automatic Transmission Fluid, Biodiesel, Brake Fluid, Diesel Fuel, Kerosene, Motor Oil
Max. Flow Rate 10 gal per 120 strokes
Max. Viscosity 2,000 SUS
Wetted Materials Acetal, Cast Iron, Graphite, Buna-N, Paper, Steel
Max. Fluid Temp. 250 Degrees F
Discharge Tube Outlet ID 7/8 in
Includes Bung & Discharge Spout, Telescopic Suction Tube
Suction Tube OD 1 in
Metered No
Discharge Tube Outlet OD 1 in
Includes Suction Tube Yes
Application Oil based Media, Diesel, Kerosene, Non Corrosive Media
Seal Material Graphite
Item Hand Operated Drum Pump
Max. Temp. 250 Degrees F
Features 1. Industry Standard for Rotary Pumps, These are By Far the Heaviest Duty, Ideal for Tough Outdoor Use in Extreme Weather Conditions, 2. Solid Cast Iron Construction, Fully CNC Machined to Close Tolerances, 3. Graphite Vanes are Self-Lubricating and Non-W
For Use With Diesel, Kerosene, Non Corrosive Media, Oil based Media
Pump Body Material Cast Iron
Adapter Type 2" Bung
Self-Priming Yes
Discharge Tubing Material Zinc Plated Steel
Housing Material Cast iron
Suction Tube Type Telescopic
Adapter Material Cast Iron
Max. Liquid Temp. 250 Degrees F
Ounces per Stroke 10 GPM @ 120 RPM
Type Rotary Action
Max. Head 10 ft.
Gasket Material Paper
Max. Pressure 10 psi
GPM 10 GPM @ 120 RPM
Housing Finish Powder Coated
Compatible Chemicals Automatic Transmission Fluid, Biodiesel, Brake Fluid, Diesel Fuel, Kerosene, Motor Oil
Max. Head - Pumps 10 ft
Includes Bung Adapter Yes
Housing Material - Pumps Cast Iron
Not Recommended Chemicals Antifreeze (Coolant), Deionized Water, Ethyl (Ethanol), Fertilizers, Fresh Water, Fungicides, Herbicides, Lithium Grease, Methyl Ethyl Ketone (MEK), Salt Water, Sodium Hypochlorite/Bleach (to 20%)
Includes Discharge Hose No
For Container Type Bucket, Drum, Pail
Includes Nozzle No
Includes Spout Yes
Power Source Hand Operated
Grease NT
Gear Lube NT

Description

Hand Operated Drum Pump, Self-Priming Yes, Metered No, Includes Discharge Hose No, Features 1. Industry Standard for Rotary Pumps, These are By Far the Heaviest Duty, Ideal for Tough Outdoor Use in Extreme Weather Conditions, 2. Solid Cast Iron Construction, Fully CNC Machined to Close Tolerances, 3. Graphite Vanes are Self-Lubricating and Non-W, Housing Finish Powder Coated, Seal Material Graphite, For Use With Diesel, Kerosene, Non Corrosive Media, Oil based Media
