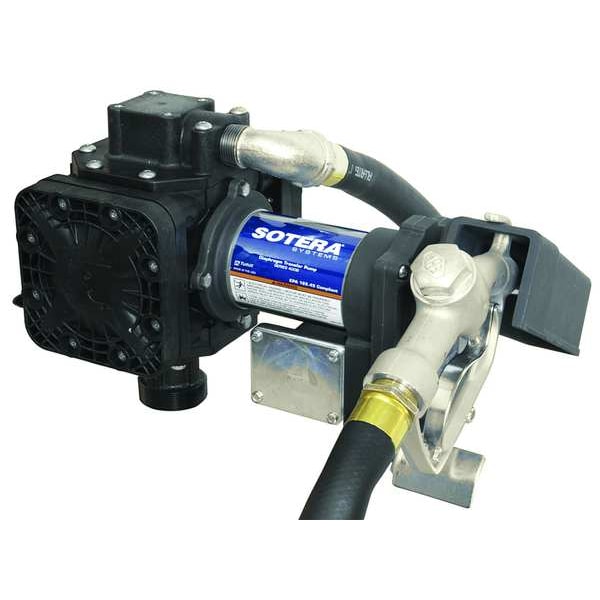

Oil Transfer Pump, 12 V DC, 13 gpm Max. Flow Rate , 1/4 hp HP, Glass Reinforced Polypropylene

  • Mfr # FR410B
  • Zoro # G0716493
product price:
$
1,145.99
/ea
Free Shipping & Returns

Key Features

Voltage
12V DC
Application
For Transferring Fluids Such As Ethylene Glycol, Diesel Fuel, Grease, Hydraulic Oil, Kerosene, Motor Oil, Water
HP
1/4 hp
Housing Material
glass filled polyprolyene
GPM
13 gpm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
FR410B
Zoro #
G0716493
UPC #
089404213131
Country of Origin
United States

Dimensions

Inlet Size
1" FNPT
Hose Length (Ft.)
12 ft
Manufacturers Warranty Length
2 yr
Power Cord Length (Ft.)
20 ft
Suction Tube Length (In.)
Telescoping 22 to 40
Cord Length
12 ft
Overall Length
14"
Hose Length
12 ft
Overall Width
8 3/4"
Overall Height
8 1/4"
Hose Outside Dia.
1 in
For Container Size
55 gal, 330 gal, 350 gal
Spout Discharge Size
1 in
Spout Length
6 in
Suction Tube Length
34 1/2 in
Hose Inside Diameter
1 in
Hose Outside Diameter
1 3/8 in
Adapter Connection Diameter
2 in
Wire Rope Length
14"
Length
14"
Fits Chest Size
Thermal Overload Protection

Details

Voltage
12V DC
Application
For Transferring Fluids Such As Ethylene Glycol, Diesel Fuel, Grease, Hydraulic Oil, Kerosene, Motor Oil, Water
HP
1/4 hp
Housing Material
glass filled polyprolyene
GPM
13 gpm
Seal Material
Buna-N
RPM
2,600 RPM
Pump Design
Hytrel Diaphragm
Self-Priming
Yes
Max. Viscosity
30 SUS
Item
Electric Drum Pump
Includes
Cable, Hose, Nozzle Boot
GPM Max.
13 gpm
Motor Type
Permanent Magnet
Amps
20 A
Type
Diaphragm
Max. Temp.
130 Degrees F
Max. Pressure (PSI)
15 psi
Suction Lift (Ft.)
Diesel 11, Water 10
Max. Viscosity (SSU)
15,000 SUS
Duty Cycle
30 Minutes On/30 Minutes Off
Hose Material
Buna Nitrile
Inlet
1 in FNPT
Nozzle Material
Aluminum
Metered
No
Features
Thermal Overload Protection
Agency Compliance
cULus
Motor RPM
2,600 RPM
Max. Fluid Temp.
130 Degrees F
Power Source
Corded Electric
Max. Flow Rate
13 gpm
For Media Type
Lubricating Fluid, Medium Viscosity Liquids, Oil
Pump Connection Type
NPT
Max. Head Pressure
15 psi
Hose Tube Material
Nitrile
Includes Nozzle
Yes
Nozzle Operation
Manual
Compatible Chemicals
Hydraulic Oil, Light Oil, Lubricating Fluid, Medium Viscosity Liquids, Oil
Discharge Connection Type
FNPT
Rated Voltage
12 V DC
Max. Outlet Pressure
15 psi
Mount Type
Bung
Includes Discharge Hose
Yes
Motor HP
1/4 hp
Nozzle Fluid Compatibility
Gasoline
Full Load Amps
20.0 A
Includes Suction Tube
Yes
For Container Type
Tank
Maximum Head
34 ft
Spout Material
Aluminum
Maximum Fluid Temperature
130 Degrees F
Suction Tube Material
Steel
Wetted Material
Buna-N/Filcon/Stainless Steel
Includes Follower Plate
No Follower Plate Included
Motor Speed
2,600 RPM
Chemical Compatibility
Hydraulic Oil, Oil
Standards
cULus
Includes Bung Adapter
Yes
Maximum Viscosity
30 SUS
Container Cover Type Included
No Cover Included
Maximum Head Pressure
15 psi
Hose Cover Material
Neoprene
Motor Horsepower
1/4 hp
Meter Type Included
No Meter Included
Full Load Current
20 A
Static Protection
No Grounding Line Included
Motor Enclosure Design
Totally Enclosed Non-Ventilated
Suction Tube ID
1 3/16 in
Suction Tube OD
1 5/16 in
Pump Connection OD
1 3/8 in
Container Type Included
Drum
Includes Spout
Yes
Maximum Outlet Pressure
15 psi
Adapter Connection Standard
MNPT
Pump Connection ID
1 in
Maximum Flow Rate
13 gpm
Variable Speed
No
Pump Technology
Diaphragm
Power Source - TS Only
Corded Electric
Power Source - old
Corded Electric

Description

Electric Drum Pump, Max. Head Pressure 15 psi, Max. Outlet Pressure 15 psi, Rated Voltage 12 V DC, Plug Type Not Applicable, Pump Connection ID 1 in, Suction Tube OD 1 5/16 in, Hose Length 12 ft, Suction Tube Length 34 1/2 in, Cord Length 12 ft, Includes Bung Adapter Yes, Nozzle Operation Manual, Power Source Corded Electric, Variable Speed No, Includes Discharge Hose Yes, Self-Priming Yes, Compatible Chemicals Hydraulic Oil, Light Oil, Lubricating Fluid, Medium Viscosity Liquids, Oil

Restrictions

Hazardous material
