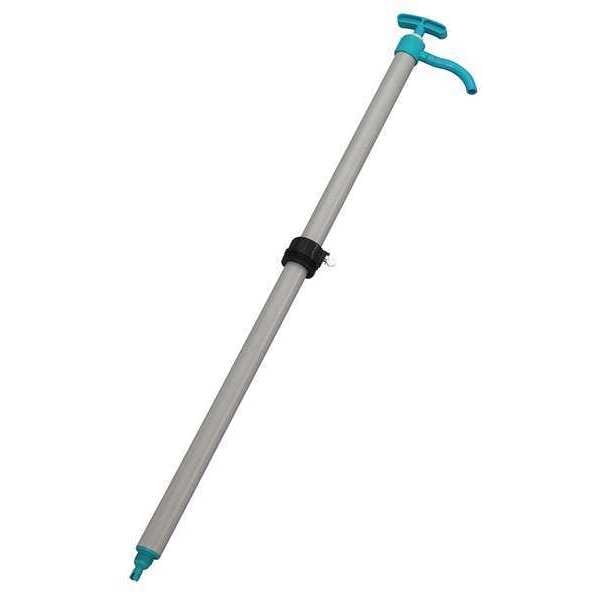

Hand Drum Pump, Piston, PVC, 11/16In OD
$25.92 /ea
Orders over $50.00 ship free. DetailsStandard ground shipping
Details:
Discharge Tube Outlet OD Size: 11/16"
Inlet Size: 1"
Adapter Type: 2" NPT Bung
Hand Operated Drum Pump, Action Type Piston, Pump Body Material PVC, Wetted Materials PVC, Viton, Glass, Seal Material Viton Packing, Discharge Tubing Material PVC, Piston Material PVC, For Use On 15, 30, and 55 gal. Drums, Max. Temp. 140 Degrees F, Ounces per Stroke 22 oz., Max. Viscosity 4000 SSU, Inlet Size 1 In., Outlet Size 11/16 In. OD, Discharge Tube Outlet ID Size 1/2 In., Discharge Tube Outlet OD Size 11/16 In., Discharge Tube Length 4-1/2 In., Suction Tube Length 38 In.
Technical Specifications
| Zoro #: G0400924 Mfr #: 4HA33 | |
| Discharge Tube Outlet OD Size: 11/16" | Inlet Size: 1" |
| Adapter Type: 2" NPT Bung | Max. Viscosity: 4000 SSU |
| Housing Material: PVC | Ounces per Stroke: 22 oz. |
| Discharge Tube Outlet ID Size: 1/2" | Suction Tube Outlet O.D. Size: 1-1/2" |
| Action Type: Piston | Adapter Material: Polypropylene |
| Discharge Tube Length: 4-1/2" | Outlet Size: 11/16" OD |
| Discharge Tubing Material: PVC | Features: Light Weight |
| Includes: Straight Horizontal Spout | Wetted Materials: PVC, Viton, Glass |
| Piston Material: PVC | Suction Tube Length: 38" |
| Self-Priming: Yes | Adapter Dia.: 2" |
| For Use With: Ammonium, Detergents, Most Acids, Oils, Rinse Additives, Soda Ash | Max. Liquid Temp.: 140 Degrees F |
| Item: Hand Operated Drum Pump | Country of Origin (subject to change): Taiwan |
Product Description
Hand Operated Drum Pump, Action Type Piston, Pump Body Material PVC, Wetted Materials PVC, Viton, Glass, Seal Material Viton Packing, Discharge Tubing Material PVC, Piston Material PVC, For Use On 15, 30, and 55 gal. Drums, Max. Temp. 140 Degrees F, Ounces per Stroke 22 oz., Max. Viscosity 4000 SSU, Inlet Size 1 In., Outlet Size 11/16 In. OD, Discharge Tube Outlet ID Size 1/2 In., Discharge Tube Outlet OD Size 11/16 In., Discharge Tube Length 4-1/2 In., Suction Tube Length 38 In.
Restrictions and Compliance
- *1 : California Proposition 65 : This product contains a chemical known to the State of California to cause birth defects or other reproductive harm.
- *2 : California Proposition 65 : This product contains a chemical known to the State of California to cause cancer.
