  8. Heavy Duty Limit Switch, Maintained, SPDT, 10A at 600V AC, Actuator Location: Side

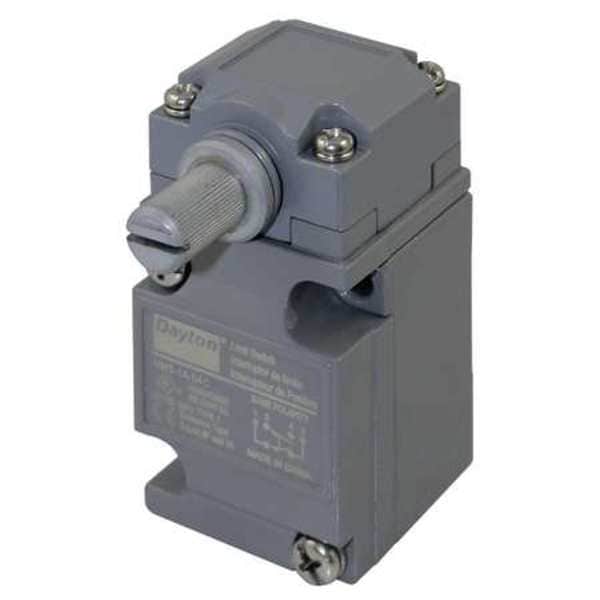

Dayton Heavy Duty Limit Switch, Maintained, SPDT, 10A at 600V AC, Actuator Location: Side 12T837 - main
Shop DAYTON

Heavy Duty Limit Switch, Maintained, SPDT, 10A at 600V AC, Actuator Location: Side

  • Mfr # 12T837

  • Zoro # G4029356

product price:  $154.99
/ea
Free Shipping & Returns

Key Features

Basic Actuator Style - Limit Switch
Rotary
Actuator Style - Limit Switch
Maintained
Contact Form- Switches
SPDT
Actuator Location - Limit Switch
Side
AC Contact Rating - Limit Switch
10A at 600V
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
12T837
Zoro #
G4029356
UPC #
190735115725
Country of Origin
China

Dimensions

Depth
2.52"
Body Depth - Limit Switch
1.74 in
Height
3.14"
Body Height - Limit Switch
2.46 in
Width
1.65"
Body Width - Limit Switch
1.65 in
Body Depth
1.74 in
Mounting Hole Diameter
0.2 in
Body Width
1.65 in
Body Height
2.46 in

Details

Item
Heavy Duty Limit Switch
Basic Actuator Style - Limit Switch
Rotary
Actuator Style - Limit Switch
Maintained
Contact Form- Switches
SPDT
Actuator Location - Limit Switch
Side
AC Contact Rating - Limit Switch
10A at 600V
DC Contact Rating - Limit Switch
10A at 600V
Body Style - Limit Switch
Miniature
Mounting - Limit Switch
Surface
Boot Sealed Actuator (Limit Switch)
No
Operating Force
56.66 in-oz
Boot Sealed Actuator - Limit Switch
No
Actuator Location (Limit Switch)
Side
Mounting Hole Pattern - Limit Switch
2 Hole Diagonal
Number of Poles
1
Travel
Maximum Pre-Travel N/A, Minimum Over-Travel N/A
Voltage Rating
600VAC/DC
Standards
CE, CSA, UL Listed
Contact Form
SPDT
Stem Thread - Limit Switch
No Stem
Operating Temp. Range
-20 Degrees to 185 Degrees F
Actuator Style
Rotary Lever
Amps
10
Electrical Connection
Screw Terminals
Body Style (Limit Switch)
Miniature
Movement
CCW, CW
IP Rating
IP67
AC Contact Rating
10 A @ 600 V
Mounting Hole Spacing - Limit Switch
1.46 in x 1.16 in
Series
Dayton
DC Contact Rating
10 A @ 600 V
Contact Form - Limit Switch
SPDT
Basic Actuator Style (Limit Switch)
Rotary
NEMA Rating
13, 3, 4, 4X, 6P
Actuator Location
Side
Wiring Entry
1/2 in NPT
Limit Switch Style
Heavy Duty Limit Switch
Mounting Hole - Limit Switch
(2) 0.20 in dia
Actuator Style (Limit Switch)
Maintained
Boot Sealed Actuator
No Boot Included
Operating Temperature - Maximum
185 Degrees F
Mounting Style
Surface
Operating Torque - Maximum
3.54 in-lb
Number of Mounting Holes
2
Directional Movement
CCW/CW
NEMA Enclosure Rating
13, 3, 4, 4X, 6P
Operating Temperature - Minimum
-20 Degrees F
Action
A
Mounting Hole Vertical Center to Center Distance
37 mm
Mounting Hole Horizontal Center to Center Distance
29 mm

Description

Limit Switch, Actuator Style - Limit Switch Maintained, Actuator Location - Limit Switch Side, AC Contact Rating - Limit Switch 10A @ 600V, DC Contact Rating - Limit Switch 10A @ 600V, Contact Form- Switches SPDT, Body Height - Limit Switch 2.46 in, Body Width - Limit Switch 1.65 in, Body Depth - Limit Switch 1.74 in, Boot Sealed Actuator - Limit Switch No, Body Style - Limit Switch Miniature, NEMA Rating 13, 3, 4, 4X, 6P, Mounting - Limit Switch Surface, Electrical Connection Screw Terminals
