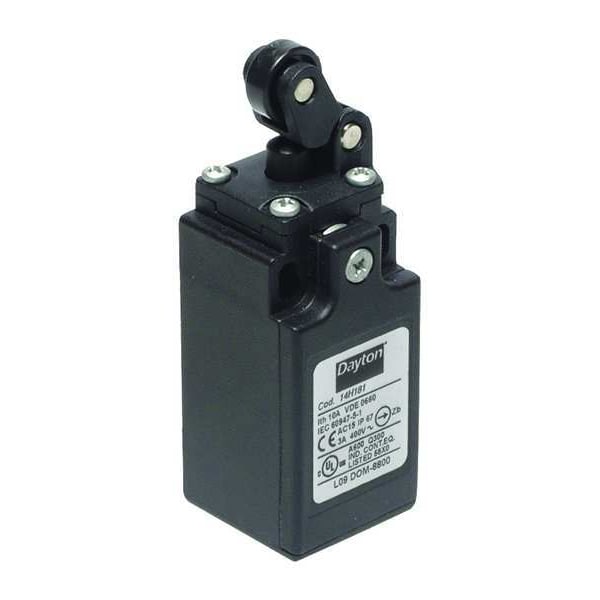

Limit Switch, Plunger, Roller Lever, 1NC/1NO, 10A at 480V AC, Actuator Location: Top

  • Mfr # 14H181

  • Zoro # G4327337

product price:  $43.29
/ea

Key Features

Basic Actuator Style - Limit Switch
Plunger
Actuator Style - Limit Switch
Plunger, Roller Lever
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Top
AC Contact Rating - Limit Switch
10A at 480V
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
14H181
Zoro #
G4327337
UPC #
190735128923
Country of Origin
Brazil

Dimensions

Actuator Length - Limit Switch
1.61 in
Body Width - Limit Switch
1.21 in
Roller Dia.
14.0 mm
Depth
1.22"
Body Depth - Limit Switch
1.21 in
Body Height - Limit Switch
2.46 in
Roller Width
0.22 in
Height
3.62"
Width
1.22"
Actuator Length
1.61"
Body Depth
1.21 in
Mounting Hole Diameter
0.16 in
Roller Diameter
0.55 in
Body Height
2.46 in
Body Width
1.21 in

Details

Item
Limit Switch
Basic Actuator Style - Limit Switch
Plunger
Actuator Style - Limit Switch
Plunger, Roller Lever
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Top
AC Contact Rating - Limit Switch
10A at 480V
DC Contact Rating - Limit Switch
Not Rated
Body Style - Limit Switch
Miniature
Mounting - Limit Switch
Surface
Actuator Style
Roller Lever Plunger
Actuator Location (Limit Switch)
Top
Movement
Horizontal
Boot Sealed Actuator - Limit Switch
No
Boot Sealed Actuator (Limit Switch)
No
Body Material
Thermoplastic
IP Rating
IP66
Travel
Maximum Pre-Travel N/A, Minimum Over-Travel N/A
Contact Form
1NO/1NC
Standards
CE, CSA, UL Listed
Mounting Hole Pattern - Limit Switch
2 Hole Horizontal
Operating Temp. Range
32 Degrees to 185 Degrees F
Wiring Entry
1/2 in NPT
Electrical Connection
14 NPT Conduit Wiring Entry
Series
Dayton
DC Contact Rating
Not Rated
Actuator Location
Top
Mounting Hole - Limit Switch
(2) 0.16 in dia
Body Style (Limit Switch)
Miniature
Amps
10
Contact Form - Limit Switch
1NC/1NO
Stem Thread - Limit Switch
No Stem
NEMA Rating
No Nema Rating
Actuator Style (Limit Switch)
Plunger, Roller Lever
Limit Switch Style
General Purpose Limit Switch
Operating Force
22 oz
Voltage Rating
480VAC
Mounting Hole Spacing - Limit Switch
0.87 in
Basic Actuator Style (Limit Switch)
Plunger
AC Contact Rating
10 A @ 480 V
Directional Movement
Linear
Mounting Hole Horizontal Center to Center Distance
22 mm
Operating Temperature - Minimum
32 Degrees F
Mounting Style
Surface
Boot Sealed Actuator
No Boot Included
Operating Temperature - Maximum
185 Degrees F
NEMA Enclosure Rating
No Enclosure
Operating Force - Maximum
22 ozf
Number of Mounting Holes
2

Description

Limit Switch, Actuator Style - Limit Switch Plunger, Roller Lever, Actuator Location - Limit Switch Top, AC Contact Rating - Limit Switch 10A @ 480V, DC Contact Rating - Limit Switch Not Rated, Contact Form- Switches 1NC/1NO, Actuator Length - Limit Switch 1.61 in, Body Height - Limit Switch 2.46 in, Body Width - Limit Switch 1.21 in, Body Depth - Limit Switch 1.21 in, Boot Sealed Actuator - Limit Switch No, Body Style - Limit Switch Miniature, NEMA Rating No NEMA Rating
