  8. Heavy Duty Limit Switch, Wobble Stick, DPDT, 10A at 600V AC, Actuator Location: Top

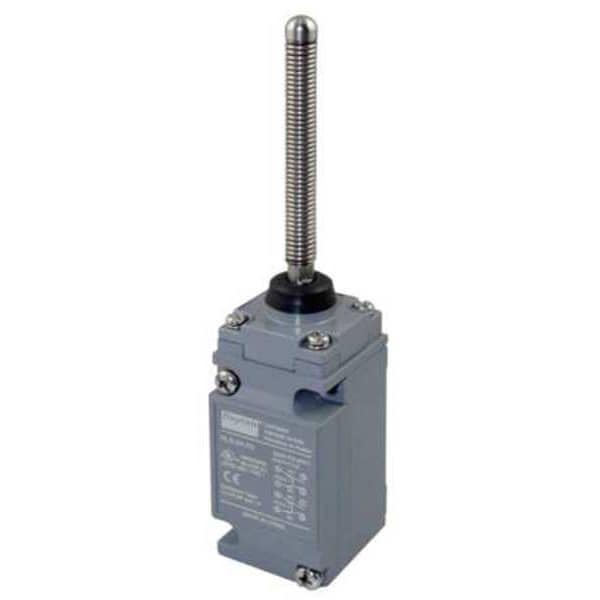

Dayton Heavy Duty Limit Switch, Wobble Stick, DPDT, 10A at 600V AC, Actuator Location: Top 12T852 - main

Heavy Duty Limit Switch, Wobble Stick, DPDT, 10A at 600V AC, Actuator Location: Top

  • Mfr # 12T852

  • Zoro # G4120541

product price:  $192.99
/ea
Free Shipping & Returns

Key Features

Basic Actuator Style - Limit Switch
Wobble Stick
Actuator Style - Limit Switch
Wobble Stick
Contact Form- Switches
DPDT
Actuator Location - Limit Switch
Top
AC Contact Rating - Limit Switch
10A at 600V
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
12T852
Zoro #
G4120541
UPC #
190735115879
Country of Origin
China

Dimensions

Width
1.65"
Height
8.12"
Body Height - Limit Switch
3.35 in
Body Depth - Limit Switch
1.74 in
Depth
1.76"
Body Width - Limit Switch
1.65 in
Body Width
1.65 in
Body Height
3.35 in
Mounting Hole Diameter
0.2 in
Body Depth
1.74 in

Details

Item
Heavy Duty Limit Switch
Basic Actuator Style - Limit Switch
Wobble Stick
Actuator Style - Limit Switch
Wobble Stick
Contact Form- Switches
DPDT
Actuator Location - Limit Switch
Top
AC Contact Rating - Limit Switch
10A at 600V
DC Contact Rating - Limit Switch
10A at 600V
Body Style - Limit Switch
Standard
Mounting - Limit Switch
Surface
AC Contact Rating
10 A @ 600 V
Operating Force
56.66 in-oz
Series
Dayton
Operating Temp. Range
-20 Degrees to 185 Degrees F
Actuator Location (Limit Switch)
Top
Amps
10
Mounting Hole - Limit Switch
(2) 0.20 in dia
Travel
Maximum Pre-Travel N/A, Minimum Over-Travel N/A
Mounting Hole Pattern - Limit Switch
2 Hole Diagonal
Boot Sealed Actuator (Limit Switch)
No
Limit Switch Style
Heavy Duty Limit Switch
Mounting Hole Spacing - Limit Switch
2.34 in x 1.16 in
Wiring Entry
1/2 in NPT
Voltage Rating
600VAC/DC
Movement
Omnidirectional
Actuator Style (Limit Switch)
Wobble Stick
Basic Actuator Style (Limit Switch)
Wobble Stick
Contact Form
DPDT
Number of Poles
2
Boot Sealed Actuator - Limit Switch
No
Actuator Location
Top
Standards
CE, CSA, UL Listed
Contact Form - Limit Switch
DPDT
IP Rating
IP67
NEMA Rating
13, 3, 4, 4X, 6P
Electrical Connection
Screw Terminals
Actuator Style
Wobble Stick
DC Contact Rating
10 A @ 600 V
Stem Thread - Limit Switch
No Stem
Body Style (Limit Switch)
Standard
Mounting Style
Surface
Number of Mounting Holes
2
Mounting Hole Vertical Center to Center Distance
59 mm
Action
A
NEMA Enclosure Rating
13, 3, 4, 4X, 6P
Operating Torque - Maximum
3.54 in-lb
Operating Temperature - Minimum
-20 Degrees F
Operating Temperature - Maximum
185 Degrees F
Boot Sealed Actuator
No Boot Included
Directional Movement
Omnidirectional
Mounting Hole Horizontal Center to Center Distance
29 mm

Description

Limit Switch, Actuator Style - Limit Switch Wobble Stick, Actuator Location - Limit Switch Top, AC Contact Rating - Limit Switch 10A @ 600V, DC Contact Rating - Limit Switch 10A @ 600V, Contact Form- Switches DPDT, Body Height - Limit Switch 3.35 in, Body Width - Limit Switch 1.65 in, Body Depth - Limit Switch 1.74 in, Boot Sealed Actuator - Limit Switch No, Body Style - Limit Switch Standard, NEMA Rating 13, 3, 4, 4X, 6P, Mounting - Limit Switch Surface, Electrical Connection Screw Terminals
