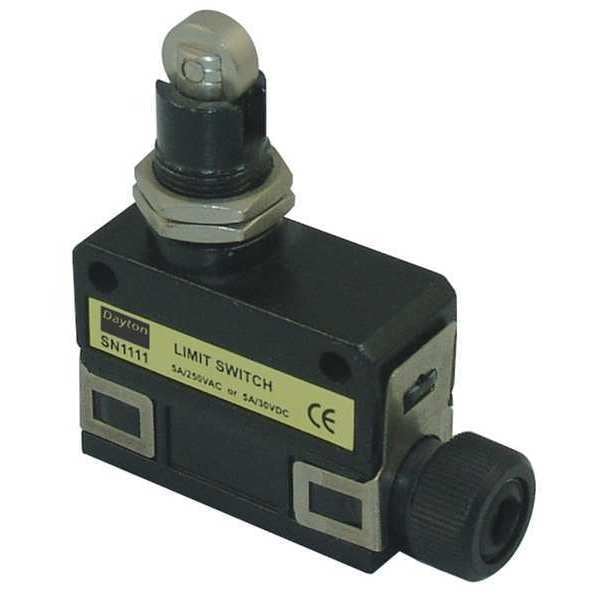

Limit Switch, Plunger, Roller, SPDT, 5A at 240V AC, Actuator Location: Top

  • Mfr # 13F513

  • Zoro # G4019294

product price:  $40.49
/ea

Key Features

Basic Actuator Style - Limit Switch
Plunger
Actuator Style - Limit Switch
Plunger, Roller
Contact Form- Switches
SPDT
Actuator Location - Limit Switch
Top
AC Contact Rating - Limit Switch
5A at 240V
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
13F513
Zoro #
G4019294
UPC #
190735118191
Country of Origin
China

Dimensions

Body Width - Limit Switch
2.29 in
Depth
0.71"
Body Height - Limit Switch
1.27 in
Roller Dia.
11.0 mm
Body Depth - Limit Switch
0.71 in
Height
2.41"
Roller Width
0.16 in
Width
2.29"
Body Depth
0.71 in
Mounting Hole Diameter
0.18 in
Roller Diameter
0.43 in
Body Height
1.27 in
Body Width
2.29 in

Details

Item
Limit Switch
Basic Actuator Style - Limit Switch
Plunger
Actuator Style - Limit Switch
Plunger, Roller
Contact Form- Switches
SPDT
Actuator Location - Limit Switch
Top
AC Contact Rating - Limit Switch
5A at 240V
DC Contact Rating - Limit Switch
Not Rated
Body Style - Limit Switch
Micro
Mounting - Limit Switch
Stem, Surface
Basic Actuator Style (Limit Switch)
Plunger
Operating Force
11.8 N-m
Electrical Connection
Screw Terminals
Contact Form
SPDT
Limit Switch Style
General Purpose Limit Switch
Mounting Hole Spacing - Limit Switch
1.30 in
DC Contact Rating
Not Rated
Movement
Vertical
Number of Poles
1
Actuator Style (Limit Switch)
Plunger, Roller
Amps
5
Boot Sealed Actuator - Limit Switch
No
IP Rating
IP67
Actuator Style
Roller Plunger
Contact Form - Limit Switch
SPDT
Wiring Entry
Strain Relief
Operating Temp. Range
-14 Degrees to 158 Degrees F
Boot Sealed Actuator (Limit Switch)
No
AC Contact Rating
5 A @ 240 V
Actuator Location (Limit Switch)
Top
Mounting Hole Pattern - Limit Switch
2 Hole Horizontal
Voltage Rating
240VAC
Travel
Maximum Pre-Travel 0.06 in, Over Travel 0.118 in
Body Style (Limit Switch)
Micro
Actuator Location
Top
Series
Dayton
Stem Thread - Limit Switch
M14 x 1.00 in
Standards
CE, CSA, UL Listed
Mounting Hole - Limit Switch
(2) 0.18 in dia
NEMA Rating
13, 3, 4
Pretravel
0.06 in
Boot Sealed Actuator
No Boot Included
Number of Mounting Holes
2
Overtravel
0.12 in
Mounting Hole Horizontal Center to Center Distance
33 mm
Operating Temperature - Maximum
158 Degrees F
Mounting Style
Stem, Surface
Operating Torque - Maximum
104.44 in-lb
NEMA Enclosure Rating
13, 3, 4
Directional Movement
Linear
Operating Temperature - Minimum
-14 Degrees F

Description

Limit Switch, Actuator Style - Limit Switch Plunger, Roller, Actuator Location - Limit Switch Top, AC Contact Rating - Limit Switch 5A @ 240V, DC Contact Rating - Limit Switch Not Rated, Contact Form- Switches SPDT, Body Height - Limit Switch 1.27 in, Body Width - Limit Switch 2.29 in, Body Depth - Limit Switch 0.71 in, Boot Sealed Actuator - Limit Switch No, Body Style - Limit Switch Micro, NEMA Rating 13, 3, 4, Mounting - Limit Switch Stem, Surface, Electrical Connection Screw Terminal
