Shop DAYTON

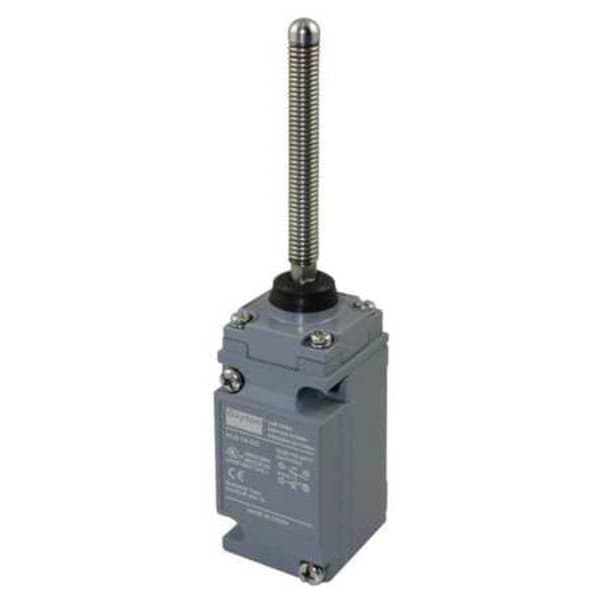

Heavy Duty Limit Switch, Wobble Stick, SPDT, 10A at 600V AC, Actuator Location: Top

  • Mfr # 12T833
  • Zoro # G4015015
product price:
$
184.99
/ea
Free Shipping & Returns

Key Features

Basic Actuator Style - Limit Switch
Wobble Stick
Actuator Style - Limit Switch
Wobble Stick
Contact Form- Switches
SPDT
Actuator Location - Limit Switch
Top
AC Contact Rating - Limit Switch
10A at 600V
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
12T833
Zoro #
G4015015
UPC #
190735115688
Country of Origin
China
Item
Heavy Duty Limit Switch
Basic Actuator Style - Limit Switch
Wobble Stick
Actuator Style - Limit Switch
Wobble Stick
Contact Form- Switches
SPDT
Actuator Location - Limit Switch
Top
AC Contact Rating - Limit Switch
10A at 600V
DC Contact Rating - Limit Switch
10A at 600V
Body Style - Limit Switch
Standard
Mounting - Limit Switch
Surface
Stem Thread - Limit Switch
No Stem
Travel
Maximum Pre-Travel N/A, Minimum Over-Travel N/A
Actuator Location (Limit Switch)
Top
Actuator Location
Top
Operating Force
56.66 in-oz
Contact Form - Limit Switch
SPDT
Standards
CE, CSA, UL Listed
Body Style (Limit Switch)
Standard
AC Contact Rating
10 A @ 600 V
Mounting Hole - Limit Switch
(2) 0.20 in dia
Boot Sealed Actuator - Limit Switch
No
Electrical Connection
Screw Terminals
Voltage Rating
600VAC/DC
Basic Actuator Style (Limit Switch)
Wobble Stick
Contact Form
SPDT
Limit Switch Style
Heavy Duty Limit Switch
Mounting Hole Spacing - Limit Switch
2.34 in x 1.16 in
Boot Sealed Actuator (Limit Switch)
No
IP Rating
IP67
DC Contact Rating
10 A @ 600 V
NEMA Rating
13, 3, 4, 4X, 6P
Series
Dayton
Number of Poles
1
Actuator Style (Limit Switch)
Wobble Stick
Movement
Omnidirectional
Amps
10
Actuator Style
Wobble Stick
Operating Temp. Range
-20 Degrees to 185 Degrees F
Wiring Entry
1/2 in NPT
Mounting Hole Pattern - Limit Switch
2 Hole Diagonal
Mounting Hole Horizontal Center to Center Distance
29 mm
Number of Mounting Holes
2
Operating Torque - Maximum
3.54 in-lb
Mounting Style
Surface
Operating Temperature - Minimum
-20 Degrees F
NEMA Enclosure Rating
13, 3, 4, 4X, 6P
Operating Temperature - Maximum
185 Degrees F
Mounting Hole Vertical Center to Center Distance
59 mm
Boot Sealed Actuator
No Boot Included
Action
A
Directional Movement
Omnidirectional

Description

Limit Switch, Actuator Style - Limit Switch Wobble Stick, Actuator Location - Limit Switch Top, AC Contact Rating - Limit Switch 10A @ 600V, DC Contact Rating - Limit Switch 10A @ 600V, Contact Form- Switches SPDT, Body Height - Limit Switch 3.35 in, Body Width - Limit Switch 1.65 in, Body Depth - Limit Switch 1.74 in, Boot Sealed Actuator - Limit Switch No, Body Style - Limit Switch Standard, NEMA Rating 13, 3, 4, 4X, 6P, Mounting - Limit Switch Surface, Electrical Connection Screw Terminals
