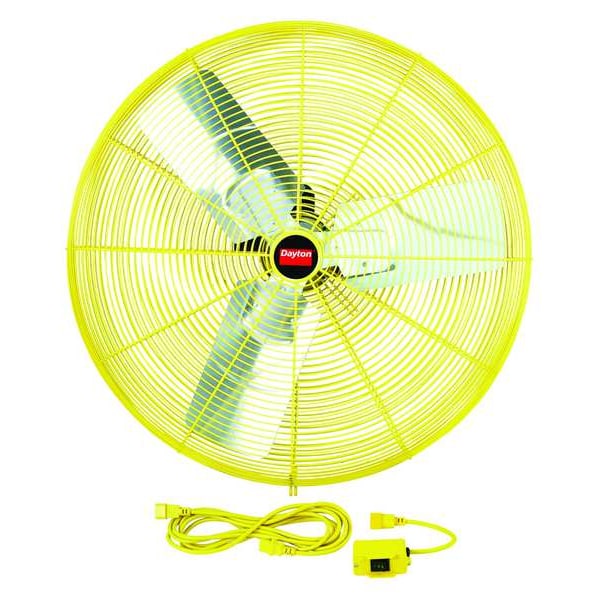

High Visibility Air Circulator, Ceiling, IBeam, Pedestal, Wall Mount, 30 in Blade Dia, 115V

  • Mfr # 1VCH5

  • Zoro # G1489546

product price:
$
411.99
/ea
Free Shipping & Returns

Key Features

Blade Diameter
30 in
Oscillation
Non-Oscillating
Number of Speeds
2
Voltage
115V AC
Phase
Single
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
1VCH5
Zoro #
G1489546
UPC #
190735148600
Country of Origin
China

Dimensions

Blade Diameter
30 in
Shaft Dia.
1/2 in
Max. Depth
13-1/4"
Height
33 in
Width
33 in
Outside Dia.
33"
Depth
13 1/4 in
Fan Cord Length
10 ft
Height Adjustment
Fixed Height
Max. Mounting Height
Unrestricted

Details

Oscillation
Non-Oscillating
Number of Speeds
2
Voltage
115V AC
Phase
Single
Motor HP
1/2 hp
Air Flow
8,750/9,400 cfm
Drive Type
Direct Drive
Blade Material
Aluminum
Fan Power Source
Plug-In
Sound Level
77 dBA
Item
Fan Head
Fan Accessory Style
High Visibility
Air Velocity @ 20 Ft.
650/350 fpm
Motor Enclosure
Totally Enclosed Air-Over
Requires
Mounting Device
Standards
cULus Listed
Air Velocity @ 60 Ft.
140 fpm
CFM/Watt
27.8/27.4
Assembled
Yes
NEMA Plug Configuration
5-15P
Includes
15 ft Extension Cord for 3 Position Drop Cord Switch, Mounting Bolts
Number of Blades
3
Housing Material
Steel
Bearing Type
Ball
Fan Mounting Location
Fan Head Only
Thermal Protection
Automatic Reset
Fan Style
High Visibility
Number of Conductors
3
CFM High
9400
Air Velocity @ 40 Ft.
220/100 fpm
Wire Guard Finish
Powder Coated
Air Velocity @ 10 Ft.
900/500 fpm
Hz
60 Hz
CFM Low
8750
Motor Insulation
B
Max. Ambient Temp.
104 Degrees F
Motor RPM
1100/850
Watts
425/330
Mobile/Stationary
Stationary
Motor Type
Permanent Split Capacitor
Application
Spot Cooling and People Cooling
Guard Material
Steel
Environmental Applications
Industrial
Assembly Required
No
Amps
4.2/3.3
Fan Housing Material
Steel
RPM
850 RPM, 1,100 RPM
Color
Yellow
Wheeled Base
Stationary
Material
Steel
Motor hp
1/2 hp
NEMA plug Configuration
5-15p
Bearing Protection
Double-Sealed
For Mounting Type
Bracket
For Location
Manufacturing Plant
Removable Base
Permanently Lubricated
Corrosion-Resistant
Yes
Fan Shape
Basket
High-Visibility
Yes
Environment Rating
Damp
Guard Color
Yellow
Head Tilt Adjustment
90 Degrees
Airflow
8,750 cfm, 9,400 cfm
Compatible Manufacturer Model Number
1ZCP3D, 40PR87, SAS.02, SAS.03, SAS.04, SAS.14
Sound Level - Minimum
75 dBA
Motor Design
Permanent Split Capacitor
Compatible with Brand
Dayton
Compatible with Manufacturer Model Number
1ZCP3D, 40PR87, SAS.02, SAS.03, SAS.04, SAS.14
For Manufacturer Part Number
1ZCP3D, 40PR87, SAS.02, SAS.03, SAS.04, SAS.14
Compatible with Mfr. Model Number
1ZCP3D, 40PR87, SAS.02, SAS.03, SAS.04, SAS.14
Compatible Manufacturer Part Number
1ZCP3D, 40PR87, SAS.02, SAS.03, SAS.04, SAS.14

Description

High-Visibility Industrial Fan, Blade Dia. 30 in, Stationary, Non-Oscillating, 2 Speeds, Voltage 115V AC, 1 Phase, CFM High 9400, CFM Low 8750, Air Velocity @ 20 Ft. 650/350 fpm, Motor HP 1/2 hp, Motor RPM 1100/850, Operating Amps 4.2/3.3, Fan Mounting Location Fan Head Only, Fan Accessory Style High Visibility, Fan RPM 1100/850, Sound Level 77 dBA, Max. Ambient Temp. 104 Degrees F, Hz 60 Hz, Watts 425/330, Motor Type Permanent Split Capacitor, Drive Type Direct Drive, Outside Dia. 33 In.

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
