This item is Discontinued.

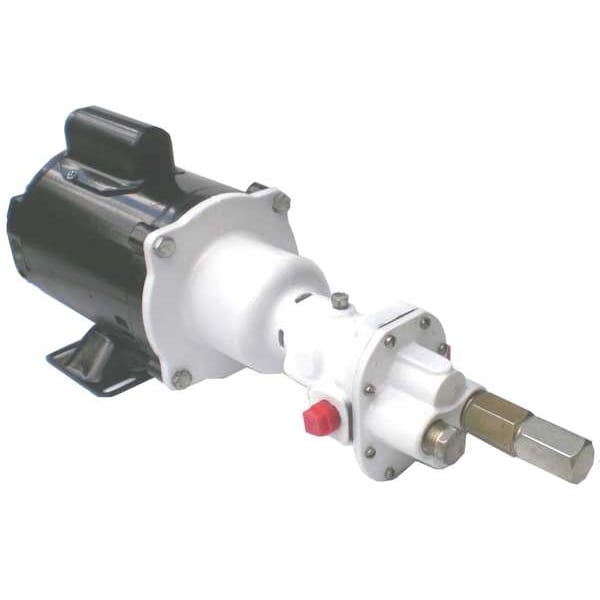

Dayton Hot Oil Cooking Pump, 3/4 HP, 115/230V 6DHJ2

Hot Oil Cooking Pump, 3/4 HP, 115/230V (Discontinued)

  • Mfr # 6DHJ2
  • Zoro # G3623076
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
6DHJ2
Zoro #
G3623076
UPC #
190735360866
Country of Origin
China

Dimensions

Height (In.)
21.25 in
Length (In.)
6.5 in
Port Size (In.)
3/4 in
Manufacturers Warranty Length
1 yr
Width (In.)
6.5 in

Details

Item
Rotary Gear Pump
Type
With Motor
HP
3/4 hp
Voltage
115/230
Bushing
Carbon/Graphite
Min. Temp. (F)
40 Degrees F
GPM @ 20 PSI
9.6 gpm
Body Material
Cast Iron
Includes
Extra Mechanical Seal
Phase
1
GPM @ Freeflow
9.9 gpm
Amps
11.6/5.8
GPM @ 40 PSI
8.1 gpm
Max. Viscosity (SSU)
100 SUS
Gear Material
Stainless Steel
Relief Valve
Yes
O-Ring
Viton
Suction Lift (Ft.)
12.3 ft
Agency Compliance
CSA US, NSF
Motor Frame
Close-Coupled
Gears
Spur
Temp. Range
40 Degrees to 375 Degrees F
Motor Enclosure
ODP
Shaft Material
Stainless Steel
Max. Pressure (PSI)
60 psi
GPM Max.
9.9 gpm
Seal
Viton Mechanical
GPM @ 60 PSI
9.1 gpm
GPM @ 50 PSI
7.7 gpm
Max. RPM
1,725 RPM
Max. Temp. (F)
375 Degrees F

Description

Rotary Gear Pump, Phase 1, Motor Enclosure ODP, Gear Material Stainless Steel, Body Material Cast Iron, Shaft Material Stainless Steel
