  11. HVAC Motor, 1/50 HP, 3000 rpm, 115V, 3.3

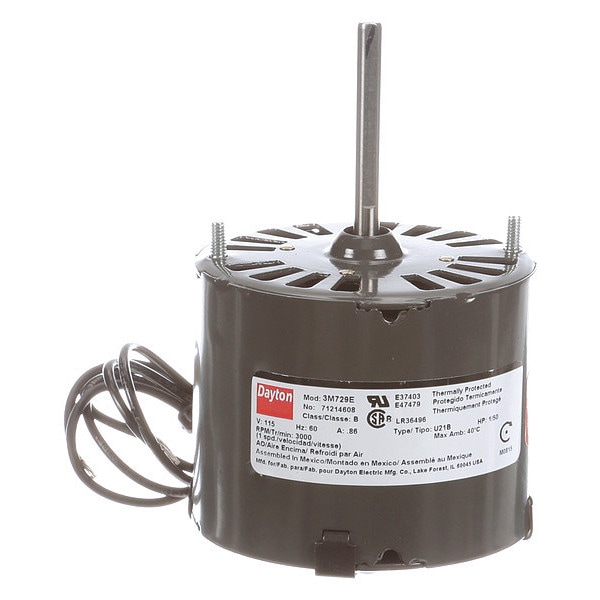

Dayton HVAC Motor, 1/50 HP, 3000 rpm, 115V, 3.3 71214608M - main

HVAC Motor, 1/50 HP, 3000 rpm, 115V, 3.3

  • Mfr # 71214608M

  • Zoro # G3003244

product price: $52.29
/ea

Key Features

Voltage
115V AC
Nameplate RPM
3,000
Motor Enclosure Design
Open Air-Over
Number of Speeds
1
HP
1/50
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
71214608M
Zoro #
G3003244
UPC #
00190735292365
Country of Origin
Mexico

Dimensions

Body Dia.
3 5/16 in
Cord Length
12 in
Shaft Dia.
1/4 in
Shaft Length
2 1/4 in
Length Less Shaft
2 1/2 in

Details

Voltage
115V AC
Nameplate RPM
3,000
Motor Enclosure Design
Open Air-Over
Number of Speeds
1
HP
1/50
RPM Range
1,801-3,000
Motor Bearings
Sleeve
Motor Application
HVAC/R
Full Load Amps
0.8 A
Duty
Continuous
Mounting Stud Location
2/Shaft End
Motor Service Factor
1
Motor Thermal Protection
Auto
Stud/Base Mtg. Pattern
2-7/8 in
Phase
Single
Motor Sub Application
Direct Drive Fan/Blower
Motor Mounting Type
Ring/Stud
No. of Speeds
1
Motor Shaft Rotation
CWSE
Max. Ambient Temp.
40 Degrees C
Frame
3.3
Number of Shafts
1
Motor Shaft Design
Flat
Mounting Pattern
2-7/8
Item
HVAC Motor
Hz
60 Hz
Voltage Compatibility
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Ins. Class
B
Application
OEM and Replacement Use In A Wide Variety of Fan and Blower
Motor Design
Shaded Pole
Standards
CSA Certified, UL Recognized
Capacitor Required
No
Usable @ 208V
No
Mounting Stud Pattern
2 7/8 in
Motor Mounting Position
All Angle
Duty Cycle
Continuous
Usable @ 200V
No
Mounting
Stud
Type
OEM Replacement

Description

HVAC Motor, Single Phase, Motor Design Shaded Pole, 1/50 hp HP, Nameplate RPM 3,000 RPM, No. of Speeds 1, Voltage 115V AC, 0.8 A Full Load Amps, 3.3 Frame, Output Watts 15 W, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CWSE, Motor Enclosure Design Open Air Over, Motor Mounting Type Stud, Motor Frame Material Steel
