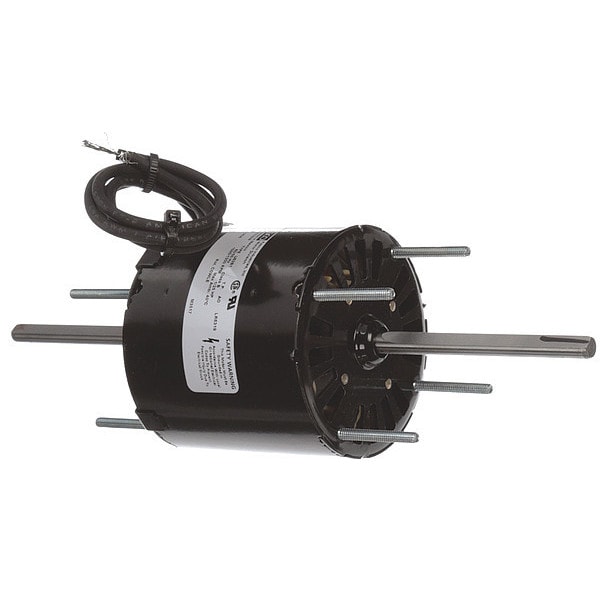

HVAC 3.3 In Motor, 1/25 HP, 230V, CCW/LE

  • Mfr # D636
  • Zoro # G5502165
product price:
$
162.99
/ea
Free Shipping & Returns

Key Features

Voltage
230V AC
Nameplate RPM
1,500
Motor Enclosure Design
Open Air-Over
Number of Speeds
1
HP
1/25
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
D636
Zoro #
G5502165
UPC #
663001027508
Country of Origin
Mexico

Dimensions

Shaft Length
3 1/2 in
Shaft Dia.
5/16 in
Body Dia.
3 5/16 in
Length Less Shaft
3 11/16 in
Lead Length
12 in
Stud Size
#8-32
Bolt Circle Dia.
2 7/8 in
Overall Length
10 1/4 in
Shaft Diameter
5/16 in
Body Diameter
3.3 in
Frame Size
3.3
Mounting Stud Thread Size
#8-32
Bolt Circle Diameter
2 7/8 in
Wire Rope Length
10 1/4 in
Length
10 1/4 in

Details

Voltage
230V AC
Nameplate RPM
1,500
Motor Enclosure Design
Open Air-Over
Number of Speeds
1
HP
1/25
RPM Range
1,401-1,500
Mounting Stud Location
4/Both Ends
Stud/Base Mtg. Pattern
2-7/8 in x 2-7/8 in
No. of Speeds
1
Duty
Continuous
Motor Shaft Design
Flat
Motor Design
Shaded Pole
Standards
CSA Certified, UL Recognized
Voltage Compatibility
115V AC, 200V AC to 230V AC, 115V AC, 208V AC to 230V AC, 115V AC, 230V AC, 120V AC, 240V AC, 200V AC to 230V AC, 440V AC, 200V AC to 230V AC, 460V AC, 208V AC to 220V AC, 440V AC, 208V AC to 230V AC, 277V AC, 208V AC to 230V AC, 460V AC, 230V AC, 240V AC, 277V AC, 230V AC
Motor Thermal Protection
Auto
Motor Shaft Rotation
CW/CCW
Hz
60 Hz
Motor Sub Application
OEM Replacement
Frame
3.3
Motor Service Factor
1
Number of Shafts
2
Ins. Class
B
Application
HVAC/R
Mounting Pattern
2-7/8 x 2-7/8
Motor Bearings
Sleeve
Phase
Single
Motor Mounting Type
Ring/Stud
Item
OEM Replacement Motor
Full Load Amps
0.9 A
Max. Ambient Temp.
40 Degrees C
Motor Application
HVAC/R
Capacitor Required
Capacitor Not Required
Weight
4 lb
Usable @ 208V
Not Usable at 208V
Usable @ 200V
Not Usable at 200V
Motor Mounting Position
All Angle
Mounting Stud Pattern
2 7/8 in x 2 7/8 in
Mounting Holes
(8) #8-32
Motor Frame Material
Steel
RPM @ 50Hz
1,200 RPM
Mounting
Stud
Sub Application
General Purpose
Nameplate Service Factor @ 60 Hz
1
Insulation Class
B
Wattage
30 W
Full Load Current @ 60 Hz
0.9 A
Frame Material
Steel
Product Type
OEM Replacement Motor
Frequency
60 Hz
Shaft Design
Flat
Nameplate RPM @ 50 Hz
1,200 RPM
Bearing Type
Sleeve
Drive Type
Direct Drive
Motor Enclosure Type
Open Air Over
Ambient Temperature - Maximum
40 Degrees C

Description

OEM Replacement Motor, Single Phase, Motor Design Shaded Pole, 1/25 hp HP, Nameplate RPM 1,500 RPM, No. of Speeds 1, Voltage 230V AC, 0.9 A Full Load Amps, 3.3 Frame, Output Watts 30 W, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air Over, Motor Mounting Type Stud, Motor Frame Material Steel
