Shop All 3.3 Inch Diameter Motors
Dayton

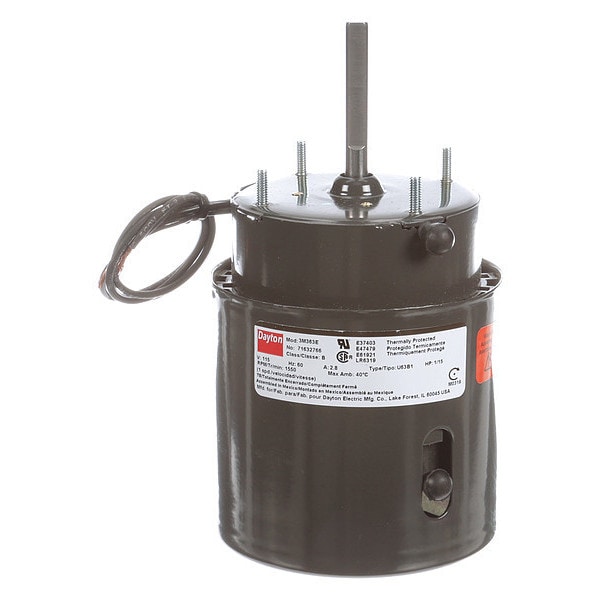

HVAC Motor, 1/15 HP, 1550 rpm, 115V, 3.3

Hover or click to zoom Tap to zoom
Help us improve our product images
Key Features
  • Voltage: 115V AC
  • Nameplate RPM: 1,550 RPM
  • Motor Enclosure Design: Totally Enclosed Fan-Cooled
  • Number of Speeds: 1
  • HP: 1/15
  • RPM Range: 1,501-1,600
  • Full Load Amps: 2.3
  • Motor Service Factor: 1
See full product details
$93.25
Ships from United States
Join our email list for 10% off your first order
For 10% Off Your First Order
Free Shipping on $50+ Orders
No-Hassle, 30-Day Returns 30-Day Returns
125 U.S.-Based Customer Service Agents 125 U.S.-Based Customer Service Agents

Dayton #71632766M Specifications

  • Voltage: 115V AC
  • Nameplate RPM: 1,550 RPM
  • Motor Enclosure Design: Totally Enclosed Fan-Cooled
  • Number of Speeds: 1
  • HP: 1/15
  • RPM Range: 1,501-1,600
  • Full Load Amps: 2.3
  • Motor Service Factor: 1
  • Motor Thermal Protection: Auto
  • Length Less Shaft: 4 1/2 in
  • Phase: Single
  • Frame: 3.3
  • No. of Speeds: 1
  • Ins. Class: B
  • Cord Length: 12 in
  • Motor Shaft Rotation: CWSE
  • Stud/Base Mtg. Pattern: 2 in x 2 in
  • Voltage Compatibility: 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
  • Shaft Dia.: 5/16 in
  • Motor Design: Shaded Pole
  • Shaft Length: 2 3/8 in
  • Motor Shaft Design: Flat
  • Motor Sub Application: Direct Drive Fan/Blower
  • Number of Shafts: 1
  • Item: HVAC Motor
  • Motor Application: HVAC/R
  • Motor Mounting Type: Stud
  • Body Dia.: 4 in
  • Motor Bearings: Sleeve
  • Mounting Stud Location: 4/Shaft End
  • Max. Ambient Temp.: 40 Degrees C
  • Mounting Pattern: 2 x 2
  • Duty: Continuous
  • Application: OEM and Replacement Use In A Wide Variety of Fan and Blower
  • Hz: 60 Hz
  • Standards: CSA Certified, UL Recognized
  • Capacitor Required: No
  • Usable @ 200V: No
  • Usable @ 208V: No
  • Motor Mounting Position: All Angle
  • Duty Cycle: Continuous
  • Mounting Stud Pattern: 2 in x 2 in
  • Type: OEM Replacement
  • Mounting: Stud
  • Country of Origin (subject to change): Mexico

Description

HVAC Motor, Single Phase, Motor Design Shaded Pole, 1/15 HP, Nameplate RPM 1,550, No. of Speeds 1, Voltage 115V AC, Full Load Amps 2.3, 3.3 Frame, Usable @ 208V No, Usable @ 200V No, Motor Thermal Protection Auto, 60 Hz Hz, Motor Service Factor 1, Ins. Class B, Motor Shaft Rotation CWSE, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Mounting Type Stud, Motor Mounting Position All Angle, Number of Shafts 1
