Shop DAYTON

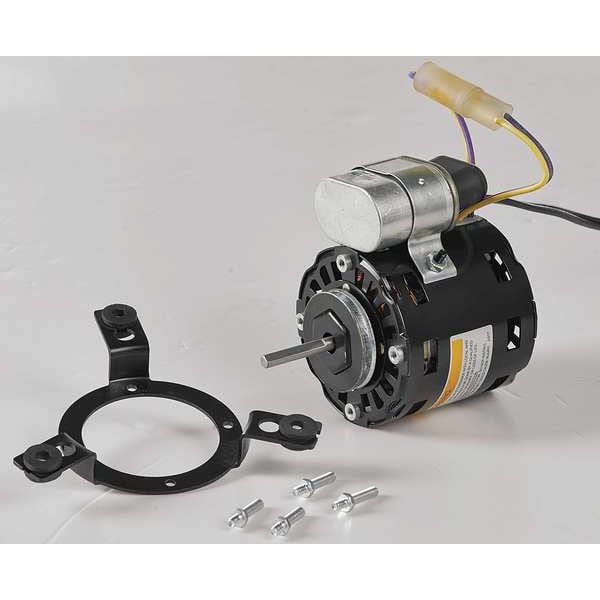

HVAC Motor, 1/70 HP, 1550 rpm, 120V, 3.3

  • Mfr # 20HN88

  • Zoro # G7550557

product price:
$
40.29
/ea

Key Features

Voltage
120V AC
Nameplate RPM
1,550
Motor Enclosure Design
Open Air-Over
Number of Speeds
1
HP
1/70
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
20HN88
Zoro #
G7550557
UPC #
190735153437
Country of Origin
China

Dimensions

Body Dia.
3 5/16 in
Shaft Dia.
1/4 in
Cord Length
20 in
Shaft Length
1 1/2 in
Length Less Shaft
4 in
Frame Size
3.3
Body Diameter
3.3 in
Shaft Diameter
1/4 in

Details

Voltage
120V AC
Nameplate RPM
1,550
Motor Enclosure Design
Open Air-Over
Number of Speeds
1
HP
1/70
RPM Range
1,501-1,600
Frame
3.3
Motor Thermal Protection
Auto
Motor Application
HVAC/R
Mounting Pattern
2
Motor Mounting Type
Ring/Stud
Stud/Base Mtg. Pattern
2 in x 2 in
Hz
60 Hz
Motor Shaft Design
Flat
Duty
Continuous
Voltage Compatibility
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Number of Shafts
1
Ins. Class
B
Motor Bearings
Ball
Max. Ambient Temp.
40 Degrees C
Item
HVAC Motor
Standards
CSA 244617, UL E37403
Motor Sub Application
Direct Drive Fan/Blower
No. of Speeds
1
Phase
Single
Motor Design
Permanent Split Capacitor
Motor Service Factor
1
Full Load Amps
0.30 A
Motor Shaft Rotation
CW/CCW
Mounting Stud Location
4/Both Ends
Includes
Capacitor
Plug Type
2 Prong Polarized
Capacitor Required
Capacitor Included
Mounting Stud Pattern
2
Duty Cycle
Continuous
Motor Mounting Position
All Angle
Mounting
Stud
Drive Type
Direct Drive
Sub Application
General Purpose
Nameplate Service Factor @ 60 Hz
1
Ambient Temperature - Maximum
40 Degrees C
Motor Enclosure Type
Open Air Over
Frequency
60 Hz
Bearing Type
Ball
Shaft Design
Flat
Full Load Current @ 60 Hz
0.30 A
Insulation Class
B

Description

HVAC Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/70 hp HP, Nameplate RPM 1,550 RPM, No. of Speeds 1, Voltage 120V AC, 0.30 A Full Load Amps, 3.3 Frame, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air Over, Motor Mounting Type Stud, Motor Mounting Position All Angle, Shaft Length 1 1/2 in, Shaft Dia. 1/4 in
