Fasco

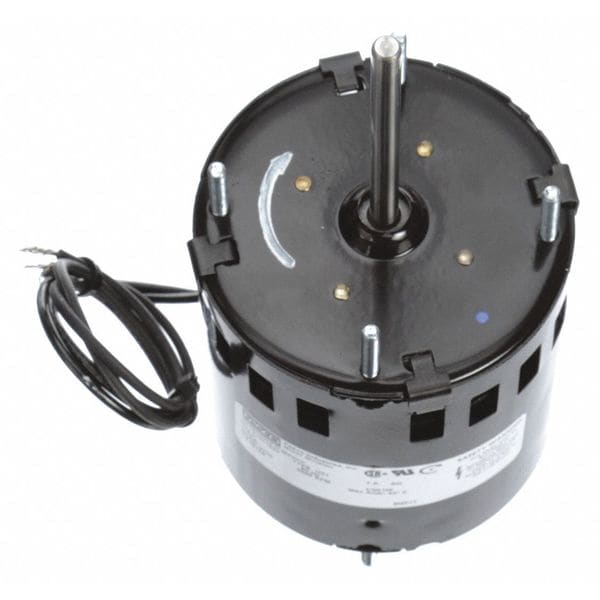

HVAC Motor, 1/30 HP, 3000 rpm, 115V, 3.3

product price: $85.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Voltage 115V AC
  • Nameplate RPM 3,000
  • Motor Enclosure Design Open Air-Over
  • Number of Speeds 1
  • HP 1/30
See all product information

Product Information

Dimensions

Shaft Length 3 in
Length Less Shaft 4 1/8 in
Body Dia. 3 5/16 in
Shaft Dia. 1/4 in
Bolt Circle Dia. 2 7/8 in
Stud Size #8-32
Overall Length 6 15/16 in
Lead Length 12 in

Details

Voltage 115V AC
Nameplate RPM 3,000
Motor Enclosure Design Open Air-Over
Number of Speeds 1
HP 1/30
RPM Range 1,801-3,000
Motor Thermal Protection Auto
Motor Shaft Rotation CWSE
Frame 3.3
Standards CSA Certified, UL Recognized
No. of Speeds 1
Motor Shaft Design Flat
Stud/Base Mtg. Pattern 2-7/8 in x 2-7/8 in
Motor Design Shaded Pole
Item Direct Drive Blower Motor
Motor Service Factor 1
Motor Mounting Type Stud
Max. Ambient Temp. 40 Degrees C
Application HVAC/R
Motor Bearings Sleeve
Mounting Pattern 2-7/8 x 2-7/8
Mounting Stud Location 4/Both Ends
Full Load Amps 1 A
Motor Application HVAC/R
Number of Shafts 1
Duty Continuous
Hz 60 Hz
Ins. Class B
Phase Single
Motor Sub Application Direct Drive Fan/Blower
Voltage Compatibility 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Capacitor Required No
Usable @ 200V No
Motor Frame Material Steel
Motor Mounting Position All Angle
Usable @ 208V No
Weight 3 lb
Mounting Stud Pattern 2 7/8 in x 2 7/8 in
Mounting Holes (8) #8-32
Mounting Stud

Description

Direct Drive Blower Motor, Single Phase, Motor Design Shaded Pole, 1/30 HP, Nameplate RPM 3,000, No. of Speeds 1, Voltage 115V AC, Full Load Amps 1 A, 3.3 Frame, Usable @ 208V No, Usable @ 200V No, Motor Thermal Protection Auto, 60 Hz Hz, Motor Service Factor 1, Ins. Class B, Motor Shaft Rotation CWSE, Max. Ambient Temp. 40 Degrees C, Lead Length 12 in, Motor Enclosure Design Open Air-Over, Motor Mounting Type Stud, Motor Mounting Position All Angle, Number of Shafts 1
