Shop DAYTON

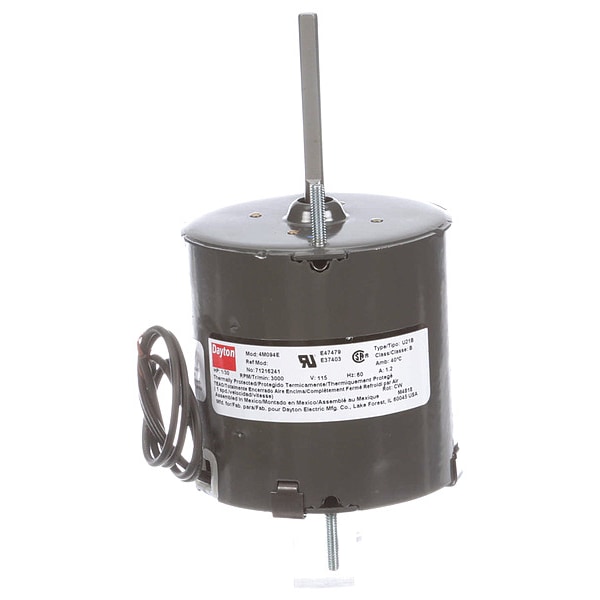

HVAC Motor, 1/30 HP, 3000 rpm, 115V, 3.3

  • Mfr # 71216241M

  • Zoro # G3039337

product price:
$
54.79
/ea

Key Features

Voltage
115V AC
Nameplate RPM
3,000
Motor Enclosure Design
Totally Enclosed Air-Over
Number of Speeds
1
HP
1/30
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
71216241M
Zoro #
G3039337
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Dia.
1/4 in
Body Dia.
3 5/16 in
Length Less Shaft
3 13/16 in
Shaft Length
2 5/16 in
Cord Length
12 in
Overall Length
5 3/4 in
Body Diameter
3.3 in
Frame Size
3.3
Shaft Diameter
1/4 in
Wire Rope Length
5 3/4 in

Details

Voltage
115V AC
Nameplate RPM
3,000
Motor Enclosure Design
Totally Enclosed Air-Over
Number of Speeds
1
HP
1/30
RPM Range
1,801-3,000
Motor Service Factor
1
Application
OEM and Replacement Use In A Wide Variety of Fan and Blower
Motor Design
Shaded Pole
Mounting Pattern
2-7/8
Voltage Compatibility
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Full Load Amps
1.2 A
Motor Shaft Rotation
CWSE
Motor Bearings
Sleeve
Motor Mounting Type
Ring/Stud
Ins. Class
B
Number of Shafts
1
Motor Thermal Protection
Auto
Motor Sub Application
Direct Drive Fan/Blower
Hz
60 Hz
Motor Application
HVAC/R
Frame
3.3
Standards
CSA Certified, UL Recognized
Item
HVAC Motor
Motor Shaft Design
Flat
No. of Speeds
1
Duty
Continuous
Max. Ambient Temp.
40 Degrees C
Mounting Stud Location
2/Both Ends
Stud/Base Mtg. Pattern
2-7/8 in
Phase
Single
Capacitor Required
Capacitor Not Required
Usable @ 200V
Not Usable at 200V
Mounting Stud Pattern
2 7/8 in
Duty Cycle
Continuous
Usable @ 208V
Not Usable at 208V
Motor Mounting Position
All Angle
Mounting
Stud
Type
OEM Replacement
Drive Type
Direct Drive
Full Load Current @ 60 Hz
1.2 A
Frequency
60 Hz
Sub Application
General Purpose
Insulation Class
B
Wattage
25 W
Frame Material
Steel
Ambient Temperature - Maximum
40 Degrees C
Bearing Type
Sleeve
Shaft Design
Flat
Nameplate Service Factor @ 60 Hz
1
Motor Enclosure Type
Totally Enclosed Air-Over

Description

HVAC Motor, Single Phase, Motor Design Shaded Pole, 1/30 hp HP, Nameplate RPM 3,000 RPM, No. of Speeds 1, Voltage 115V AC, 1.2 A Full Load Amps, 3.3 Frame, Output Watts 25 W, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CWSE, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Stud
