  11. HVAC Motor, 1/70 HP, 3000 rpm, 115V, 3.3

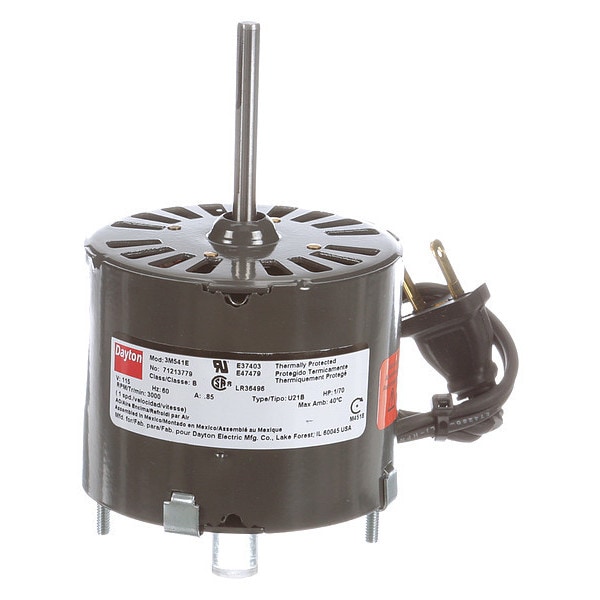

Dayton HVAC Motor, 1/70 HP, 3000 rpm, 115V, 3.3 71213779M - main

HVAC Motor, 1/70 HP, 3000 rpm, 115V, 3.3

  • Mfr # 71213779M

  • Zoro # G2507127

product price: $81.99
/ea
Free Shipping & Returns

Key Features

Voltage
115V AC
Nameplate RPM
3,000
Motor Enclosure Design
Open Air-Over
Number of Speeds
1
HP
1/70
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
71213779M
Zoro #
G2507127
UPC #
00663001431992
Country of Origin
Mexico

Dimensions

Cord Length
8.5 in
Length Less Shaft
3 1/4 in
Shaft Length
2 1/4 in
Body Dia.
3 5/16 in
Shaft Dia.
1/4 in

Details

Voltage
115V AC
Nameplate RPM
3,000
Motor Enclosure Design
Open Air-Over
Number of Speeds
1
HP
1/70
RPM Range
1,801-3,000
Voltage Compatibility
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Number of Shafts
1
Includes
8-1/2 in Cordset
Max. Ambient Temp.
40 Degrees C
Mounting Pattern
2-7/8
Motor Mounting Type
Ring/Stud
Full Load Amps
0.56 A
Motor Sub Application
Direct Drive Fan/Blower
Stud/Base Mtg. Pattern
2-7/8 in
Item
HVAC Motor
Plug Type
2 Prong Non-Polarized
Hz
60 Hz
Application
OEM and Replacement Use In A Wide Variety of Fan and Blower
No. of Speeds
1
Motor Thermal Protection
Auto
Mounting Stud Location
2/Both Ends
Motor Design
Shaded Pole
Motor Application
HVAC/R
Ins. Class
B
Motor Service Factor
1
Phase
Single
Footnotes
26 (Has 8-1/2" cordset)
Duty
Continuous
Motor Bearings
Sleeve
Frame
3.3
Motor Shaft Design
Flat
Motor Shaft Rotation
CWSE
Capacitor Required
No
Usable @ 200V
No
Motor Mounting Position
All Angle
Duty Cycle
Continuous
Mounting Stud Pattern
2 7/8 in
Usable @ 208V
No
Mounting
Stud
Type
OEM Replacement

Description

HVAC Motor, Single Phase, Motor Design Shaded Pole, 1/70 hp HP, Nameplate RPM 3,000 RPM, No. of Speeds 1, Voltage 115V AC, 0.56 A Full Load Amps, 3.3 Frame, Output Watts 11 W, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CWSE, Motor Enclosure Design Open Air Over, Motor Mounting Type Stud, Motor Frame Material Steel
