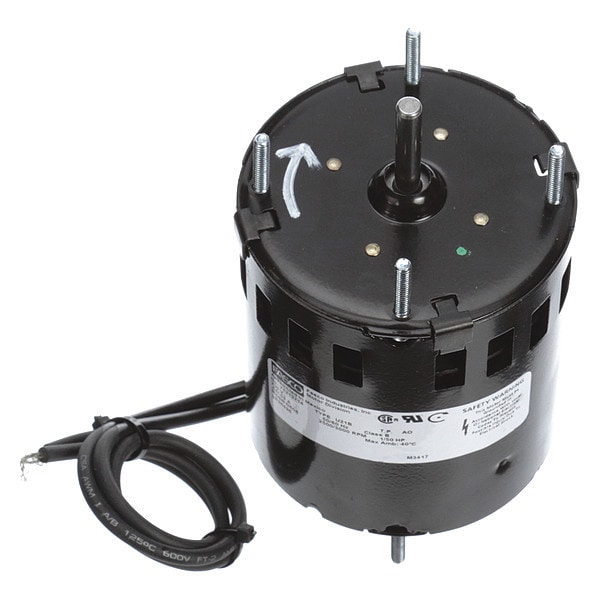

Fasco HVAC 3.3 In Motor, 1/50 HP, 230V, CW D608 - main

HVAC 3.3 In Motor, 1/50 HP, 230V, CW

  • Mfr # D608

  • Zoro # G5671276

product price:  $114.99
/ea
Free Shipping & Returns

Key Features

Voltage
230V AC
Nameplate RPM
2,500
Motor Enclosure Design
Open Air-Over
Number of Speeds
1
HP
1/50
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
D608
Zoro #
G5671276
UPC #
663001027454
Country of Origin
Mexico

Dimensions

Body Dia.
3 5/16 in
Length Less Shaft
4 1/4 in
Shaft Length
1 1/4 in
Shaft Dia.
1/4 in
Lead Length
12 in
Overall Length
5 1/8 in
Stud Size
#8-32
Bolt Circle Dia.
2 7/8 in
Mounting Stud Thread Size
#8-32
Bolt Circle Diameter
2 7/8 in
Shaft Diameter
1/4 in
Body Diameter
3.3 in
Frame Size
3.3

Details

Voltage
230V AC
Nameplate RPM
2,500
Motor Enclosure Design
Open Air-Over
Number of Speeds
1
HP
1/50
RPM Range
1,801-3,000
Mounting Stud Location
4/Both Ends
Motor Bearings
Sleeve
Motor Shaft Design
Flat
Motor Service Factor
1
Application
Fan/Blower
Hz
60 Hz
No. of Speeds
1
Motor Sub Application
Direct Drive Fan/Blower
Full Load Amps
0.64/0.53 A
Motor Application
HVAC/R
Standards
CSA Certified, UL Recognized
Motor Mounting Type
Ring/Stud
Motor Shaft Rotation
CWSE
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115/230V AC, 120/240V AC, 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/277V AC, 208-230/460V AC, 230V AC, 240V AC, 277/230V AC
Phase
Single
Motor Design
Shaded Pole
Stud/Base Mtg. Pattern
2-7/8 in x 2-7/8 in
Mounting Pattern
2-7/8 x 2-7/8
Item
Fan and Blower Motor
Frame
3.3
Motor Thermal Protection
Auto
Number of Shafts
1
Ins. Class
B
Max. Ambient Temp.
40 Degrees C
Duty
Continuous
Capacitor Required
Capacitor Not Required
Usable @ 208V
Not Usable at 208V
Motor Frame Material
Steel
Mounting Stud Pattern
2 7/8 in x 2 7/8 in
Usable @ 200V
Not Usable at 200V
Motor Mounting Position
All Angle
Mounting Holes
(8) #8-32
Weight
3 lb
RPM @ 50Hz
3,000 RPM
Mounting
Stud
Product Type
Fan and Blower Motor
Ambient Temperature - Maximum
40 Degrees C
Nameplate RPM @ 50 Hz
3,000 RPM
Sub Application
General Purpose
Frame Material
Steel
Full Load Current @ 60 Hz
0.64/0.53 A
Shaft Design
Flat
Insulation Class
B
Drive Type
Direct Drive
Nameplate Service Factor @ 60 Hz
1
Frequency
60 Hz
Bearing Type
Sleeve
Wattage
10 W
Motor Enclosure Type
Open Air Over

Description

Fan and Blower Motor, Single Phase, Motor Design Shaded Pole, 1/100 hp HP, Nameplate RPM 2,500 RPM, No. of Speeds 1, Voltage 230V AC, 0.64/0.53 A Full Load Amps, 3.3 Frame, Output Watts 10 W, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CWSE, Motor Enclosure Design Open Air Over, Motor Mounting Type Stud, Motor Frame Material Steel
