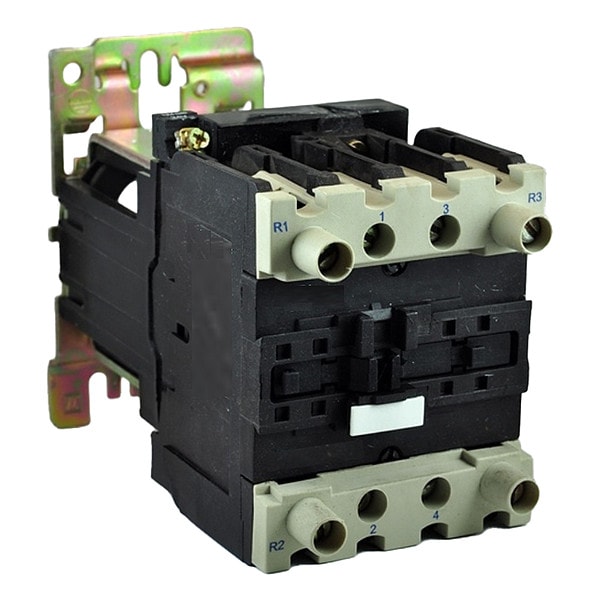

Dayton IEC Magnetic Contactor, No Auxiliary Contacts, 24V DC, 4 P, Non-Reversing 6FZJ0 - main

IEC Magnetic Contactor, No Auxiliary Contacts, 24V DC, 4 P, Non-Reversing

  • Mfr # 6FZJ0

  • Zoro # G1074701

product price:  $209.99
/ea
Free Shipping & Returns

Key Features

Auxiliary Contact Form
No Auxiliary Contacts
Coil Voltage
24V DC
Number of Poles
4
Reversing Capability
Non-Reversing
Number of Auxillary Contacts
4
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
6FZJ0
Zoro #
G1074701
UPC #
190735363447
Country of Origin
India

Dimensions

Overall Height
3.34 in
Overall Width
3.34 in
Overall Depth
6.73 in

Details

Item
IEC Magnetic Contactor
Auxiliary Contact Form
No Auxiliary Contacts
Coil Voltage
24V DC
Number of Poles
4
Reversing Capability
Non-Reversing
Number of Auxillary Contacts
4
Standards
CSA, UL Listed
Reversing
No
Special Features
Main Contact Configuration 2NC/2NO
Enclosure NEMA Rating
No Enclosure
HP @ 1 Phase - 230V
7-1/2
NEMA Enclosure Rating
No Enclosure
Number of Normally Closed Main Contacts
2
Includes Auxiliary Contacts
Yes
Number of Normally Open Main Contacts
2
Full Load Current - Inductive
50 A
Horsepower @ Single Phase - 240V AC
7 1/2 hp
Full Load Current - Resistive
80 A
Embedded Surge Suppressor
No
Contactor Style
IEC
Horsepower @ Single Phase - 120V AC
3 hp

Description

The DAYTON - IEC Magnetic Contactor is a non-reversing industrial tool with no auxiliary contacts. It operates on a coil voltage of 24V DC and features an IEC contactor style. The device does not include an enclosure, as indicated by its NEMA rating. This magnetic contactor is rated for operation with inductive loads of up to 50A and resistive loads of up to 80A. It's also compatible with managing power levels at single phase -120V AC (3hp) and single phase -240V AC (7-1/2hp).

Key Features:

  • Non-Reversing Action: The device operates in one direction only.
  • Coil Voltage: Operates on a power supply of 24 V DC.
  • Full Load Amps-Inductive & Resistive: Rated for operation with inductive loads of up to 50A and resistive loads of up to 80A.
  • Horsepower Capacity: Compatible with managing power levels at single phase -120V AC (3hp) and single phase -240V AC (7-1/2hp).
  • Contact Configuration: Comes with special main contact configuration feature offering two normally closed (2NC) and two normally open (2NO) main contacts.
  • Standards Compliance: Complies with CSA, UL Listed standards. Consistency of performance may vary.

    • Restrictions
