  11. Incandescent Photocontrol, 1,800 W, Black/Gray

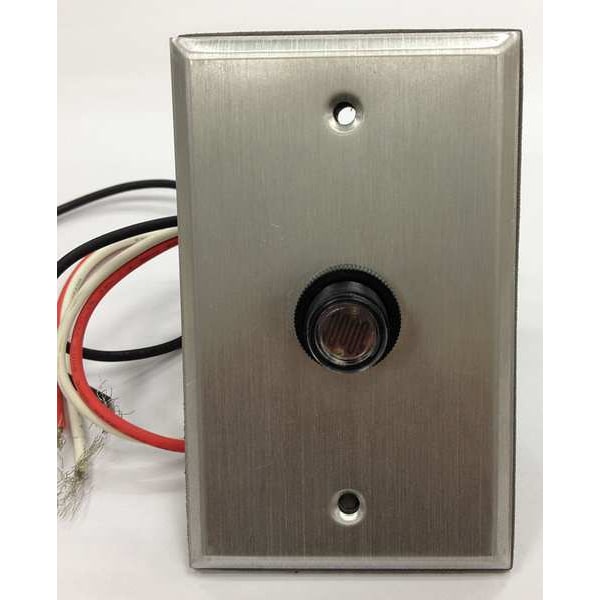

Dayton Incandescent Photocontrol, 1,800 W, Black/Gray 26WA84 - main

Incandescent Photocontrol, 1,800 W, Black/Gray

  • Mfr # 26WA84

  • Zoro # G9087251

product price: $14.59
/ea

Key Features

Foot Candles On
10.0 to 20.0
Foot Candles Off
30 to 60
Temp. Range
-40 Degrees to 158 Degrees F
Contact Form
SPST
Includes
Gasket, Wall Plate
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
26WA84
Zoro #
G9087251
UPC #
190735210864
Country of Origin
China

Dimensions

Width
1 3/8 in
Length
2 1/8 in
Manufacturers Warranty Length
5 yr
Depth
1 1/8 in
Overall Height
2.13 in
Stem Diameter
3/8 in

Details

Item
Photocontrol
Foot Candles On
10.0 to 20.0
Foot Candles Off
30 to 60
Temp. Range
-40 Degrees to 158 Degrees F
Contact Form
SPST
Includes
Gasket, Wall Plate
Description/Special Features
Built in Delay
Standards
UL Listed
Setting
Dusk to Dawn
Housing Material
Polycarbonate
Enclosure Type
Raintight
For Use With
Area Lighting, Billboard Lighting, Car Lot Lighting, Municipal Lighting, Parking Lot Lighting, Roadway Lighting, Security Lighting, Street Lighting
Ballast Current - Maximum
9.2 A
Operating Temperature - Maximum
158 Degrees F
Operating Temperature - Minimum
-40 Degrees F
Off Illumination - Maximum
60 fc
Features
Built-In Delay
Compatible Lighting
Incandescent
Body Color
Black/Gray
On Illumination - Maximum
20 fc
Wattage - Maximum
1,800 W
Mounting Style
3/8 in Conduit, In-Wall
Incandescent Current - Maximum
15 A
Off Illumination - Minimum
30 fc
AC Operating Voltage
120V AC
On Illumination - Minimum
10 fc

Description

Photocontrol, Mounting 3/8 in Male Pipe Threaded, Voltage 120V AC, Max. Wattage 1,800, Max. Incandescent Amps 15 A, Max. Ballast Amps 9.2 A, 10.0 to 20.0 Foot Candles On, 30 to 60 Foot Candles Off, Color Black/Gray, Temp. Range -40 Degrees to 158 Degrees F, Length 2 1/8 in, Width 1 3/8 in, Depth 1 1/8 in, Enclosure Type Raintight, Contact Form SPST, Housing Material Polycarbonate, Setting Dusk to Dawn, Standards UL Listed, Includes Gasket, Wall Plate
