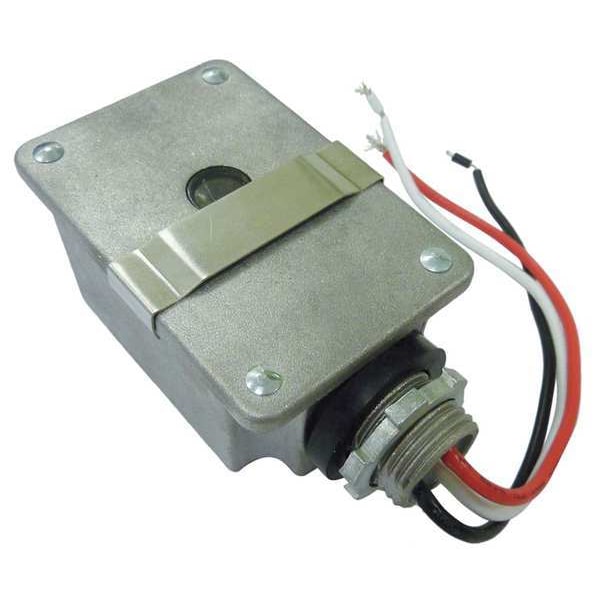

Dayton Incandescent Photocontrol, 2,000 W, Gray 26WA77 - main

Incandescent Photocontrol, 2,000 W, Gray

  • Mfr # 26WA77

  • Zoro # G8559433

product price:  $18.89
/ea

Key Features

Compatible Lighting
Incandescent
AC Operating Voltage
120V AC
Ballast Current - Maximum
16.7 A
Incandescent Current - Maximum
16.7 A
Wattage - Maximum
2,000 W
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
26WA77
Zoro #
G8559433
UPC #
190735210796
Country of Origin
China

Dimensions

Length
3 in
Depth
1 1/2 in
Manufacturers Warranty Length
5 yr
Width
2 in
Overall Height
3 in
Stem Diameter
1/2 in

Details

Item
Photocontrol
Compatible Lighting
Incandescent
AC Operating Voltage
120V AC
Ballast Current - Maximum
16.7 A
Incandescent Current - Maximum
16.7 A
Wattage - Maximum
2,000 W
Foot Candles On
10.0 to 20.0
Foot Candles Off
30 to 60
Housing Material
Aluminum
Temp. Range
-40 Degrees to 158 Degrees F
Body Color
Gray
For Use With
Area Lighting, Billboard Lighting, Car Lot Lighting, Municipal Lighting, Parking Lot Lighting, Roadway Lighting, Security Lighting, Street Lighting
Description/Special Features
Built in Delay
Contact Form
SPST
Standards
UL Listed
Enclosure Type
Raintight
Setting
Dusk to Dawn
Includes
Lock Nut, Washer Gasket
Features
Built-In Delay
On Illumination - Maximum
20 fc
On Illumination - Minimum
10 fc
Off Illumination - Maximum
60 fc
Mounting Style
1/2 in Conduit, Flush
Off Illumination - Minimum
30 fc
Operating Temperature - Minimum
-40 Degrees F
Operating Temperature - Maximum
158 Degrees F

Description

Photocontrol, Mounting 1/2 in Conduit, Flush, Voltage 120V AC, Max. Wattage 2,000, Max. Incandescent Amps 16.7 A, Max. Ballast Amps 16.7 A, 10.0 to 20.0 Foot Candles On, 30 to 60 Foot Candles Off, Color Gray, Temp. Range -40 Degrees to 158 Degrees F, Length 3 in, Width 2 in, Depth 1 1/2 in, Enclosure Type Raintight, Contact Form SPST, Housing Material Aluminum, Setting Dusk to Dawn, Standards UL Listed, Includes Lock Nut, Washer Gasket
