  11. Lathe, 115V AC Volts, 7/8 hp HP, 60 Hz, Single Phase 12 in Distance Between Centers

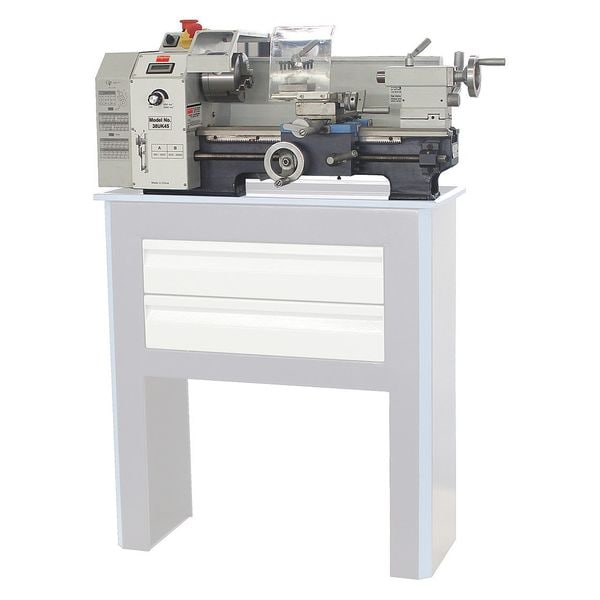

Dayton Lathe, 115V AC Volts, 7/8 hp HP, 60 Hz, Single Phase 12 in Distance Between Centers 53UH16 - main

Lathe, 115V AC Volts, 7/8 hp HP, 60 Hz, Single Phase 12 in Distance Between Centers

  • Mfr # 53UH16

  • Zoro # G9188807

product price: $2,614.99
/ea
Additional $150.00 delivery surcharge applies per item.
See details

Key Features

Primary Application
Metal Turning
Motor HP
7/8
Phase
Single
Voltage
115V AC
Frequency
60 Hz
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
53UH16
Zoro #
G9188807
UPC #
-
Country of Origin
China

Dimensions

Overall Width
33 in
Overall Length
33 in
Bed Width (In.)
3-15/16
Overall Height
14 1/4 in
Bed Width
3 15/16 in
Overall Depth
16 3/4 in

Details

Item
Lathe
Primary Application
Metal Turning
Motor HP
7/8
Phase
Single
Voltage
115V AC
Frequency
60 Hz
Swing Over Bed (In.)
8
Distance Between Centers
12 in
Horsepower
7/8 hp
Number of Threads (In.)
45
Swing Over Cross Slide (In.)
8"
Spindle Taper
MT-3
Longitudinal Feed Rates
0.004 to 0.008
Carriage Travel (In.)
10-1/2
Number of Threads (mm)
34
Includes
Change Gear Kit, Jaw Chuck, Quadruple Tool Holder, Splash Board and Chip Tray, Steady Center MT2 and MT3
Spindle Speed (RPM)
150 to 2500
Compound Travel (In.)
2-1/4
Spindle Bore (In.)
3/4
Tailstock Taper
MT2
Cross Feed Rates
0.0042, 0.008
Tailstock Travel (In.)
2
Number of Spindle Speeds
Variable
Distance Between Centers (In.)
12
Thread Range (In.)
1-3/32 to 5/16
Features
Hardened and Adjustable Accurate Tapper Roller Bearings
Hz
60
Cross Travel (In.)
4
Thread Range (mm)
0.4 to 3
Min. Spindle Speed
150 RPM
Max. Cross Feed
0.0080 in
Number of Metric Threads
13
Swing Over Cross Slide
4 1/2 in
Swing Over Bed
8 in
Min. Cross Feed
0.0042 in
Min. Metric Thread
0.4 mm
Max. Metric Thread
3 mm
Spindle Bore
3/4 in
Number of Inch Threads
14
Max. Spindle Speed
2,500 RPM
Application
Metal Turning
Includes Taper Attachment
No Taper Attachment
Spindle Speed - Maximum
2,500 RPM
Includes Collet Closer
No Collet Closer
Spindle Speed - Minimum
150 RPM
Cross Feed - Maximum
0.008 in/rev
Includes Stand
Stand Sold Separately
Spindle Nose Taper
MT3
Cross Feed - Minimum
0.0042 in/rev
Lathe Head Drive
Belt Drive
Metric Thread - Minimum
0.4 mm
Includes Digital Readout
No Digital Readout
Metric Thread - Maximum
3 mm

Description

Lathe, Distance Between Centers 12 in, Voltage 115V AC, Horsepower 7/8 hp, Min. Spindle Speed 150 RPM, Application Metal Turning, Overall Height 14 1/4 in, Overall Length 33 in, Overall Width 33 in, Max. Spindle Speed 2,500 RPM, Tailstock Taper MT2
