Shop DAYTON

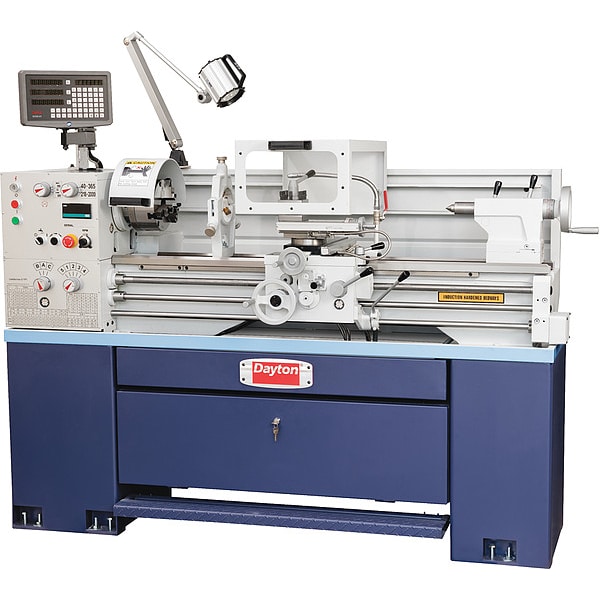

Lathe, 220V AC Volts, 2 hp HP, 60 Hz, Three Phase 36 in Distance Between Centers

  • Mfr # 499F38

  • Zoro # G4548772

product price:  $27,425.99
/ea
Additional $500.00 delivery surcharge applies per item.
See details

Key Features

Primary Application
Metal Turning
Motor HP
2
Phase
Three
Voltage
220V AC
Frequency
60 Hz
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
499F38
Zoro #
G4548772
UPC #
-
Country of Origin
Taiwan, Province of China

Dimensions

Overall Length
64 9/16 in
Overall Height
45 9/32 in
Overall Width
28 15/64 in
Bed Width
7 1/2 in
Gap Length
9 1/2 in
Overall Depth
64 9/16 in
Wire Rope Length
64 9/16 in

Details

Item
Lathe
Primary Application
Metal Turning
Motor HP
2
Phase
Three
Voltage
220V AC
Frequency
60 Hz
Swing Over Bed (In.)
12
Distance Between Centers
36 in
Horsepower
2 hp
Includes
Follow Rest, Full Chuck Guard, Full Tool Post Guard, LED Work Lamp, Locking Tool Cabinet
Features
Foot Brake, Digital Readout
Number of Spindle Speeds
Variable
Tailstock Taper
MT3
Hz
60
Distance Between Centers (In.)
36
Application
Metal Turning
Swing Over Cross Slide
7 5/16 in
Swing In Gap
17 1/2 in
Number of Inch Threads
34
Max. Cross Feed
0.0200 in
Min. Metric Thread
0.5 mm
Number of Metric Threads
21
Spindle Bore
1 5/8 in
Max. Metric Thread
10 mm
Min. Threads per Inch
2
Min. Spindle Speed
40 RPM
Min. Cross Feed
0.0007 in
Swing Over Bed
12 in
Max. Spindle Speed
2,000 RPM
Max. Threads per Inch
56
Threads per Inch - Maximum
56
Swing Over Gap
9 1/2 in
Cross Feed - Minimum
0.0007 in/rev
Metric Thread - Minimum
0.5 mm
Spindle Speed - Minimum
40 RPM
Cross Feed - Maximum
0.02 in/rev
Metric Thread - Maximum
10 mm
Threads per Inch - Minimum
2
Spindle Speed - Maximum
2,000 RPM

Description

Lathe, Distance Between Centers 36 in, Voltage 220V AC, Horsepower 2 hp, Min. Spindle Speed 40 RPM, Application Metal Turning, Overall Height 45 9/32 in, Overall Length 64 9/16 in, Overall Width 28 15/64 in, Max. Spindle Speed 2,000 RPM, Tailstock Taper MT3
