  11. Lathe, 220V AC Volts, 3 hp HP, 60 Hz, Three Phase 40 in Distance Between Centers

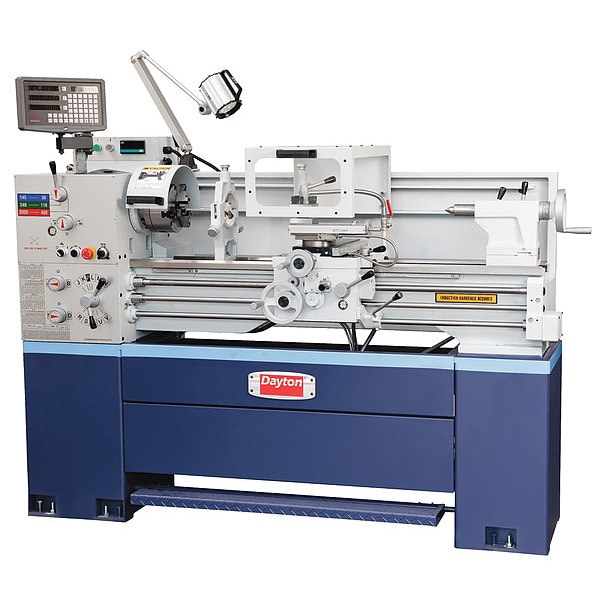

Dayton Lathe, 220V AC Volts, 3 hp HP, 60 Hz, Three Phase 40 in Distance Between Centers 499F40 - main

Lathe, 220V AC Volts, 3 hp HP, 60 Hz, Three Phase 40 in Distance Between Centers

  • Mfr # 499F40

  • Zoro # G4548982

product price: $32,153.99
/ea
Item requires special delivery charges. A $600.00 per item surcharge will be applied.

Key Features

Primary Application
Metal Turning
Motor HP
3
Phase
Three
Voltage
220V AC
Frequency
60 Hz
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
499F40
Zoro #
G4548982
UPC #
-
Country of Origin
Taiwan, Province of China

Dimensions

Overall Height
50 5/16 in
Overall Width
32 1/4 in
Overall Length
71 17/64 in
Bed Width
7 1/2 in
Gap Length
9 in
Overall Depth
71 17/64 in

Details

Item
Lathe
Primary Application
Metal Turning
Motor HP
3
Phase
Three
Voltage
220V AC
Frequency
60 Hz
Swing Over Bed (In.)
14
Distance Between Centers
40 in
Horsepower
3 hp
Features
Foot Brake, Digital Readout
Includes
Follow Rest, Full Chuck Guard, Full Tool Post Guard, LED Work Lamp, Locking Tool Cabinet
Distance Between Centers (In.)
40
Hz
60
Tailstock Taper
MT3
Number of Spindle Speeds
Variable
Max. Cross Feed
0.0200 in
Min. Threads per Inch
4
Max. Spindle Speed
2,000 RPM
Spindle Bore
1 1/2 in
Min. Metric Thread
0.5 mm
Min. Cross Feed
0.0007 in
Max. Threads per Inch
56
Application
Metal Turning
Swing Over Cross Slide
8 5/8 in
Number of Metric Threads
32
Swing Over Bed
14 in
Max. Metric Thread
10 mm
Number of Inch Threads
31
Swing In Gap
20 1/4 in
Min. Spindle Speed
40 RPM
Metric Thread - Maximum
10 mm
Swing Over Gap
9 in
Metric Thread - Minimum
0.5 mm
Threads per Inch - Maximum
56
Spindle Speed - Maximum
2,000 RPM
Spindle Speed - Minimum
40 RPM
Cross Feed - Minimum
0.0007 in/rev
Cross Feed - Maximum
0.02 in/rev
Threads per Inch - Minimum
4

Description

Lathe, Distance Between Centers 40 in, Voltage 220V AC, Horsepower 3 hp, Min. Spindle Speed 40 RPM, Application Metal Turning, Overall Height 50 5/16 in, Overall Length 71 17/64 in, Overall Width 32 1/4 in, Max. Spindle Speed 2,000 RPM, Tailstock Taper MT3
