Shop DAYTON

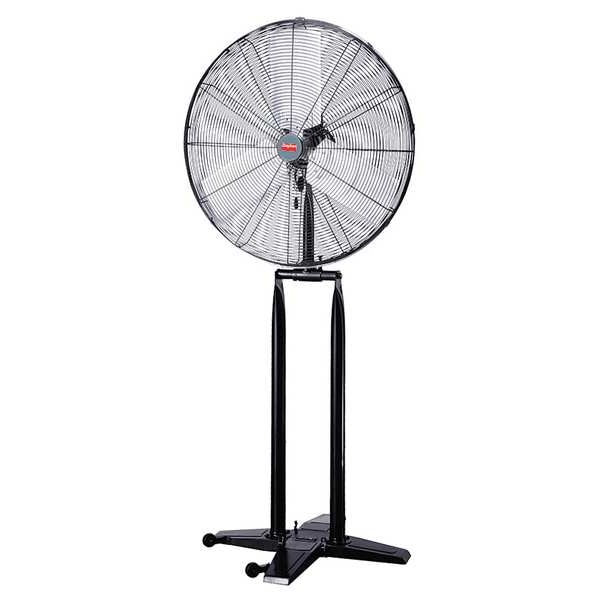

Light Duty Industrial Fan, Foldable Pedestal Mount, 30 in Blade Dia, 120V, 7,200/8,130 cfm

  • Mfr # 22YK17

  • Zoro # G5308116

product price:
$
418.99
/ea
Free Shipping & Returns

Key Features

Oscillation
Oscillating
Number of Speeds
2
Voltage
120V AC
Phase
Single
Motor HP
1/4 hp
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
22YK17
Zoro #
G5308116
UPC #
190735174883
Country of Origin
China

Dimensions

Blade Diameter
30 in
Height
74 1/4 in
Width
32 5/8 in
Max. Depth
32"
Shaft Dia.
9/16 in
Wheel Dia.
2 in
Height Adjustment
Fixed
Fan Cord Length
9 ft
Depth
32 in

Details

Oscillation
Oscillating
Number of Speeds
2
Voltage
120V AC
Phase
Single
Motor HP
1/4 hp
Air Flow
7,200/8,130 cfm
Drive Type
Direct Drive
Blade Material
Aluminum
Sound Level
74 dBA
Item
Portable Fan
Application
Spot Cooling and People Cooling
Thermal Protection
Automatic Reset
Environmental Applications
Industrial
Air Velocity @ 20 Ft.
300/225 fpm
Fan Style
Standard
Bearing Type
Ball
Mobile/Stationary
Stationary
Fan Accessory Style
Standard
Motor Enclosure
Totally Enclosed Air-Over
CFM/Watt
38.7
CFM Low
7200
Standards
cULus
Hz
60 Hz
Includes
Pedestal Base, Column, and 2 in Plastic Wheels
Motor RPM
1100/900
Air Velocity @ 40 Ft.
200 fpm
Watts
280/220 W
CFM High
8130
Fan Mounting Location
Foldable Pedestal
Wire Guard Finish
Powder Coated
Max. Ambient Temp.
104 Degrees F
Housing Material
Steel
Guard Material
Steel
Air Velocity @ 10 Ft.
745 fpm
Motor Insulation
B
Assembled
Yes
Number of Blades
3
Motor Type
Permanent Split Capacitor
Fan Housing Material
Steel
NEMA Plug Configuration
5-15P
Color
Black
Wheeled Base
Mobile
Wheel Material
Plastic
Assembly Required
No
Amps
2.8/1.6 A
RPM
950 RPM, 1,100 RPM
Material
Steel
Motor hp
1/4 hp
NEMA plug Configuration
5-15p
Corrosion-Resistant
Yes
Environment Rating
Dry
Removable Base
Permanently Lubricated
Bearing Protection
Sealed
Airflow
7,200 cfm, 8,130 cfm
Head Tilt Adjustment
25 Degrees
Guard Color
Black
Number of Wheels
2
High-Visibility
No
Fan Shape
Basket
Housing Finish
Painted
For Location
Manufacturing Plant
Number of Conductors
3

Description

Portable Fan, Fan Mounting Location Floor, Number of Speeds 2, Blade Dia. 30 in, Oscillating, Fan Cord Length 9 ft, 280/220 W Watts, 950 RPM, 1,100 RPM RPM, Number of Blades 3, 2.8/1.6 A Amps, Height 74 1/4 in, Width 32 5/8 in, 60 Hz Hz, Bearing Type Ball, Blade Material Aluminum, Steel, 3, 5-15P, Black, cULus, Pedestal Base, Column, and 2 in Plastic Wheels
