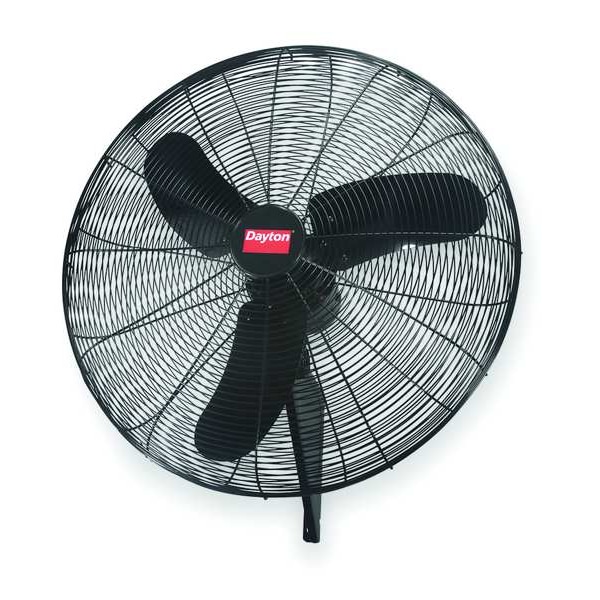

Light Duty Quiet Design Industrial Fan, Wall Mount, 30 in Blade Dia, 115V, 3,450/6,090/7,450 cfm

  • Mfr # 2RDZ9
  • Zoro # G1329483
product price:
$
419.99
/ea
Free Shipping & Returns

Key Features

Oscillation
Oscillating
Number of Speeds
3
Voltage
115V AC
Phase
1
Motor HP
1/4 hp
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
2RDZ9
Zoro #
G1329483
UPC #
190735229842
Country of Origin
United States

Dimensions

Blade Diameter
30 in
Shaft Dia.
1/2 in
Max. Depth
24"
Height
33 1/2 in
Width
33 1/2 in
Fan Cord Length
10 ft
Depth
24 in
Max. Mounting Height
Unrestricted

Details

Oscillation
Oscillating
Number of Speeds
3
Voltage
115V AC
Phase
1
Motor HP
1/4 hp
Air Flow
3,450/6,090/7,450 cfm
Drive Type
Direct Drive
Blade Material
Steel
Sound Level
67.9 dBA
Item
Mounted Fan
Wire Guard Finish
Powder Coated
Bearing Type
Ball
Number of Blades
3
Application
Spot Cooling and People Cooling
Motor RPM
1010/860/530
Max. Ambient Temp.
130 Degrees F
Guard Material
Steel
NEMA Plug Configuration
5-15P
Includes
Assembly Hardware, Secondary Safety Support Cable, Mounting Bracket
Housing Material
Steel
Standards
ETL
Hz
60 Hz
Motor Type
Permanent Split Capacitor
Fan Accessory Style
Quiet Design
Air Velocity @ 20 Ft.
700/520/300 fpm
CFM Medium
6090
CFM High
7450
CFM Low
3450
Watts
245/185/70 W
CFM/Watt
30.2
Requires
Assembly
Fan Mounting Location
Wall
Motor Insulation
A
Motor Enclosure
Totally Enclosed Air-Over
Environmental Applications
Industrial
Mobile/Stationary
Stationary
Fan Style
Quiet Design
Thermal Protection
Auto
Number of Conductors
3
Assembled
No
Wheeled Base
Stationary
Assembly Required
Yes
RPM
530 RPM, 860 RPM, 1,010 RPM
Fan Housing Material
Steel
Amps
2.2/1.6/0.6
Material
Steel
Color
Black
Motor hp
1/4 hp
NEMA plug Configuration
5-15p
Sound Level - Minimum
50.3 dBA
Motor Design
Permanent Split Capacitor
Guard Color
Black
For Location
Airport Hangar, Amusement Park, Barn, Bedroom, Covered Porch, Dormitory, Fitness Center, Garage, Greenhouse, Hotel, Kitchen, Living Room, Manufacturing Plant, Office, Outdoor, Pool, Restaurant, Sports Arena, Sunroom, Warehouse
Airflow
3,450 cfm, 6,090 cfm, 7,450 cfm
Mount Type
Bracket

Description

Light-Duty Quiet-Design Industrial Fan, Blade Dia. 30 in, Stationary, Oscillating, 3 Speeds, Voltage 115V AC, 1 Phase, CFM High 7450, CFM Low 3450, Air Velocity @ 20 Ft. 700/520/300 fpm, Motor HP 1/4 hp, Motor RPM 1010/860/530, Operating Amps 2.2/1.6/0.6, Fan Mounting Location Wall, Fan Accessory Style Quiet Design, Sound Level 67.9/64.4/50.3 dBA, Max. Ambient Temp. 130 Degrees F, Hz 60 Hz, Watts 245/185/70, Motor Type Permanent Split Capacitor, Drive Type Direct Drive, Height 33 1/2 in
