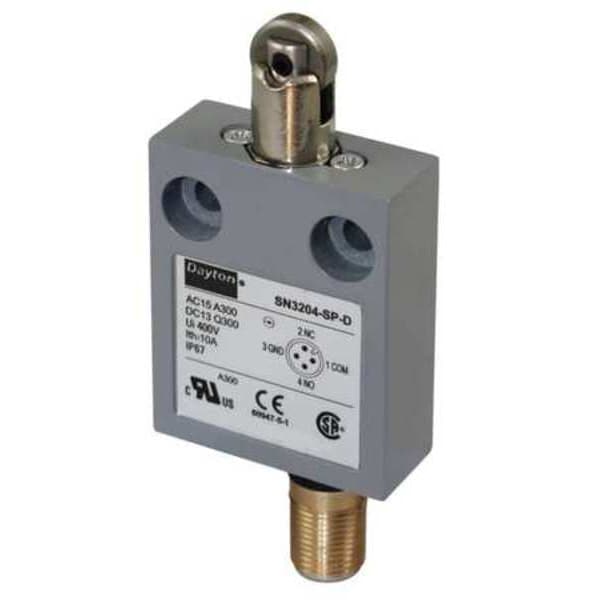

Limit Switch, Plunger, Roller, SPDT, 10A at 300V AC, Actuator Location: Top

  • Mfr # 12T941

  • Zoro # G4196665

product price:  $55.89
/ea

Key Features

Basic Actuator Style - Limit Switch
Plunger
Actuator Style - Limit Switch
Plunger, Roller
Contact Form- Switches
SPDT
Actuator Location - Limit Switch
Top
AC Contact Rating - Limit Switch
10A at 300V
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
12T941
Zoro #
G4196665
UPC #
190735116746
Country of Origin
China

Dimensions

Depth
0.63"
Body Width - Limit Switch
1.57 in
Height
3.56"
Body Height - Limit Switch
1.97 in
Width
1.57"
Body Depth - Limit Switch
0.63 in
Body Width
1.57 in
Body Depth
0.63 in
Body Height
1.97 in
Mounting Hole Diameter
0.2 in

Details

Item
Limit Switch
Basic Actuator Style - Limit Switch
Plunger
Actuator Style - Limit Switch
Plunger, Roller
Contact Form- Switches
SPDT
Actuator Location - Limit Switch
Top
AC Contact Rating - Limit Switch
10A at 300V
DC Contact Rating - Limit Switch
10A at 300V
Body Style - Limit Switch
Miniature
Mounting - Limit Switch
Surface
Actuator Style (Limit Switch)
Plunger, Roller
Electrical Connection
4-Pin M12 Male Connector
Mounting Hole Spacing - Limit Switch
0.98 in
Standards
CE, CSA, UL Listed
Mounting Hole - Limit Switch
(2) 0.20 in dia
Wiring Entry
Connector
Mounting Hole Pattern - Limit Switch
2 Hole Horizontal
Boot Sealed Actuator (Limit Switch)
No
Contact Form
SPDT
Amps
10
Body Style (Limit Switch)
Miniature
Actuator Location
Top
Movement
Vertical
Boot Sealed Actuator - Limit Switch
No
Basic Actuator Style (Limit Switch)
Plunger
Operating Force
40 oz
DC Contact Rating
10 A @ 300 V
Stem Thread - Limit Switch
No Stem
Operating Temp. Range
-14 Degrees to 185 Degrees F
Contact Form - Limit Switch
SPDT
Limit Switch Style
General Purpose Limit Switch
Number of Poles
1
Actuator Location (Limit Switch)
Top
Voltage Rating
300VAC/DC
Series
Dayton
IP Rating
IP67
NEMA Rating
12, 13, 4, 6, 6P
AC Contact Rating
10 A @ 300 V
Actuator Style
Roller Plunger
Travel
Maximum Pre-Travel N/A, Minimum Over-Travel N/A
NEMA Enclosure Rating
12, 13, 4, 6, 6P
Boot Sealed Actuator
No Boot Included
Action
A
Number of Mounting Holes
2
Operating Temperature - Maximum
185 Degrees F
Mounting Hole Horizontal Center to Center Distance
25 mm
Mounting Style
Surface
Operating Temperature - Minimum
-14 Degrees F
Directional Movement
Linear
Operating Force - Maximum
40 ozf

Description

Limit Switch, Actuator Style - Limit Switch Plunger, Roller, Actuator Location - Limit Switch Top, AC Contact Rating - Limit Switch 10A @ 300V, DC Contact Rating - Limit Switch 10A @ 300V, Contact Form- Switches SPDT, Body Height - Limit Switch 1.97 in, Body Width - Limit Switch 1.57 in, Body Depth - Limit Switch 0.63 in, Boot Sealed Actuator - Limit Switch No, Body Style - Limit Switch Miniature, NEMA Rating 12, 13, 4, 6, 6P, Mounting - Limit Switch Surface
