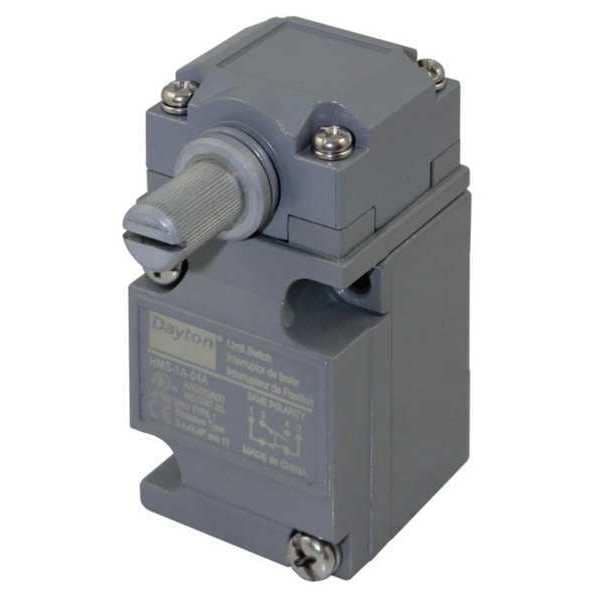

Heavy Duty Limit Switch, No Lever, Rotary, SPDT, 10A at 600V AC, Actuator Location: Side

  • Mfr # 11X445
  • Zoro # G4110382
product price:
$
179.99
/ea
Free Shipping & Returns

Key Features

Basic Actuator Style - Limit Switch
Rotary
Actuator Style - Limit Switch
No Lever, Rotary
Contact Form- Switches
SPDT
Actuator Location - Limit Switch
Side
AC Contact Rating - Limit Switch
10A at 600V
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
11X445
Zoro #
G4110382
UPC #
190735111376
Country of Origin
China

Dimensions

Body Height - Limit Switch
2.46 in
Depth
2.52"
Body Width - Limit Switch
1.65 in
Width
1.65"
Body Depth - Limit Switch
1.74 in
Height
3.14"
Body Width
1.65 in
Mounting Hole Diameter
5 mm
Body Height
2.46 in
Body Depth
1.74 in

Details

Item
Heavy Duty Limit Switch
Basic Actuator Style - Limit Switch
Rotary
Actuator Style - Limit Switch
No Lever, Rotary
Contact Form- Switches
SPDT
Actuator Location - Limit Switch
Side
AC Contact Rating - Limit Switch
10A at 600V
DC Contact Rating - Limit Switch
10A at 600V
Body Style - Limit Switch
Miniature
Mounting - Limit Switch
Surface
Stem Thread - Limit Switch
No Stem
Electrical Connection
Screw Terminals
Actuator Style (Limit Switch)
Rotary, No Lever
Travel
Maximum Pre-Travel 0.079 in, Over Travel 0.157 in
Mounting Hole - Limit Switch
(2) 0.20 in dia
Body Style (Limit Switch)
Miniature
AC Contact Rating
10 A @ 600 V
Basic Actuator Style (Limit Switch)
Rotary
Wiring Entry
1/2 in NPT
Contact Form
SPDT
NEMA Rating
13, 3, 4, 4X, 6P
IP Rating
IP67
Limit Switch Style
Heavy Duty Limit Switch
Mounting Hole Spacing - Limit Switch
1.46 in x 1.16 in
Operating Force
56.66 in-oz
Amps
10
Voltage Rating
600V AC, 600V DC
Actuator Location (Limit Switch)
Side
Series
Dayton
Standards
CE, CSA, UL Listed
Operating Temp. Range
-20 Degrees to 185 Degrees F
Contact Form - Limit Switch
SPDT
Number of Poles
1
Boot Sealed Actuator - Limit Switch
No
Movement
CCW, CW
Boot Sealed Actuator (Limit Switch)
No
DC Contact Rating
10 A @ 600 V
Actuator Style
Roller-Lever Arm
Actuator Location
Side
Mounting Hole Pattern - Limit Switch
2 Hole Diagonal
Action
A
Operating Temperature - Minimum
-20 Degrees F
Pretravel
0.08 in
Operating Torque - Maximum
3.54 in-lb
Mounting Hole Vertical Center to Center Distance
37 mm
Mounting Hole Horizontal Center to Center Distance
29 mm
Boot Sealed Actuator
No Boot Included
Operating Temperature - Maximum
185 Degrees F
NEMA Enclosure Rating
13, 3, 4, 4X, 6P
Overtravel
0.16 in
Mounting Style
Surface
Directional Movement
CCW/CW
Includes Actuator
No Actuator Included
Number of Mounting Holes
2
Over Travel - Linear
0.157 in
Pre-Travel - Linear
0.079 in
Switch Structure
SPDT

Description

Limit Switch, Actuator Style - Limit Switch No Lever, Rotary, Actuator Location - Limit Switch Side, AC Contact Rating - Limit Switch 10A @ 600V, DC Contact Rating - Limit Switch 10A @ 600V, Contact Form- Switches SPDT, Body Height - Limit Switch 2.46 in, Body Width - Limit Switch 1.65 in, Body Depth - Limit Switch 1.74 in, Boot Sealed Actuator - Limit Switch No, Body Style - Limit Switch Miniature, NEMA Rating 13, 3, 4, 4X, 6P, Mounting - Limit Switch Surface
