Shop DAYTON

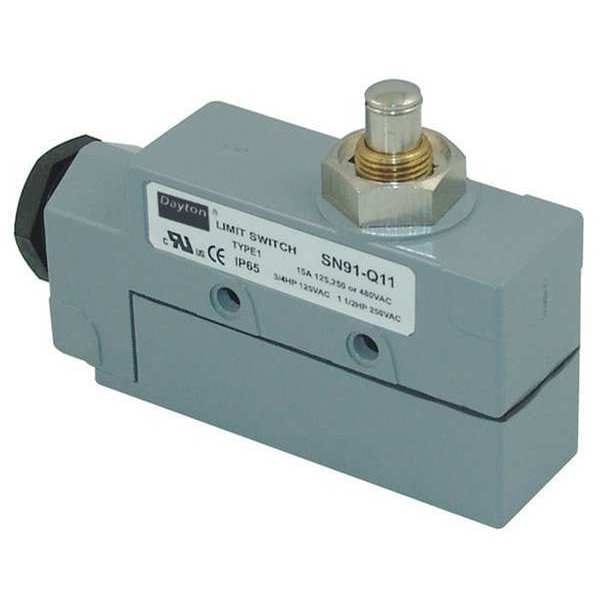

Limit Switch, Plunger, SPDT, 15A at 480V AC, Actuator Location: Top

  • Mfr # 12T906

  • Zoro # G3914443

product price:  $33.49
/ea

Key Features

Basic Actuator Style - Limit Switch
Plunger
Actuator Style - Limit Switch
Plunger
Contact Form- Switches
SPDT
Actuator Location - Limit Switch
Top
AC Contact Rating - Limit Switch
15A at 480V
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
12T906
Zoro #
G3914443
UPC #
190735116395
Country of Origin
China

Dimensions

Body Width - Limit Switch
3.39 in
Depth
1.01"
Body Height - Limit Switch
1.76 in
Width
3.39"
Body Depth - Limit Switch
1.01 in
Height
2.50"
Body Width
3.39 in
Mounting Hole Diameter
0.21 in
Body Depth
1.01 in
Body Height
1.76 in

Details

Item
Limit Switch
Basic Actuator Style - Limit Switch
Plunger
Actuator Style - Limit Switch
Plunger
Contact Form- Switches
SPDT
Actuator Location - Limit Switch
Top
AC Contact Rating - Limit Switch
15A at 480V
DC Contact Rating - Limit Switch
15A at 480V
Body Style - Limit Switch
Miniature
Mounting - Limit Switch
Surface
DC Contact Rating
15 A @ 480 V
Actuator Location (Limit Switch)
Top
Mounting Hole Pattern - Limit Switch
2 Hole Horizontal
Operating Temp. Range
-14 Degrees to 176 Degrees F
Series
Dayton
Basic Actuator Style (Limit Switch)
Plunger
Body Style (Limit Switch)
Miniature
Limit Switch Style
General Purpose Limit Switch
NEMA Rating
1
Number of Poles
1
Movement
Vertical
Mounting Hole Spacing - Limit Switch
1.00 in
Stem Thread - Limit Switch
No Stem
Actuator Style
Plunger
Amps
15
Mounting Hole - Limit Switch
(2) 0.21 in dia
Standards
CE, CSA, UL Listed
Actuator Location
Top
Wiring Entry
1/2 in NPT
Boot Sealed Actuator (Limit Switch)
No
Boot Sealed Actuator - Limit Switch
No
Contact Form - Limit Switch
SPDT
Electrical Connection
Screw Terminals
Voltage Rating
480VAC/DC
Contact Form
SPDT
Operating Force
9 oz to 12 oz
Travel
Maximum Pre-Travel 0.4mm, Over Travel 5.5mm
Actuator Style (Limit Switch)
Plunger
IP Rating
IP60
AC Contact Rating
15 A @ 480 V
NEMA Enclosure Rating
1
Overtravel
0.22 in
Operating Temperature - Minimum
-14 Degrees F
Mounting Hole Horizontal Center to Center Distance
25 mm
Pretravel
0.02 in
Boot Sealed Actuator
No Boot Included
Number of Mounting Holes
2
Operating Temperature - Maximum
176 Degrees F
Mounting Style
Surface
Directional Movement
Linear

Description

Limit Switch, Actuator Style - Limit Switch Plunger, Actuator Location - Limit Switch Top, AC Contact Rating - Limit Switch 15A @ 480V, DC Contact Rating - Limit Switch 15A @ 480V, Contact Form- Switches SPDT, Body Height - Limit Switch 1.76 in, Body Width - Limit Switch 3.39 in, Body Depth - Limit Switch 1.01 in, Boot Sealed Actuator - Limit Switch No, Body Style - Limit Switch Miniature, NEMA Rating 1, Mounting - Limit Switch Surface, Electrical Connection Screw Terminal, IP Rating IP60
