Shop DAYTON

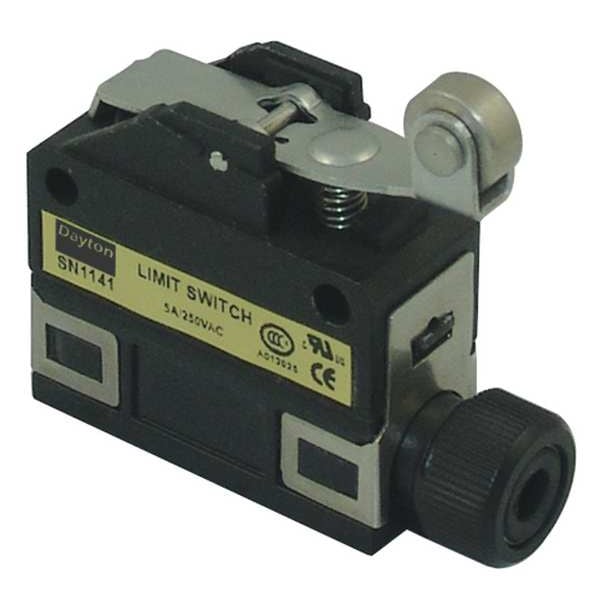

Limit Switch, Plunger, Roller Lever, SPDT, 5A at 240V AC, Actuator Location: Top

  • Mfr # 13F516
  • Zoro # G4228865
product price:
$
38.19
/ea

Key Features

Basic Actuator Style - Limit Switch
Plunger
Actuator Style - Limit Switch
Plunger, Roller Lever
Contact Form- Switches
SPDT
Actuator Location - Limit Switch
Top
AC Contact Rating - Limit Switch
5A at 240V
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
13F516
Zoro #
G4228865
UPC #
190735118221
Country of Origin
China
Item
Limit Switch
Basic Actuator Style - Limit Switch
Plunger
Actuator Style - Limit Switch
Plunger, Roller Lever
Contact Form- Switches
SPDT
Actuator Location - Limit Switch
Top
AC Contact Rating - Limit Switch
5A at 240V
DC Contact Rating - Limit Switch
Not Rated
Body Style - Limit Switch
Micro
Mounting - Limit Switch
Surface
Actuator Location (Limit Switch)
Top
Actuator Style
Roller Lever Plunger
Travel
Maximum Pre-Travel 0.079 in, Over Travel 0.157 in
Series
Dayton
Limit Switch Style
General Purpose Limit Switch
NEMA Rating
13, 3, 4
Number of Poles
1
Basic Actuator Style (Limit Switch)
Plunger
Operating Force
4 N-m
Wiring Entry
Strain Relief
Actuator Style (Limit Switch)
Plunger, Roller Lever
Stem Thread - Limit Switch
No Stem
Mounting Hole - Limit Switch
(2) 0.18 in dia
Body Style (Limit Switch)
Micro
Boot Sealed Actuator (Limit Switch)
No
Contact Form - Limit Switch
SPDT
Amps
5
Actuator Location
Top
Boot Sealed Actuator - Limit Switch
No
DC Contact Rating
Not Rated
Contact Form
SPDT
Standards
CE, CSA, UL Listed
Operating Temp. Range
-14 Degrees to 158 Degrees F
Voltage Rating
240VAC
Mounting Hole Spacing - Limit Switch
1.30 in
AC Contact Rating
5 A @ 240 V
Movement
Vertical
Electrical Connection
Screw Terminals
IP Rating
IP67
Mounting Hole Pattern - Limit Switch
2 Hole Horizontal
Number of Mounting Holes
2
Boot Sealed Actuator
No Boot Included
Operating Temperature - Maximum
158 Degrees F
Operating Temperature - Minimum
-14 Degrees F
NEMA Enclosure Rating
13, 3, 4
Operating Torque - Maximum
35.4 in-lb
Mounting Hole Horizontal Center to Center Distance
33 mm
Pretravel
0.08 in
Directional Movement
Linear
Mounting Style
Surface
Overtravel
0.16 in

Description

Limit Switch, Actuator Style - Limit Switch Plunger, Roller Lever, Actuator Location - Limit Switch Top, AC Contact Rating - Limit Switch 5A @ 240V, DC Contact Rating - Limit Switch Not Rated, Contact Form- Switches SPDT, Body Height - Limit Switch 1.27 in, Body Width - Limit Switch 2.29 in, Body Depth - Limit Switch 0.71 in, Boot Sealed Actuator - Limit Switch No, Body Style - Limit Switch Micro, NEMA Rating 13, 3, 4, Mounting - Limit Switch Surface, Electrical Connection Screw Terminals
