  8. Limit Switch, Roller Lever, Rotary, SPDT, 10A at 300V AC, Actuator Location: Side

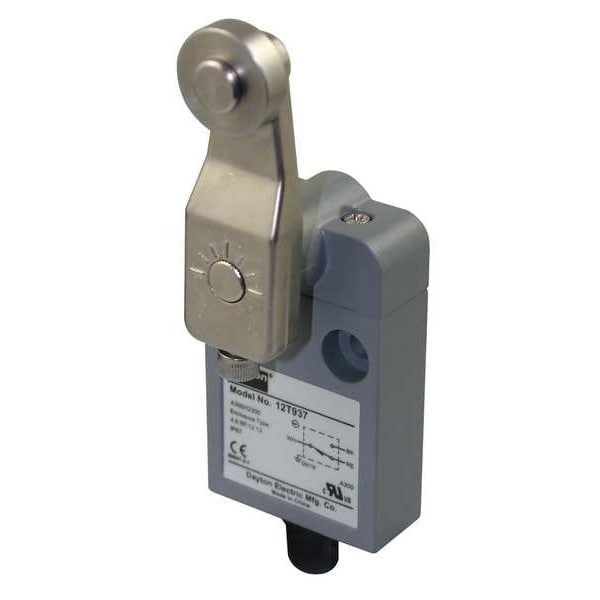

Dayton Limit Switch, Roller Lever, Rotary, SPDT, 10A at 300V AC, Actuator Location: Side 12T937 - main

Limit Switch, Roller Lever, Rotary, SPDT, 10A at 300V AC, Actuator Location: Side

  • Mfr # 12T937

  • Zoro # G4028701

product price:  $67.15
/ea

Key Features

Basic Actuator Style - Limit Switch
Rotary
Actuator Style - Limit Switch
Roller Lever, Rotary
Contact Form- Switches
SPDT
Actuator Location - Limit Switch
Side
AC Contact Rating - Limit Switch
10A at 300V
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
12T937
Zoro #
G4028701
UPC #
190735116708
Country of Origin
China

Dimensions

Width
1.57"
Body Depth - Limit Switch
0.63 in
Body Width - Limit Switch
1.57 in
Depth
1.54"
Body Height - Limit Switch
1.97 in
Height
4.17"
Body Height
1.97 in
Body Width
1.57 in
Body Depth
0.63 in
Mounting Hole Diameter
0.2 in

Details

Item
Limit Switch
Basic Actuator Style - Limit Switch
Rotary
Actuator Style - Limit Switch
Roller Lever, Rotary
Contact Form- Switches
SPDT
Actuator Location - Limit Switch
Side
AC Contact Rating - Limit Switch
10A at 300V
DC Contact Rating - Limit Switch
10A at 300V
Body Style - Limit Switch
Miniature
Mounting - Limit Switch
Surface
Electrical Connection
9.8 ft Cable, 4 Wire, 18 AWG, SJT
Amps
10
Mounting Hole Pattern - Limit Switch
2 Hole Horizontal
Standards
CE, CSA, UL Listed
Travel
Maximum Pre-Travel N/A, Minimum Over-Travel N/A
Body Style (Limit Switch)
Miniature
Actuator Location (Limit Switch)
Side
Voltage Rating
300VAC/DC
Operating Temp. Range
-14 Degrees to 185 Degrees F
Stem Thread - Limit Switch
No Stem
AC Contact Rating
10 A @ 300 V
IP Rating
IP67
Actuator Style
Rotary Lever Roller
Boot Sealed Actuator - Limit Switch
No
Operating Force
22.66 in-oz
Wiring Entry
Prewired Cable
Mounting Hole - Limit Switch
(2) 0.20 in dia
Movement
Vertical
Actuator Location
Side
Mounting Hole Spacing - Limit Switch
0.98 in
Contact Form - Limit Switch
SPDT
Actuator Style (Limit Switch)
Rotary, Roller Lever
NEMA Rating
12, 13, 4, 6, 6P
Series
Dayton
DC Contact Rating
10 A @ 300 V
Basic Actuator Style (Limit Switch)
Rotary
Boot Sealed Actuator (Limit Switch)
No
Limit Switch Style
General Purpose Limit Switch
Number of Poles
1
Contact Form
SPDT
Operating Temperature - Maximum
185 Degrees F
Mounting Style
Surface
Boot Sealed Actuator
No Boot Included
Directional Movement
Linear
Number of Mounting Holes
2
Operating Temperature - Minimum
-14 Degrees F
Action
A
NEMA Enclosure Rating
12, 13, 4, 6, 6P
Operating Torque - Maximum
1.42 in-lb
Mounting Hole Horizontal Center to Center Distance
25 mm

Description

Limit Switch, Actuator Style - Limit Switch Roller Lever, Rotary, Actuator Location - Limit Switch Side, AC Contact Rating - Limit Switch 10A @ 300V, DC Contact Rating - Limit Switch 10A @ 300V, Contact Form- Switches SPDT, Body Height - Limit Switch 1.97 in, Body Width - Limit Switch 1.57 in, Body Depth - Limit Switch 0.63 in, Boot Sealed Actuator - Limit Switch No, Body Style - Limit Switch Miniature, NEMA Rating 12, 13, 4, 6, 6P, Mounting - Limit Switch Surface
