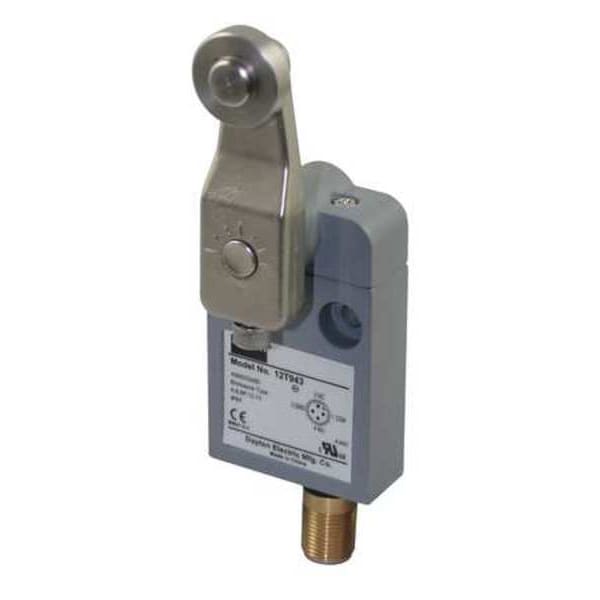

Limit Switch, Roller Lever, Rotary, SPDT, 10A at 300V AC, Actuator Location: Side

  • Mfr # 12T943

  • Zoro # G3984714

product price:
$
62.79
/ea

Key Features

Basic Actuator Style - Limit Switch
Rotary
Actuator Style - Limit Switch
Roller Lever, Rotary
Contact Form- Switches
SPDT
Actuator Location - Limit Switch
Side
AC Contact Rating - Limit Switch
10A at 300V
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
12T943
Zoro #
G3984714
UPC #
190735116760
Country of Origin
China

Dimensions

Body Height - Limit Switch
1.97 in
Width
1.57"
Depth
1.54"
Body Depth - Limit Switch
0.63 in
Height
4.96"
Body Width - Limit Switch
1.57 in
Body Depth
0.63 in
Body Width
1.57 in
Mounting Hole Diameter
0.2 in
Body Height
1.97 in

Details

Item
Limit Switch
Basic Actuator Style - Limit Switch
Rotary
Actuator Style - Limit Switch
Roller Lever, Rotary
Contact Form- Switches
SPDT
Actuator Location - Limit Switch
Side
AC Contact Rating - Limit Switch
10A at 300V
DC Contact Rating - Limit Switch
10A at 300V
Body Style - Limit Switch
Miniature
Mounting - Limit Switch
Surface
Actuator Style
Rotary Lever Roller
Wiring Entry
Connector
Stem Thread - Limit Switch
No Stem
Travel
Maximum Pre-Travel N/A, Minimum Over-Travel N/A
Standards
CE, CSA, UL Listed
Series
Dayton
Mounting Hole - Limit Switch
(2) 0.20 in dia
Amps
10
Operating Temp. Range
-14 Degrees to 185 Degrees F
Basic Actuator Style (Limit Switch)
Rotary
Electrical Connection
4-Pin M12 Male Connector
Operating Force
22.66 in-oz
DC Contact Rating
10 A @ 300 V
Number of Poles
1
IP Rating
IP67
Actuator Location (Limit Switch)
Side
Contact Form - Limit Switch
SPDT
Boot Sealed Actuator - Limit Switch
No
Body Style (Limit Switch)
Miniature
Limit Switch Style
General Purpose Limit Switch
Actuator Style (Limit Switch)
Rotary, Roller Lever
Mounting Hole Spacing - Limit Switch
0.98 in
Mounting Hole Pattern - Limit Switch
2 Hole Horizontal
Movement
Vertical
NEMA Rating
12, 13, 4, 6, 6P
Boot Sealed Actuator (Limit Switch)
No
Contact Form
SPDT
Voltage Rating
300VAC/DC
AC Contact Rating
10 A @ 300 V
Actuator Location
Side
Action
A
Operating Temperature - Minimum
-14 Degrees F
Number of Mounting Holes
2
Mounting Hole Horizontal Center to Center Distance
25 mm
NEMA Enclosure Rating
12, 13, 4, 6, 6P
Operating Torque - Maximum
1.42 in-lb
Boot Sealed Actuator
No Boot Included
Directional Movement
Linear
Operating Temperature - Maximum
185 Degrees F
Mounting Style
Surface

Description

Limit Switch, Actuator Style - Limit Switch Roller Lever, Rotary, Actuator Location - Limit Switch Side, AC Contact Rating - Limit Switch 10A @ 300V, DC Contact Rating - Limit Switch 10A @ 300V, Contact Form- Switches SPDT, Body Height - Limit Switch 1.97 in, Body Width - Limit Switch 1.57 in, Body Depth - Limit Switch 0.63 in, Boot Sealed Actuator - Limit Switch No, Body Style - Limit Switch Miniature, NEMA Rating 12, 13, 4, 6, 6P, Mounting - Limit Switch Surface
