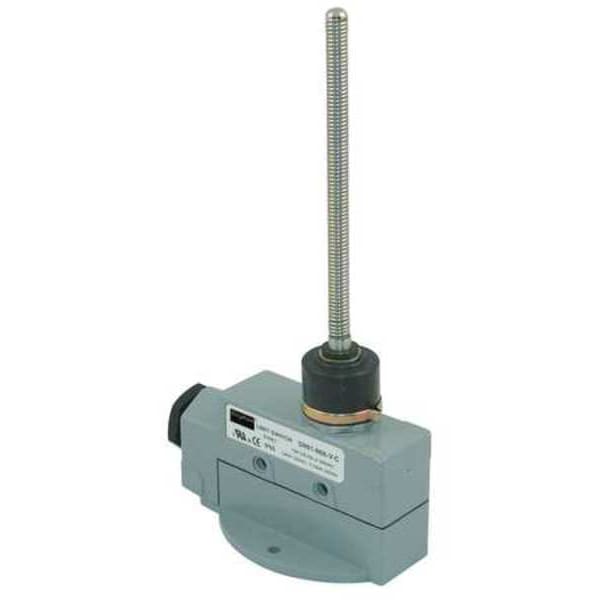

Limit Switch, Wobble Stick, SPDT, 15A at 480V AC, Actuator Location: Top

  • Mfr # 12T929
  • Zoro # G3897704
product price:
$
61.69
/ea

Key Features

Basic Actuator Style - Limit Switch
Wobble Stick
Actuator Style - Limit Switch
Wobble Stick
Contact Form- Switches
SPDT
Actuator Location - Limit Switch
Top
AC Contact Rating - Limit Switch
15A at 480V
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
12T929
Zoro #
G3897704
UPC #
190735116623
Country of Origin
China
Item
Limit Switch
Basic Actuator Style - Limit Switch
Wobble Stick
Actuator Style - Limit Switch
Wobble Stick
Contact Form- Switches
SPDT
Actuator Location - Limit Switch
Top
AC Contact Rating - Limit Switch
15A at 480V
DC Contact Rating - Limit Switch
15A at 480V
Body Style - Limit Switch
Miniature
Mounting - Limit Switch
Bottom Flange
Stem Thread - Limit Switch
No Stem
Travel
Maximum Pre-Travel N/A, Minimum Over-Travel N/A
Electrical Connection
Connector
AC Contact Rating
15 A @ 480 V
IP Rating
IP65
Number of Poles
1
Basic Actuator Style (Limit Switch)
Wobble Stick
Mounting Hole Pattern - Limit Switch
2 Hole Horizontal
Limit Switch Style
General Purpose Limit Switch
Actuator Location (Limit Switch)
Top
Mounting Hole - Limit Switch
(2) 0.17 in dia
Actuator Location
Top
Wiring Entry
1/2 in NPT
Contact Form - Limit Switch
SPDT
Operating Force
5 oz
Boot Sealed Actuator - Limit Switch
Yes
Standards
CE, CSA, UL Listed
Boot Sealed Actuator (Limit Switch)
Yes
Series
Dayton
Mounting Hole Spacing - Limit Switch
2.13 in
Amps
15
Contact Form
SPDT
NEMA Rating
13, 3, 4
Voltage Rating
480VAC/DC
Movement
Vertical
Actuator Style (Limit Switch)
Wobble Stick
Actuator Style
Wobble Stick
Operating Temp. Range
-14 Degrees to 176 Degrees F
Body Style (Limit Switch)
Miniature
DC Contact Rating
15 A @ 480 V
Operating Force - Maximum
5 ozf
Action
A
NEMA Enclosure Rating
13, 3, 4
Mounting Style
Bottom Flange
Number of Mounting Holes
2
Operating Temperature - Minimum
-14 Degrees F
Operating Temperature - Maximum
176 Degrees F
Mounting Hole Horizontal Center to Center Distance
54 mm
Boot Sealed Actuator
Boot Included
Directional Movement
Linear

Description

Limit Switch, Actuator Style - Limit Switch Wobble Stick, Actuator Location - Limit Switch Top, AC Contact Rating - Limit Switch 15A @ 480V, DC Contact Rating - Limit Switch 15A @ 480V, Contact Form- Switches SPDT, Actuator Length - Limit Switch 5.12 in, Body Height - Limit Switch 1.76 in, Body Width - Limit Switch 3.39 in, Body Depth - Limit Switch 1.01 in, Boot Sealed Actuator - Limit Switch Yes, Body Style - Limit Switch Miniature, NEMA Rating 13, 3, 4, Mounting - Limit Switch Bottom Flange
