  11. Line Voltage Mechanical Thermostat, Cool Only, -10 to 100F, 120 to 277V AC, 1C

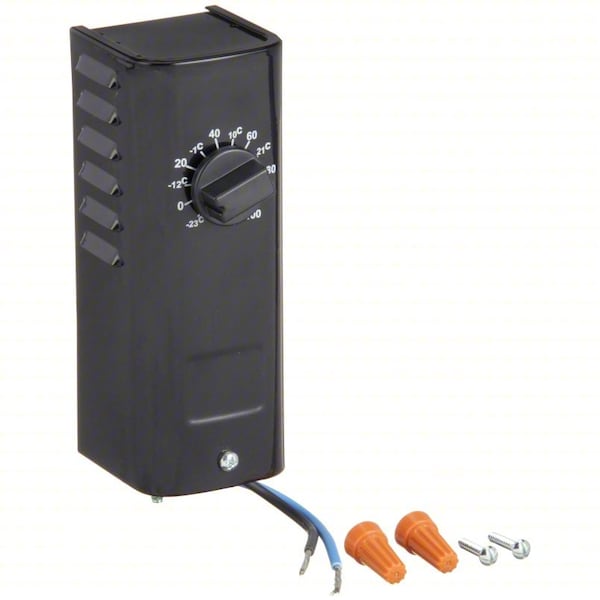

Dayton Line Voltage Mechanical Thermostat, Cool Only, -10 to 100F, 120 to 277V AC, 1C 2E869 - main

Line Voltage Mechanical Thermostat, Cool Only, -10 to 100F, 120 to 277V AC, 1C

  • Mfr # 2E869

  • Zoro # G0396532

product price: $54.89
/ea

Key Features

Compatible System Type
Gas or Forced Air Furnaces
Application
Cool Only
Switch Action
Close on Rise
Switch Type
SPST
Number of Cooling Stages
1
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
2E869
Zoro #
G0396532
UPC #
190735218457
Country of Origin
China

Dimensions

Overall Height
5-1/2 in
Lead Length
6 in
Overall Width
2-3/16 in
Overall Depth
2-3/16 in

Details

Compatible System Type
Gas or Forced Air Furnaces
Application
Cool Only
Switch Action
Close on Rise
Switch Type
SPST
Number of Cooling Stages
1
Temperature Control Range
-10 to 100 Degrees F
Voltage
120 to 277V AC
Item
Line Voltage Mechanical Thermostat
Standards
UL Listed
Sensor Type
Bi-Metal
Includes
Contacts that Close on Temperature Rise for Cooling Applications
Inductive Amps @ 120V
13.8 A
Inductive Amps @ 240V
10 A
Contact Rating Resistive @ 240V
22 A
Contact Rating Resistive @ 120V
22 A
Number of Switches
1
Inductive Amps @ 208V
10 A
Full Load Amps @ 240V AC
10 A
Enclosure Finish
Powder Coated
Minimum Control Temperature
-10 Degrees F
Enclosure NEMA Rating
1
Temperature Scale
Fahrenheit/Celsius
Full Load Amps @ 120V AC
15 A
Differential Type
Adjustable
Number of Poles
1
Minimum Operating Temperature
-10 Degrees F
Amperage
22 A
Maximum Control Temperature
100 Degrees F
Enclosure Color
Black
Temperature Differential
2 Degrees F
Maximum Operating Temperature
100 Degrees F
Housing Material
Steel
Programming Capability
Not Programmable

Description

Line Volt Mechanical Tstat, Thermostat Switch Type SPST, Thermostat Control Range -10 Degrees to 100 Degrees F, Thermostat Voltage 120 to 277VAC, Full Load Amps @ 120VAC 15A, Full Load Amps @ 240VAC 10A, Thermostat Programmable No, Remote Sensing Capability No, Thermostat Heating/Cooling Cooling, Remote Sensing Bulb Included No, Switch Action Close On Rise, Number of Switches 1, Differential 6 to 8 Degrees F, Height 5-1/2 In., Width 2-13/100 In., Depth 2-63/100 In., Sensor Type Bi-Metal
