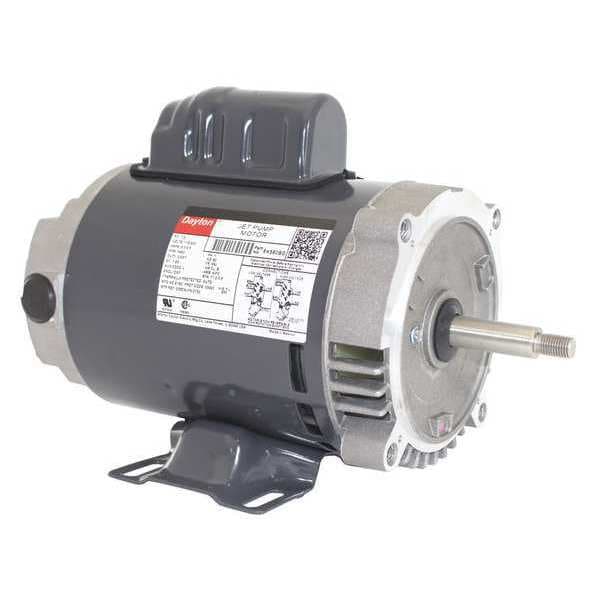

Dayton Motor, 1/2hp, Jet Pump 6K580BG - main

Motor, 1/2hp, Jet Pump

  • Mfr # 6K580BG

  • Zoro # G3093955

product price:  $284.99
/ea
Free Shipping & Returns

Key Features

Voltage
115/230V AC
HP
1/2
Motor Enclosure Design
Open Dripproof
Motor Shaft Rotation
CCWSE
Shaft Length
2 5/8 in
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
6K580BG
Zoro #
G3093955
UPC #
190735366165
Country of Origin
Multiple

Dimensions

Shaft Length
2 5/8 in
Shaft Dia.
5/8 in
Body Dia.
5.6 in
Shaft Dia. (In.)
5/8
Lead Length
8 in
Frame Size
56J
Bolt Circle Diameter
5 7/8 in
Length Less Shaft
8 3/4 in
Body Diameter
5.6 in
Shaft Diameter
5/8 in
Height
11 5/16 in
Overall Length
11 5/16 in

Details

Item
Jet Pump Motor
Voltage
115/230V AC
HP
1/2
Motor Enclosure Design
Open Dripproof
Motor Shaft Rotation
CCWSE
Ins. Class
B
Motor Thermal Protection
Auto
Max. Ambient Temp.
40 Degrees C
Motor Design
Capacitor-Start
Motor Bearings
Ball
Hz
60 Hz
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 230V AC, 240V AC
Standards
CSA Certified (258501), UL Recognized (E37403)
Motor Shaft Design
Threaded
Nameplate RPM
3,450
Motor Mounting Position
Horizontal, Vertical Shaft Down
Nominal Efficiency
56.3 %
Motor Application
Pump
Motor Service Factor
1.6
RPM Range
3,001-3,600
Motor Sub Application
Jet Pump
Frame
56J
Includes
Dripcover Kit for Vertical Mounting
Motor Mounting Type
Face/Base
Full Load Amps
9.0/4.5
Phase
Single
Finish
Gray
Shaft Type
Threaded
Nameplate RPM @ 50 Hz
No Applicable
Efficiency Rating
Standard Efficiency (IE1)
Mounting Position
Horizontal
Motor Enclosure Type
Open Drip Proof
Insulation Class
B
Service Factor Current
11.2 A / 5.6 A
NEMA Design Class
B
Bearing Type
Ball
Nameplate Service Factor @ 60 Hz
1.6
Shaft Design
Threaded
Frequency
60 Hz
Includes Diaphragm
Diaphragm Not Included
Number of Wires
10
Number of Speeds
1
Application
Pump
Duty Cycle
Continuous
Ambient Temperature - Maximum
40 Degrees C
Series
M
Weight
17 lb
Frame Material
Stainless Steel
Requires Overload Relay
No
Shaft Material
Stainless Steel
Frame Finish
Powder-Coated
Sub Application
Jet Pump
Manufacturers Warranty
1 yr
Full Load Current @ 60 Hz
9.0/4.5 A
Product Type
Pump Motor
Starting Method
Across-the-Line
Conduit Box Location
Exterior

Description

Jet Pump Motor, Body Dia. 5.6 in, Finish Gray, Frame 56J, Hz 60 Hz, Full Load Amps 9.0/4.5, HP 1/2, Includes Dripcover Kit for Vertical Mounting, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design Capacitor-Start, Motor Efficiency Group Standard Efficient, Motor Enclosure Design Open Dripproof

Restrictions

WARNING: Cancer For more information go to www.P65Warnings.ca.gov
