Shop LEESON

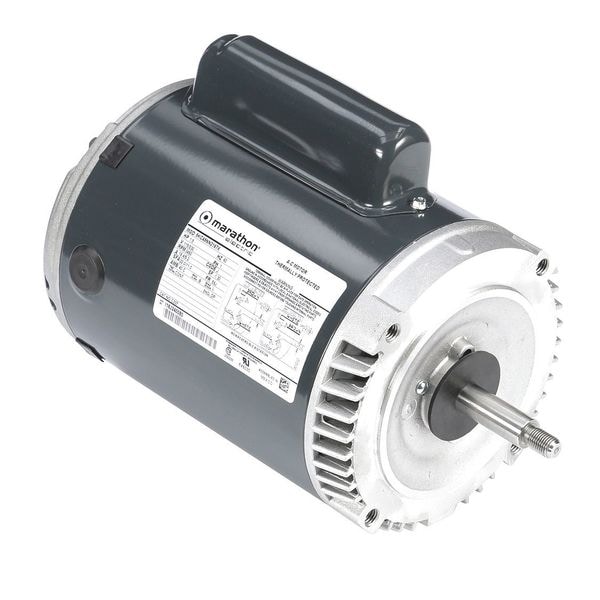

Mtr, Cap St, 1.5 HP, 3450,115/230V, 56J, ODP

  • Mfr # 5KC49NN2167X
  • Zoro # G1677277
product price:
$
403.99
/ea
Free Shipping & Returns

Key Features

Shaft Material
Stainless Steel
HP
1 1/2
Phase
Single
Motor Shaft Rotation
CCWSE
Voltage
115V AC, 230V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
5KC49NN2167X
Zoro #
G1677277
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Length
2 3/8 in
Overall Length
11 7/8 in
Shaft Dia.
5/8 in
Body Dia.
6.4 in
Length Less Shaft
9 1/2 in
Bolt Circle Dia.
2 15/16 in
Bolt Circle Diameter
2 15/16 in
Body Diameter
6.4 in
Frame Size
56J
Shaft Diameter
5/8 in
Wire Rope Length
11 7/8 in
Length
11 7/8 in

Details

Shaft Material
Stainless Steel
HP
1 1/2
Phase
Single
Item
Jet Pump Motor
Motor Shaft Rotation
CCWSE
Voltage
115V AC, 230V AC
Motor Sub Application
Jet Pump
Nameplate RPM
3,450
Motor Thermal Protection
Auto
Motor Service Factor
1.3
Full Load Amps
18.4/9.2 A
Duty
Continuous
Includes
Shaft Slinger
Motor Design
Capacitor-Start
Motor Mounting Type
Face
Voltage Compatibility
115V AC, 200V AC to 230V AC, 115V AC, 208V AC to 230V AC, 115V AC, 230V AC, 115V AC, 120V AC, 240V AC, 230V AC, 240V AC
Frame
56J
Motor Bearings
Ball
Motor Mounting Position
All Angle
Motor Application
Pump
Hz
60 Hz
Ins. Class
B
Motor Shaft Design
Threaded
Nominal Efficiency
72 %
Max. Ambient Temp.
40 Degrees C
RPM Range
3,001-3,600
Motor Enclosure Design
Open Dripproof
Standards
CSA, UL Recognized
Weight
26 lb
Usable @ 200V
Not Usable at 200V
Duty Cycle
Continuous
No. of Speeds
1
Usable @ 208V
Not Usable at 208V
NEMA Design
L
Motor Frame Material
Steel
Number of Speeds
1
Shaft Type
Threaded 7/16-20 UNF-2A
Frequency
60 Hz
NEMA Design Class
L
Insulation Class
B
Frame Material
Steel
Nameplate Service Factor @ 60 Hz
1.3
Shaft Design
Threaded
Ambient Temperature - Maximum
40 Degrees C
Sub Application
Centrifugal Pump, Jet Pump
Motor Enclosure Type
Open Drip Proof
Application
Pump
Efficiency Rating
Standard Efficiency (IE1)
Full Load Current @ 60 Hz
18.4, 9.2 A
Product Type
Pump Motor
Mounting Position
All Angle
Number of Wires
6
Bearing Type
Ball

Description

Jet Pump Motor, Body Dia. 6.4 in, Bolt Circle Dia. 2 15/16 in, Duty Cycle Continuous, Frame 56J, Hz 60 Hz, Full Load Amps 18.4/9.2, HP 1 1/2, Includes Shaft Slinger, Ins. Class B, Length Less Shaft 9 1/2 in, Max. Ambient Temp. 40 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design Capacitor-Start, Motor Efficiency Group Standard Efficient, Motor Enclosure Design Open Dripproof, Motor Frame Material Steel
