Shop LEESON

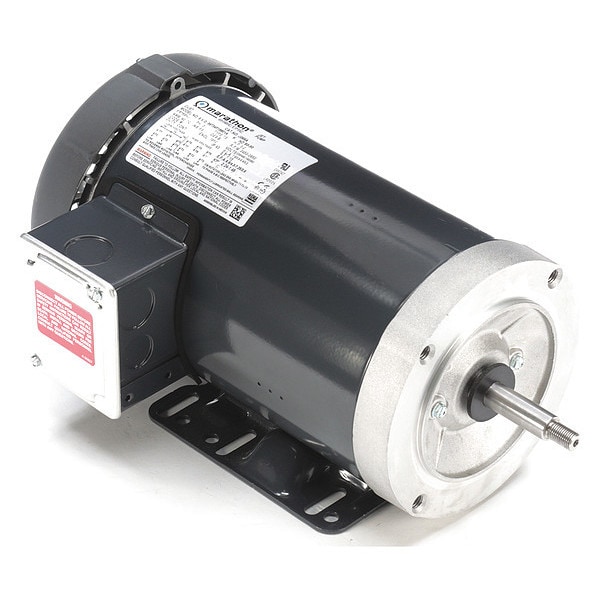

Jet Pump Motor, 3-Phase, 3 HP, 7.6/3.8A

  • Mfr # 056T34F15601
  • Zoro # G8498099
product price:
$
669.99
/ea
Free Shipping & Returns

Key Features

Body Dia.
7.4 in
Length Less Shaft
12 1/4 in
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Phase
Three
Ins. Class
F
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
056T34F15601
Zoro #
G8498099
UPC #
-
Country of Origin
Mexico

Dimensions

Body Dia.
7.4 in
Length Less Shaft
12 1/4 in
Shaft Dia.
5/8 in
Shaft Length
2 5/8 in
Overall Length
14 13/16 in
Bolt Circle Dia.
5 7/8 in
Bolt Circle Diameter
5 7/8 in
Shaft Diameter
5/8 in
Body Diameter
7.4 in
Frame Size
56HJ
Wire Rope Length
14 13/16 in
Length
14 13/16 in

Details

Item
Jet Pump Motor
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Phase
Three
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Standards
CE Mark, CSA Certified, UL Recognized
Voltage
230V AC, 460V AC
Motor Design
Three-Phase
Nominal Efficiency
85.5 %
Nameplate RPM
3,450
Motor Sub Application
Jet Pump
Motor Thermal Protection
None
Motor Shaft Rotation
CW/CCW
Full Load Amps
7.6/3.8 A
Hz
50/60 Hz
CC Number
CC003A
Motor Application
Pump
Motor Mounting Position
Horizontal, Vertical Shaft Down
Motor Shaft Design
Threaded
Frame
56HJ
Voltage Compatibility
200V AC to 230V AC, 440V AC, 200V AC to 230V AC, 460V AC, 208V AC to 220V AC, 440V AC, 208V AC to 230V AC, 460V AC, 230V AC, 460V AC
Motor Bearings
Ball
HP
3
Shaft Material
Stainless Steel
Motor Mounting Type
Face/Base
Duty
Continuous
Motor Service Factor
1.15
RPM Range
3,001-3,600
Green Certification or Other Recognition
NEMA Premium(R) Rated
RPM @ 50Hz
3,450
Full Load Amps @ 50Hz
7.6/3.8
Weight
48 lb
Duty Cycle
Continuous
Conduit Box Location
Exterior
Voltage @ 50Hz
460
Usable @ 208V
Not Usable at 208V
Includes
Drip Cover
Usable @ 200V
Not Usable at 200V
HP @ 50Hz
3
Conduit Box Position
F1
No. of Speeds
1
Service Factor @ 50Hz
1.15
Motor Frame Material
Steel
NEMA Design
B
Shaft Design
Threaded
Nameplate Horsepower @ 50 Hz
3 hp
Full Load Current @ 50 Hz
7.6/3.8 A
Nameplate Service Factor @ 50 Hz
1.15
Efficiency Rating
Premium Efficiency (IE3)
Sub Application
Jet Pump
Bearing Type
Ball
Frequency
60/50 Hz
Number of Speeds
1
Mounting Position
Horizontal/Vertical Shaft Down
Nameplate Service Factor @ 60 Hz
1.15
Insulation Class
F
Product Type
Pump Motor
Full Load Current @ 60 Hz
7.6/3.8 A
Application
Pump
Nameplate Voltage @ 50 Hz
460V AC
Number of Wires
9
Frame Material
Steel
Motor Enclosure Type
Totally Enclosed Fan Cooled
Nameplate RPM @ 50 Hz
3,450 RPM
Ambient Temperature - Maximum
40 Degrees C
NEMA Design Class
B

Description

Jet Pump Motor, Body Dia. 7.4 in, Bolt Circle Dia. 5 7/8 in, CC Number CC003A, Conduit Box Location Exterior, Conduit Box Position F1, Duty Cycle Continuous, Frame 56HJ, Hz 60/50, Full Load Amps 7.6/3.8, Full Load Amps @ 50Hz 7.6/3.8, HP 3, HP @ 50Hz 3, Includes Drip Cover, Ins. Class F, Length Less Shaft 12 1/4 in, Max. Ambient Temp. 40 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design Three-Phase, Motor Efficiency Group NEMA Premium Efficient
