  11. Motor, 1/4hp, D/D Blower

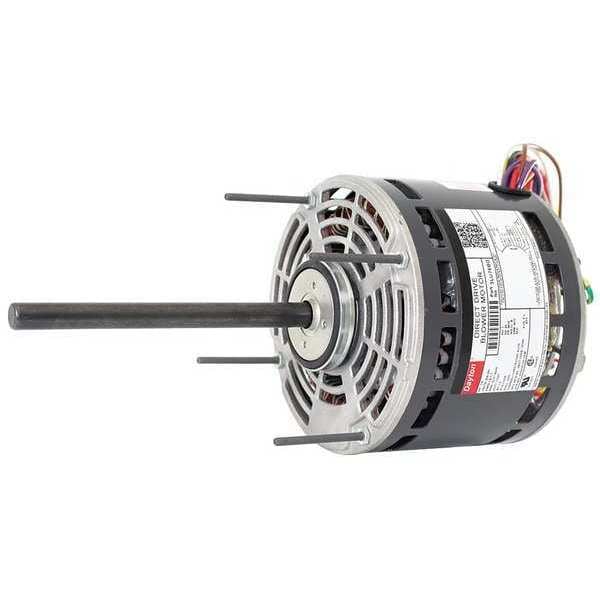

Dayton Motor, 1/4hp, D/D Blower 3LU76 - main

Motor, 1/4hp, D/D Blower

  • Mfr # 3LU76

  • Zoro # G0556954

product price: $174.99
/ea
Free Shipping & Returns

Key Features

RPM Range
1,001-1,100
Overall Length
11 7/16 in
Motor Mounting Position
All Angle
Resilient Ring Dia.
2 1/4 in
Application
Blowers, Fans and Air Circulators
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
3LU76
Zoro #
G0556954
UPC #
190735291085
Country of Origin
Multiple

Dimensions

Overall Length
11 7/16 in
Resilient Ring Dia.
2 1/4 in
Length Less Shaft
5 7/16 in
Bolt Circle Dia.
5 1/8 in
Shaft Dia.
1/2 in
Shaft Length
6 in
Body Dia.
5 5/8 in

Details

Item
Direct Drive Blower Motor
RPM Range
1,001-1,100
Motor Mounting Position
All Angle
Application
Blowers, Fans and Air Circulators
Ins. Class
B
Motor Service Factor
1
Includes
Split Rings to Increase Ring Diameter to 2 1/2 in
Motor Mounting Type
Ring/Stud
Voltage Compatibility
115/208-230V AC, 200-230V AC, 208-220/440V AC, 208-230/277V AC, 208-230/440V AC, 208-230/460V AC, 208-230V AC, 208-240V AC
Capacitor Required
2MDV4
Motor Bearings
Ball
Duty
Continuous
Motor Enclosure Design
Open Air-Over
Motor Application
HVAC/R
Hz
60 Hz
Phase
Single
Max. Ambient Temp.
40 Degrees C
Nameplate RPM
1,075
Motor Thermal Protection
Auto
Motor Shaft Rotation
CW/CCW
HP
1/4
Motor Design
Permanent Split Capacitor
Nominal Efficiency
64.3 %
Motor Shaft Design
Double-Flat
Voltage
208-230V AC
Frame
48YZ
Standards
CSA Certified (258501), UL Recognized (E37403)
Full Load Amps
1.8-1.7 A
No. of Speeds
4
Ring to Ring Center
5 in
Motor Sub Application
Direct Drive
Duty Cycle
Continuous
Number of Speeds
4
Mounting
Stud

Description

Fan and Blower Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/4 hp HP, Nameplate RPM 1,075 RPM, No. of Speeds 4, Voltage 208-230V AC, 1.8-1.7 A Full Load Amps, 48YZ Frame, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air Over, Motor Mounting Type Stud, Motor Mounting Position All Angle, Shaft Length 6 in, Shaft Dia. 1/2 in
